Fluke Calibration 5322A Operator's Manual page 30

5322A
Operators Manual
Item

Output - Shows the selected function and their parameters.

Local or Remote - Shows which of the two control modes is enabled.
Specifications - Shows the accuracy of the output signal or measured parameter. If the Product is

outputting two signals, two accuracy specifications are displayed here. If the Product is not within
specifications, BUSY is shown instead of the specification.
D
Terminals - Shows the active terminals for the selected function.
E
Softkey labels - Shows the labels for the five softkeys below the display.
F
Parameters - Shows auxiliary measurements and parameters for the selected function.
22

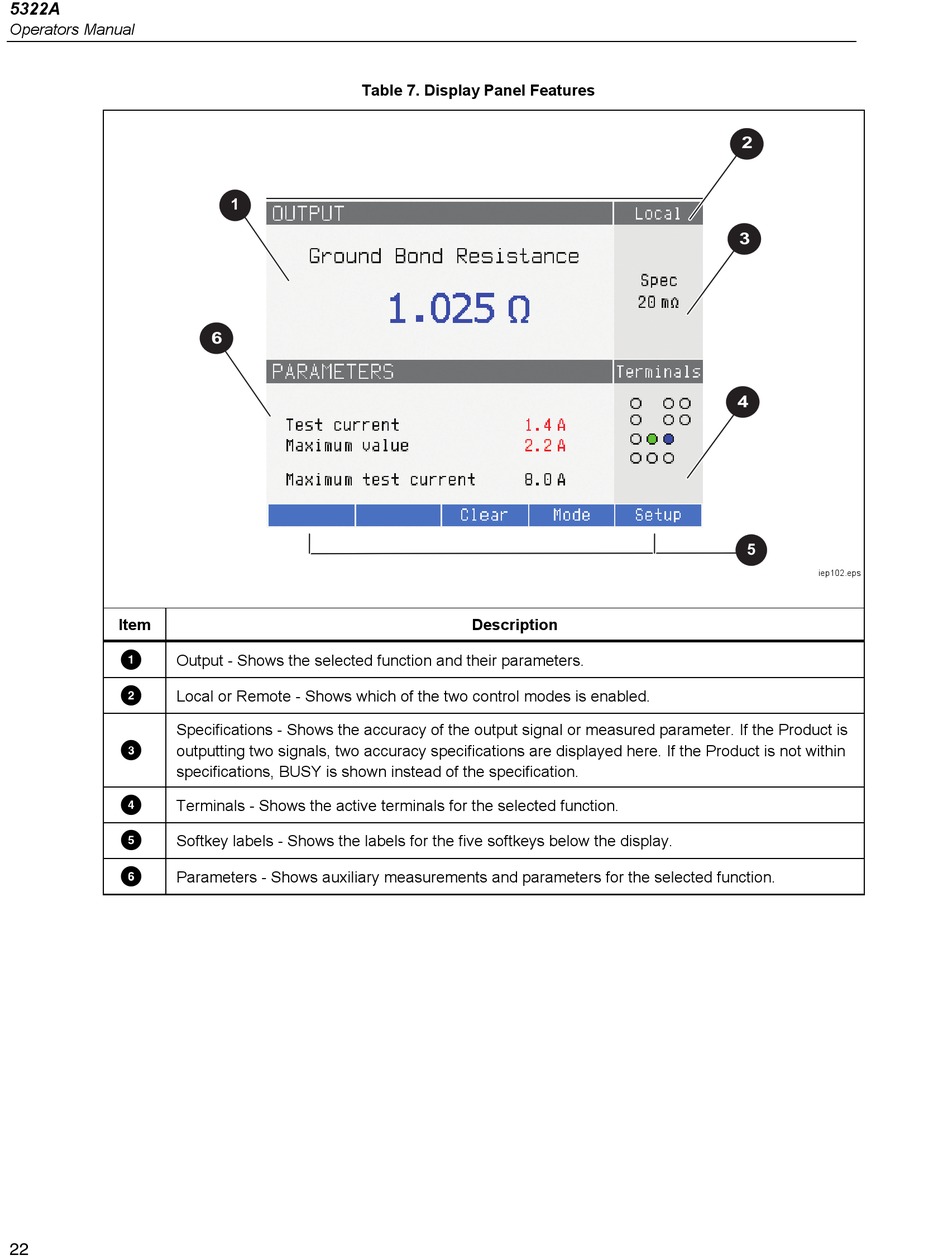

Table 7. Display Panel Features
1
6
Description
2
3
4
5
iep102.eps
