6. Push .
7. Push Start on the DUT.
8. Compare the DUT resistance reading with the resistance in the Product's
9. Push  to disconnect the output terminals from the DUT.
Fluke 6500

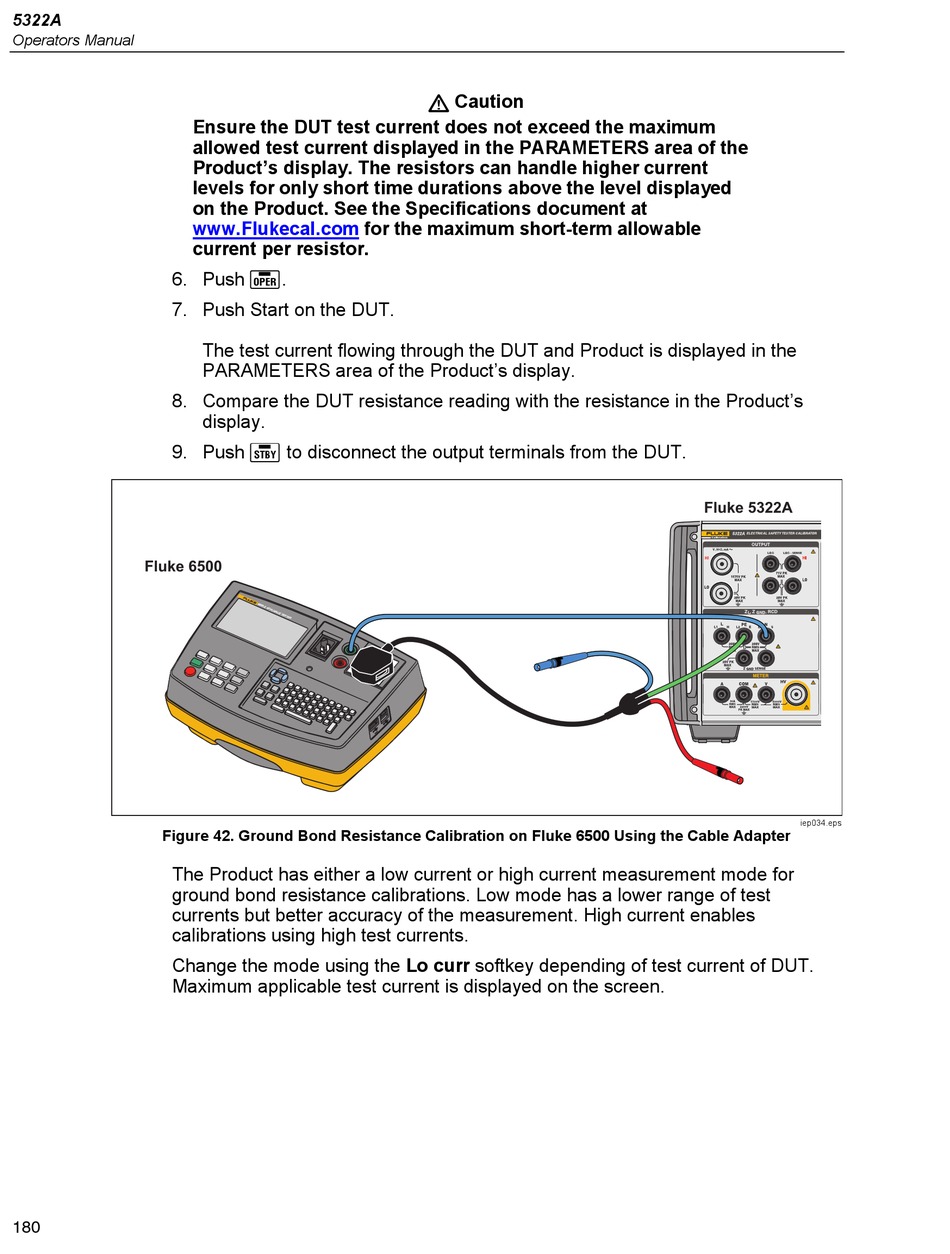

Figure 42. Ground Bond Resistance Calibration on Fluke 6500 Using the Cable Adapter
The Product has either a low current or high current measurement mode for
ground bond resistance calibrations. Low mode has a lower range of test
currents but better accuracy of the measurement. High current enables
calibrations using high test currents.
Change the mode using the Lo curr softkey depending of test current of DUT.
Maximum applicable test current is displayed on the screen.
180
Ensure the DUT test current does not exceed the maximum
allowed test current displayed in the PARAMETERS area of the
Product's display. The resistors can handle higher current
levels for only short time durations above the level displayed
on the Product. See the Specifications document at
www.Flukecal.com for the maximum short-term allowable
current per resistor.
The test current flowing through the DUT and Product is displayed in the
PARAMETERS area of the Product's display.
display.
W Caution
Fluke 5322A
iep034.eps
