HIPOT Tester
Hi
Lo
Fluke 5322A-LOAD

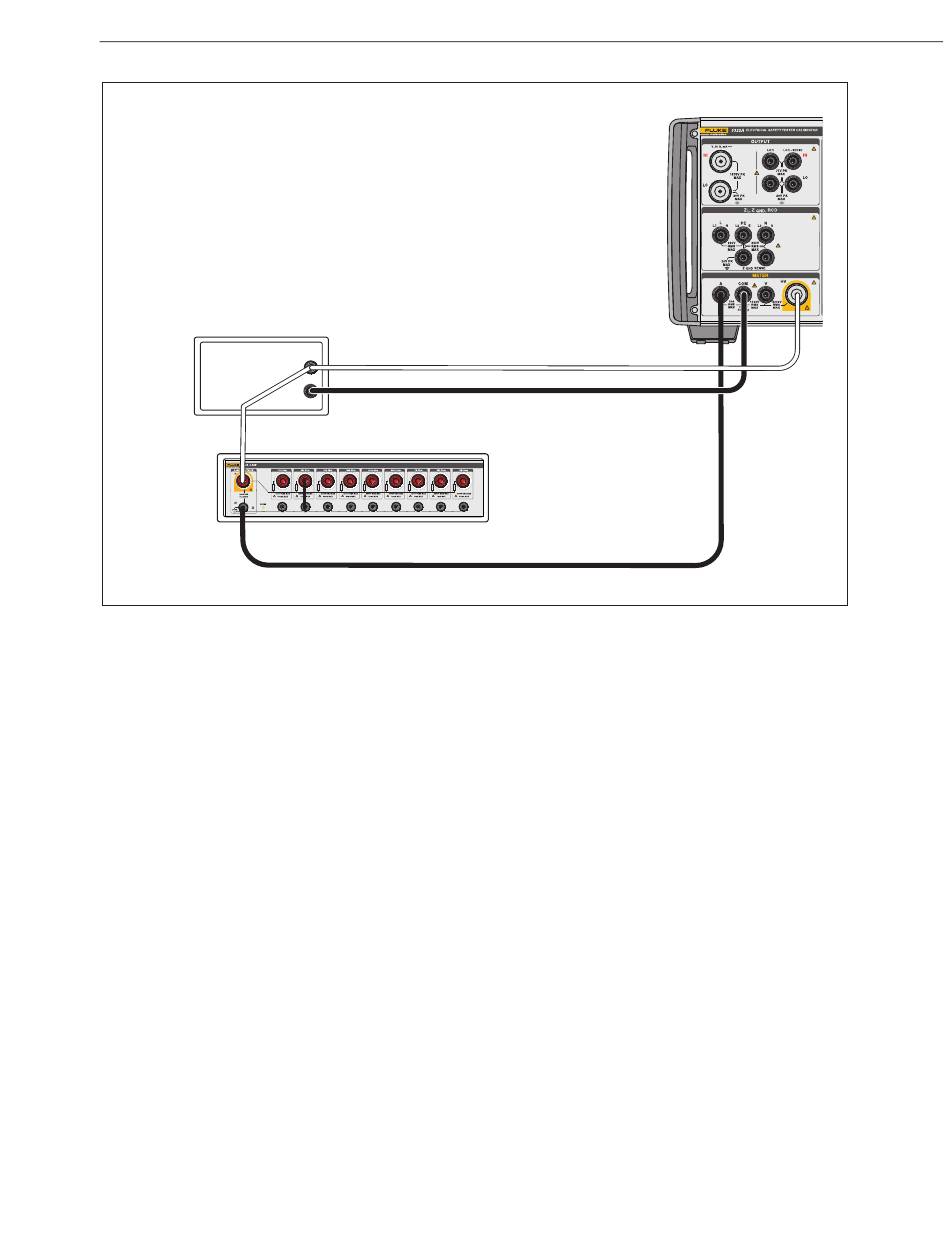

Figure 25. HIPOT LC Function Connections for >1100 V and up to 5000 V rms
The Product shows the following measured values:
• Test voltage
• Test current
•
Maximum test voltage captured (in a hold function)
•
Maximum test current captured (in a hold function)
•
THD for ac signals and ripple coefficient for dc signals
The hold parameters can be reset using the Clear softkey.
Ripple coefficient is shown in two formats:
•
Absolute in volts
•
Relative in percent
The measured leakage current is normally the real (actual) current flowing into
the A terminal. The Product has the option of making a correction for the total
leakage current by measuring the current flowing through the voltage input
terminal as well. In this case the current flowing through the Product voltage input
terminal is added to the measured leakage current value. This correction mode is
indicated by the Corr symbol in the input field of the display.
Multifunction Electrical Tester Calibrator
Measure with the Built-in Multimeter
Fluke 5322A
OR
iep064.eps
79
