Output Adjustment Controls
I
Impedance and RCD Keys
J

K
Softkeys
18

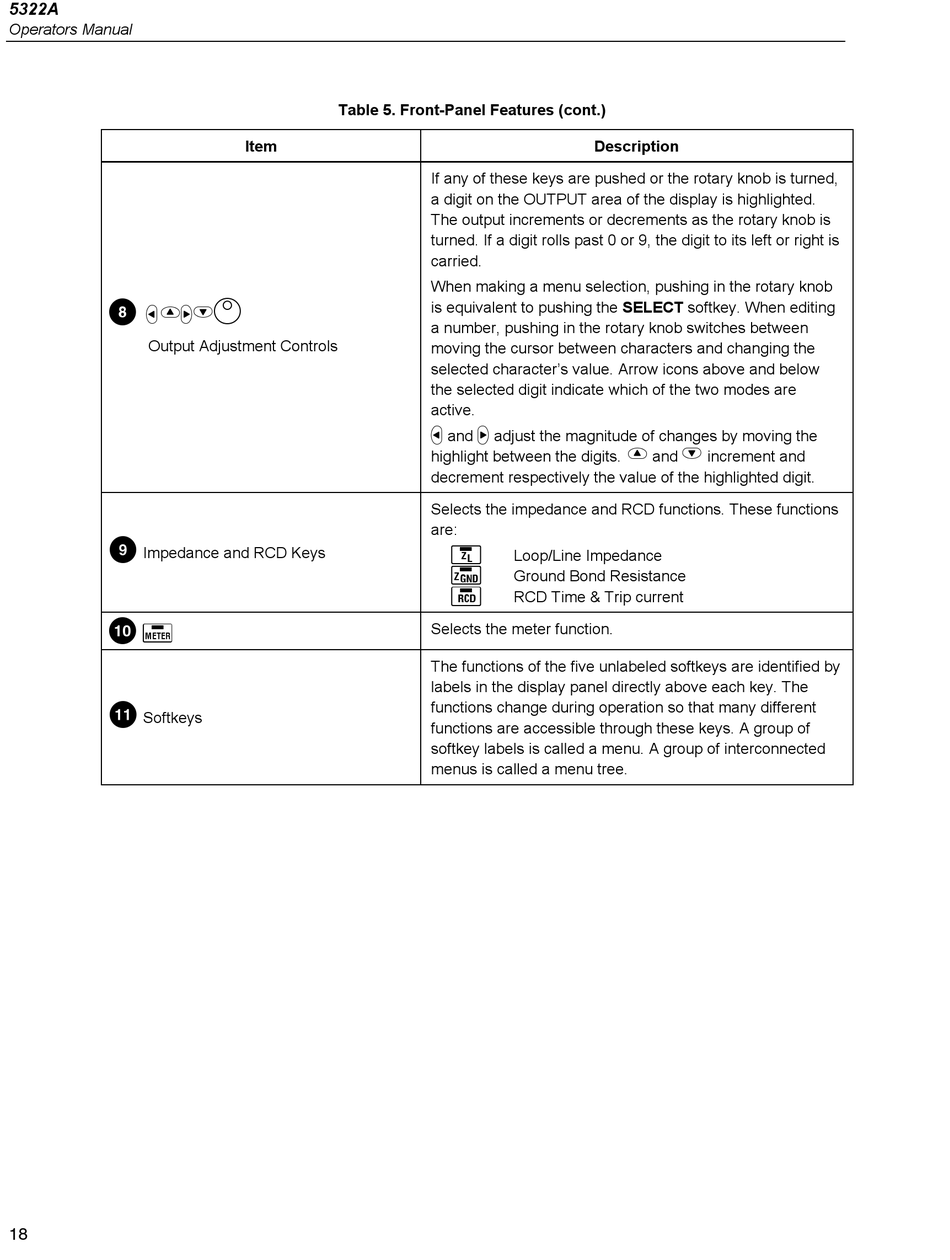

Table 5. Front-Panel Features (cont.)
Item

Description
If any of these keys are pushed or the rotary knob is turned,
a digit on the OUTPUT area of the display is highlighted.
The output increments or decrements as the rotary knob is
turned. If a digit rolls past 0 or 9, the digit to its left or right is
carried.
When making a menu selection, pushing in the rotary knob
is equivalent to pushing the SELECT softkey. When editing
a number, pushing in the rotary knob switches between
moving the cursor between characters and changing the
selected character's value. Arrow icons above and below
the selected digit indicate which of the two modes are
active.
 
and adjust the magnitude of changes by moving the
highlight between the digits.
decrement respectively the value of the highlighted digit.
Selects the impedance and RCD functions. These functions
are:

Loop/Line Impedance

Ground Bond Resistance

RCD Time & Trip current
Selects the meter function.
The functions of the five unlabeled softkeys are identified by
labels in the display panel directly above each key. The
functions change during operation so that many different
functions are accessible through these keys. A group of
softkey labels is called a menu. A group of interconnected
menus is called a menu tree.
 
and increment and
