Fluke Calibration 5322A Operator's Manual page 27

Item
L
Meter Terminals
M
Impedance and RCD
Terminals

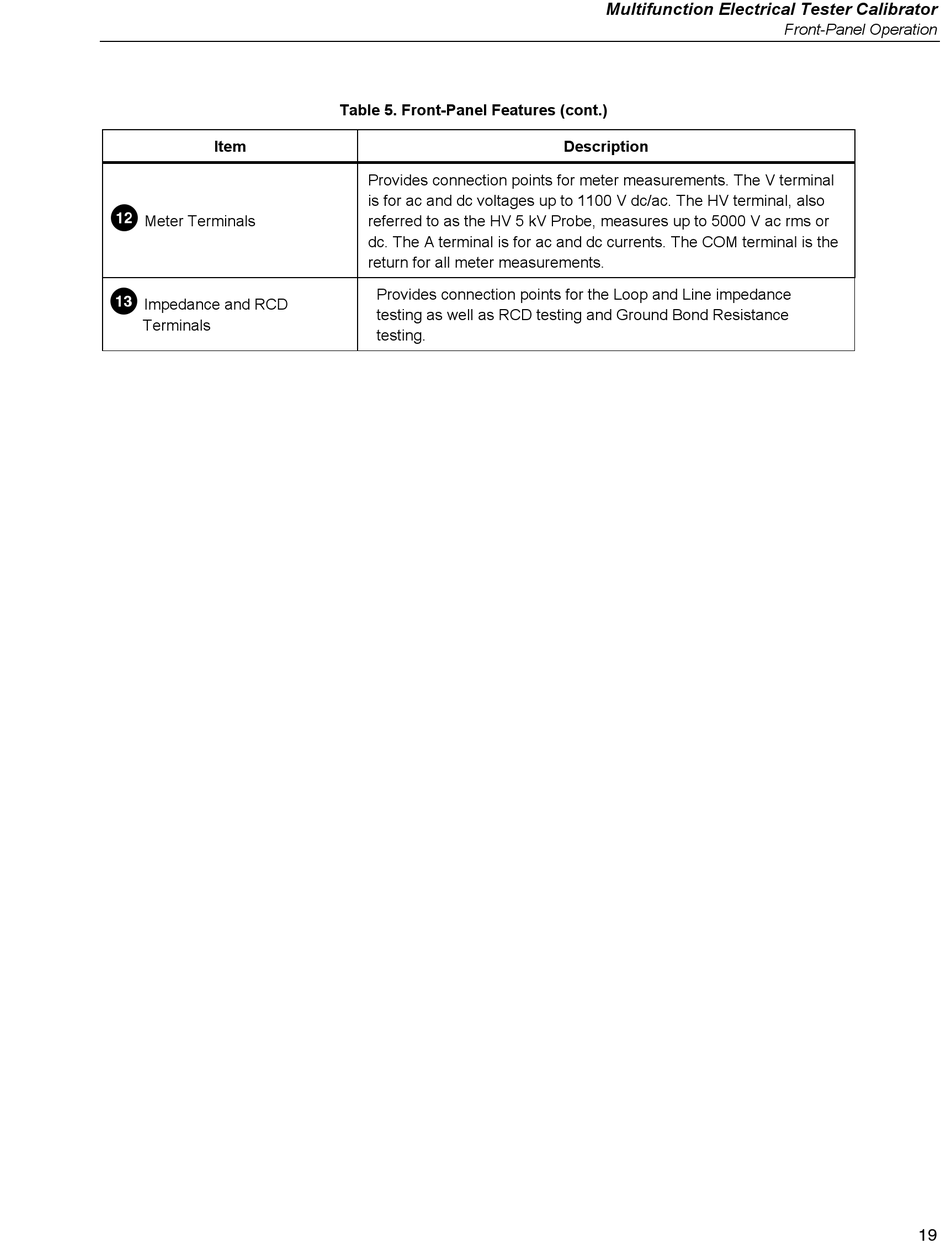

Table 5. Front-Panel Features (cont.)
Provides connection points for meter measurements. The V terminal
is for ac and dc voltages up to 1100 V dc/ac. The HV terminal, also
referred to as the HV 5 kV Probe, measures up to 5000 V ac rms or
dc. The A terminal is for ac and dc currents. The COM terminal is the
return for all meter measurements.
Provides connection points for the Loop and Line impedance
testing as well as RCD testing and Ground Bond Resistance
testing.
Multifunction Electrical Tester Calibrator
Description
Front-Panel Operation
19
