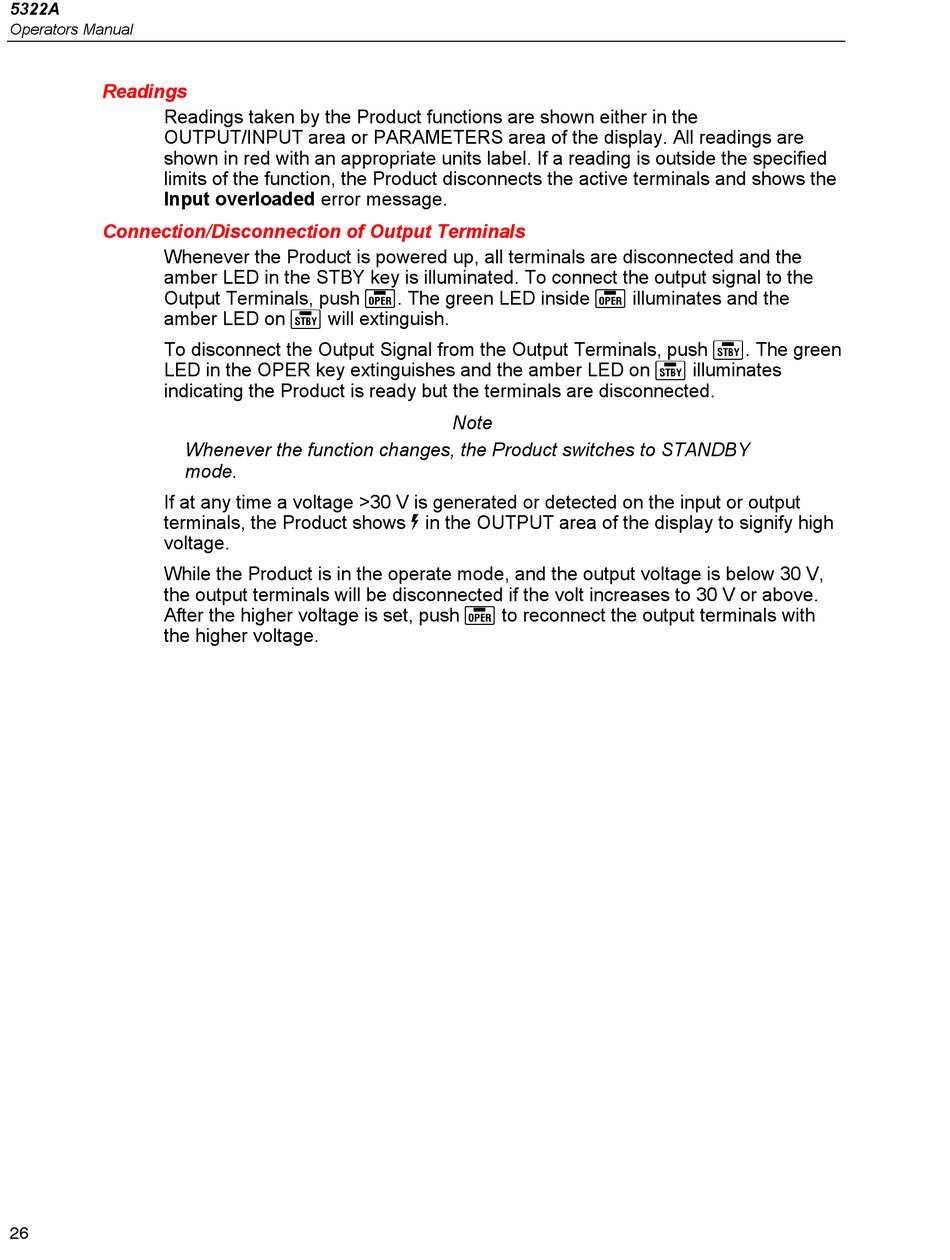

Readings

Readings taken by the Product functions are shown either in the
OUTPUT/INPUT area or PARAMETERS area of the display. All readings are
shown in red with an appropriate units label. If a reading is outside the specified
limits of the function, the Product disconnects the active terminals and shows the
Input overloaded error message.

Connection/Disconnection of Output Terminals

Whenever the Product is powered up, all terminals are disconnected and the
amber LED in the STBY key is illuminated. To connect the output signal to the
Output Terminals, push . The green LED inside  illuminates and the
amber LED on  will extinguish.
To disconnect the Output Signal from the Output Terminals, push . The green
LED in the OPER key extinguishes and the amber LED on  illuminates
indicating the Product is ready but the terminals are disconnected.
Whenever the function changes, the Product switches to STANDBY
mode.
If at any time a voltage >30 V is generated or detected on the input or output
terminals, the Product shows  in the OUTPUT area of the display to signify high
voltage.
While the Product is in the operate mode, and the output voltage is below 30 V,
the output terminals will be disconnected if the volt increases to 30 V or above.
After the higher voltage is set, push  to reconnect the output terminals with
the higher voltage.
