Item
H
IEEE 488 Port
I
USB B Connector

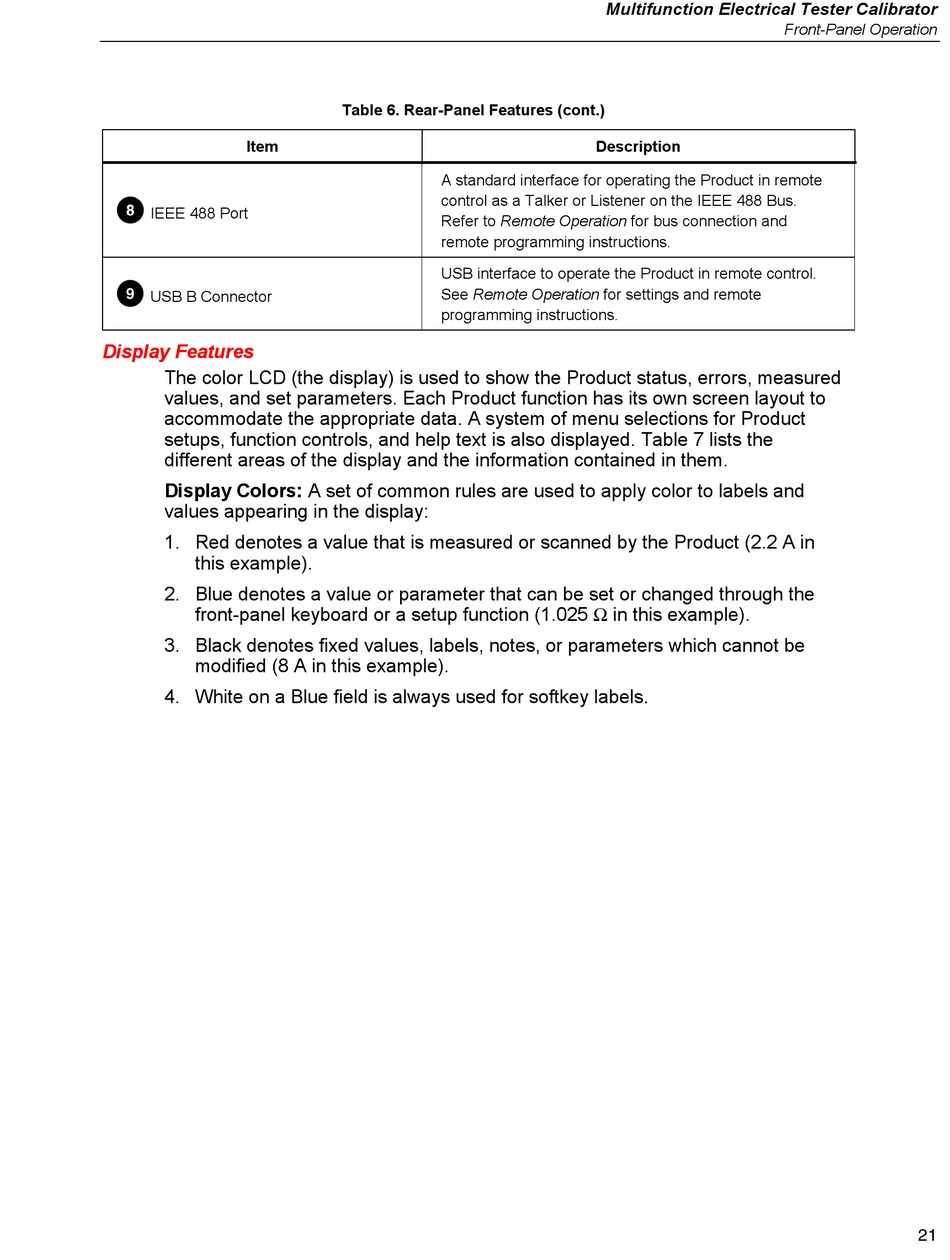

Display Features

The color LCD (the display) is used to show the Product status, errors, measured
values, and set parameters. Each Product function has its own screen layout to
accommodate the appropriate data. A system of menu selections for Product
setups, function controls, and help text is also displayed. Table 7 lists the
different areas of the display and the information contained in them.
Display Colors: A set of common rules are used to apply color to labels and
values appearing in the display:
1. Red denotes a value that is measured or scanned by the Product (2.2 A in
this example).
2. Blue denotes a value or parameter that can be set or changed through the
front-panel keyboard or a setup function (1.025 Ω in this example).
3. Black denotes fixed values, labels, notes, or parameters which cannot be
modified (8 A in this example).
4. White on a Blue field is always used for softkey labels.
Table 6. Rear-Panel Features (cont.)
A standard interface for operating the Product in remote
control as a Talker or Listener on the IEEE 488 Bus.
Refer to Remote Operation for bus connection and
remote programming instructions.
USB interface to operate the Product in remote control.
See Remote Operation for settings and remote
programming instructions.
Multifunction Electrical Tester Calibrator
Description
Front-Panel Operation
21
