5322A
Operators Manual
Fluke 6500
196

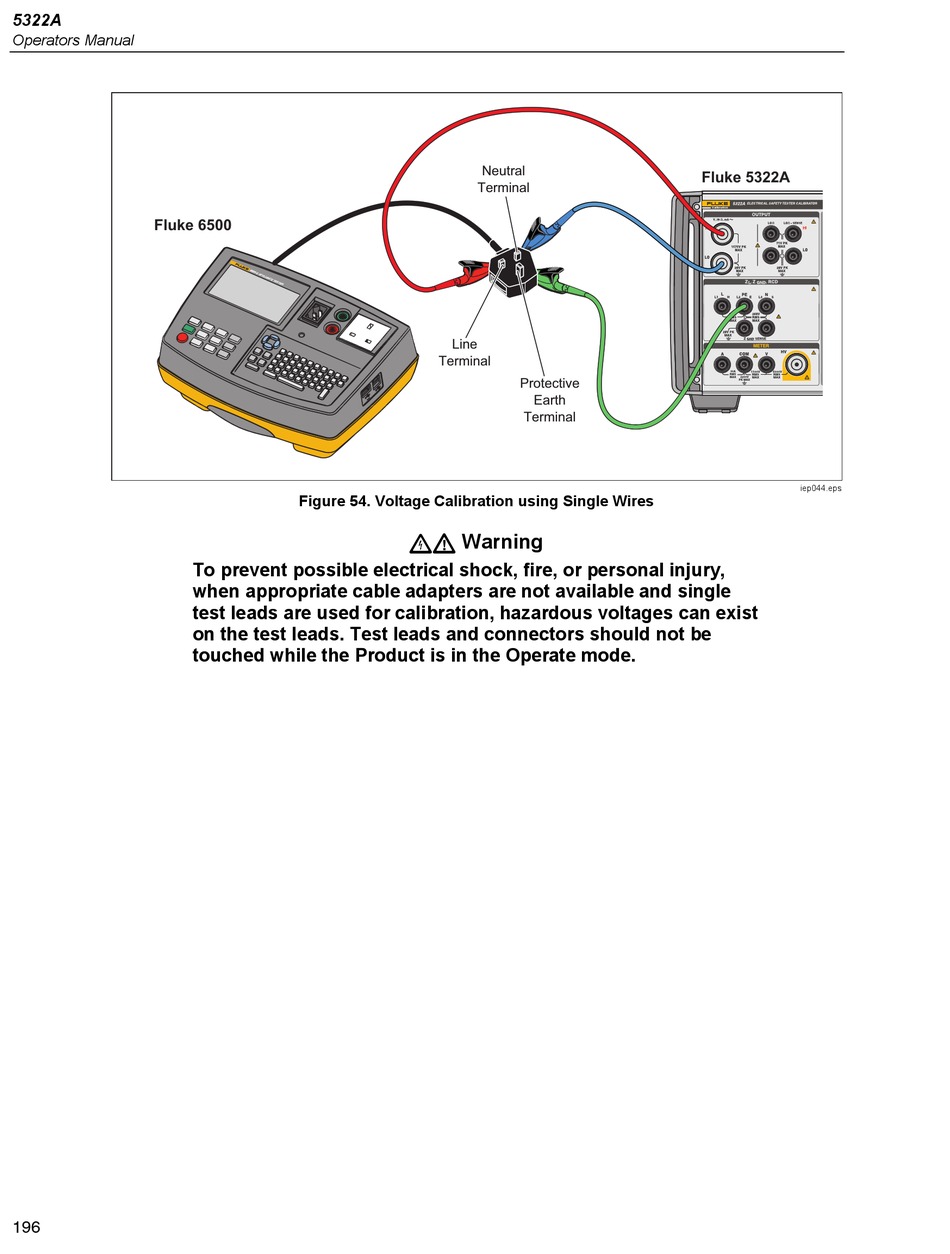

Figure 54. Voltage Calibration using Single Wires
To prevent possible electrical shock, fire, or personal injury,
when appropriate cable adapters are not available and single
test leads are used for calibration, hazardous voltages can exist
on the test leads. Test leads and connectors should not be
touched while the Product is in the Operate mode.
Neutral
Terminal
Line
Terminal
Protective
Earth
Terminal
XW Warning
Fluke 5322A
iep044.eps
