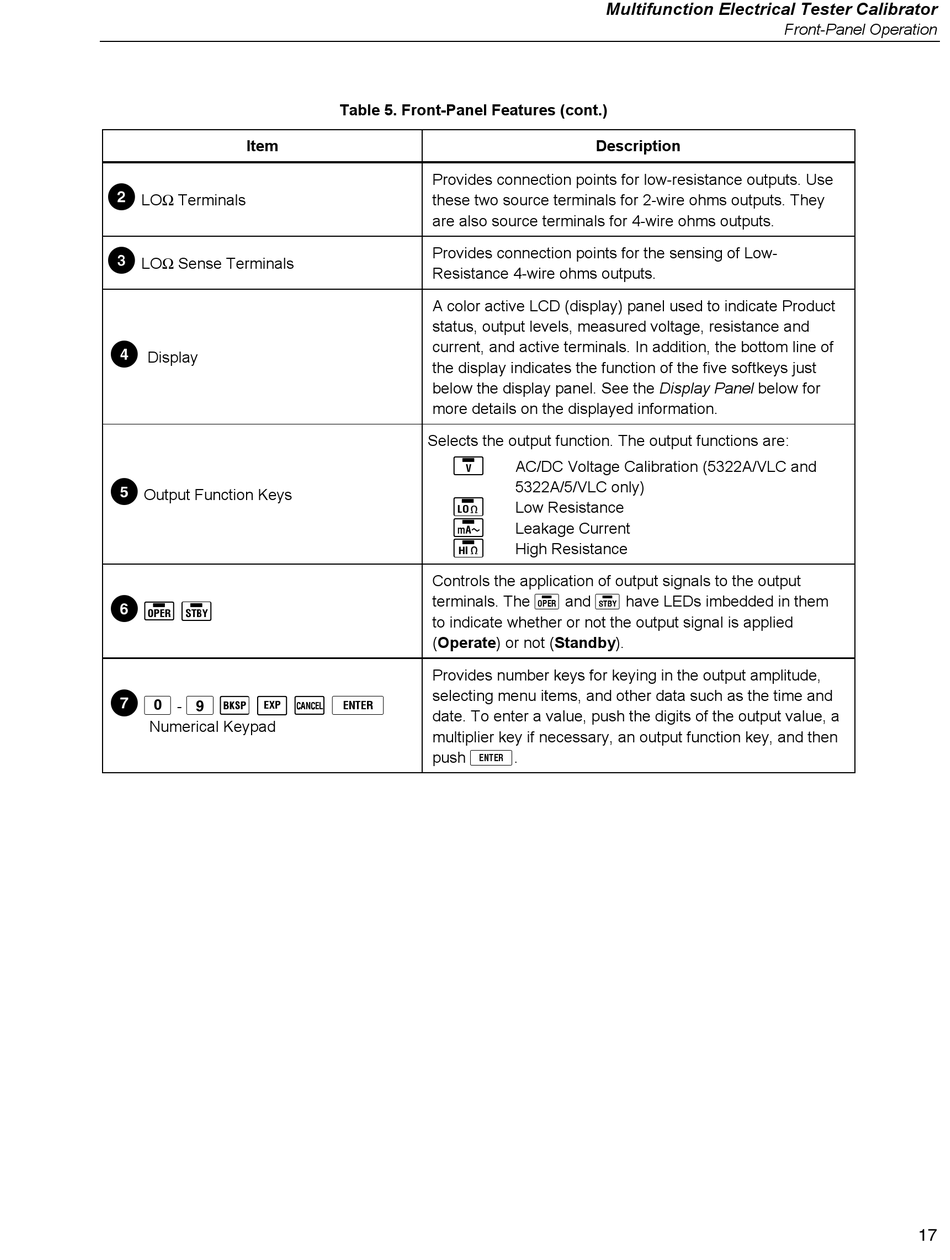

Fluke Calibration 5322A Operator's Manual page 25

Item

LOΩ Terminals

LOΩ Sense Terminals
D
Display
E
Output Function Keys
F
 
G
     
-
Numerical Keypad
Table 5. Front-Panel Features (cont.)
Provides connection points for low-resistance outputs. Use
these two source terminals for 2-wire ohms outputs. They
are also source terminals for 4-wire ohms outputs.
Provides connection points for the sensing of Low-
Resistance 4-wire ohms outputs.
A color active LCD (display) panel used to indicate Product
status, output levels, measured voltage, resistance and
current, and active terminals. In addition, the bottom line of
the display indicates the function of the five softkeys just
below the display panel. See the Display Panel below for
more details on the displayed information.
Selects the output function. The output functions are:

AC/DC Voltage Calibration (5322A/VLC and
5322A/5/VLC only)

Low Resistance

Leakage Current

High Resistance
Controls the application of output signals to the output
terminals. The  and  have LEDs imbedded in them
to indicate whether or not the output signal is applied
(Operate) or not (Standby).
Provides number keys for keying in the output amplitude,
selecting menu items, and other data such as the time and
date. To enter a value, push the digits of the output value, a
multiplier key if necessary, an output function key, and then
push .
