Front-Panel Operation

The Product can be controlled either by sending commands through one of its
communication interfaces or by manual manipulation of its front-panel controls.
This section explains the function and use of the controls and indicators located
on the front and rear panel of the Product.

Front-Panel Feature Descriptions

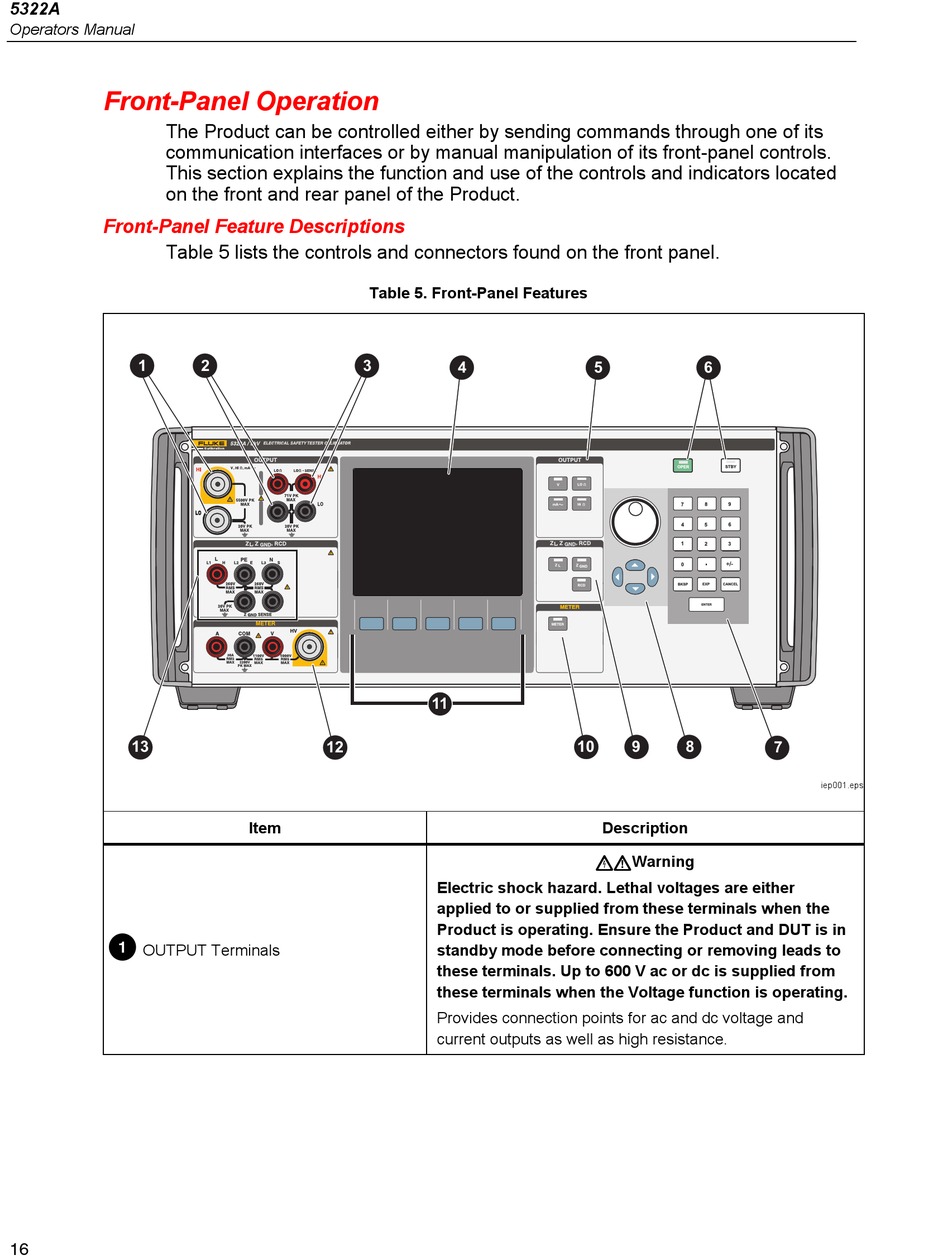

Table 5 lists the controls and connectors found on the front panel.
1
13

OUTPUT Terminals
16
Table 5. Front-Panel Features
2 3
LO
,
L
12
Item
4 5
,
L
METER
11
10
Description
XWWarning
Electric shock hazard. Lethal voltages are either
applied to or supplied from these terminals when the
Product is operating. Ensure the Product and DUT is in
standby mode before connecting or removing leads to
these terminals. Up to 600 V ac or dc is supplied from
these terminals when the Voltage function is operating.
Provides connection points for ac and dc voltage and
current outputs as well as high resistance.
6
+/-
8
9 7
iep001.eps
