For making hipot leakage current calibrations using voltages >1000 V, use the
HV input as shown in Figure 65 and set the Probe softkey on the Product to HV
5 kV.
208
The Product input resistance is 60 M
with the Load.
HIPOT Tester
Hi
Lo
Jumper
Fluke 5322A-LOAD

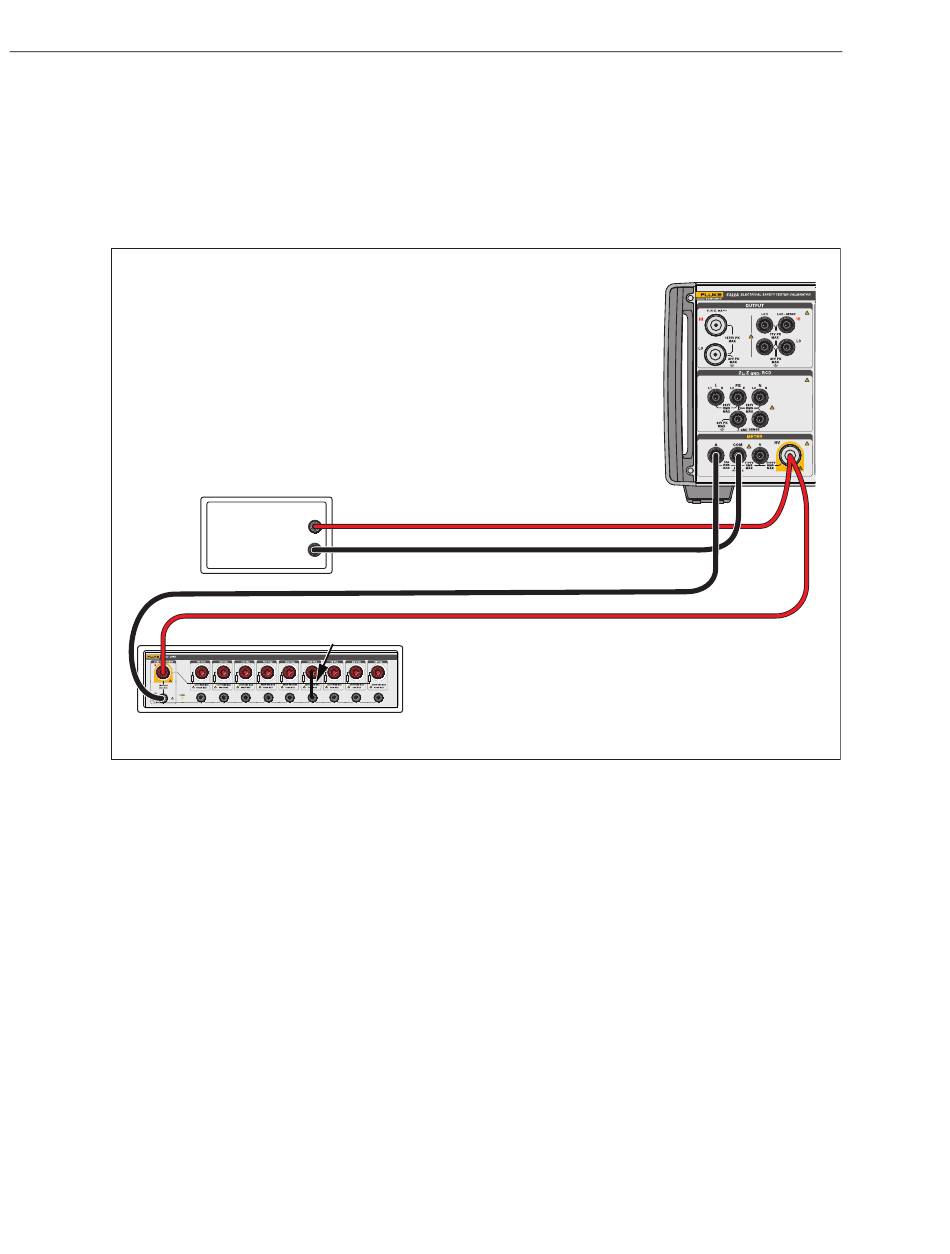

Figure 65. Normal Hipot Calibration Connections for Voltages >1000 V
The input resistance of the internal high voltage probe is
approximately 60 M Ω ±
current flowing through the Load and internal high voltage probe
5 kV.
Note
Ω ± 1 % connected in parallel
Note
5 %. The Product senses and displays the
Fluke 5322A
OR
iep062.eps
