5. Simulate leakage current using the 5322A LOAD instrument connected
Figure 23. Multimeter Display with Hipot Leakage Current Measurement for Voltages <1100 V
Fluke 5322A-LOAD
78
between the Hi signal terminal of the HIPOT tester and the Meter A input
terminal. See Figures 23, 24, and 25.
HIPOT Tester
Hi
Lo

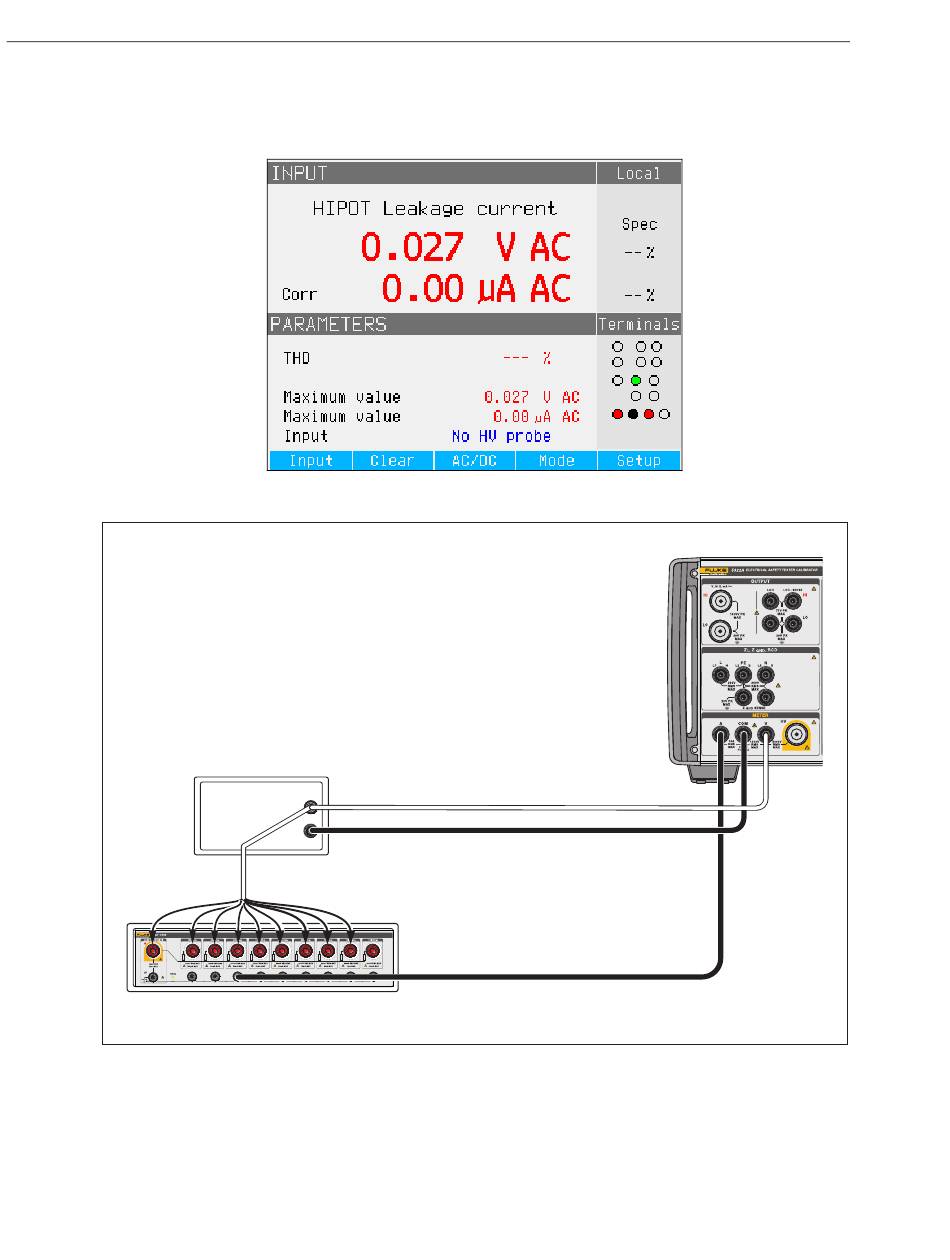

Figure 24. HIPOT LC Function Connections for <1100 V
Fluke 5322A
OR
iep061.eps
