The Product shows the following for an RCD in PAT calibration, see Figure 19:
•
•

AC/DC Voltage Outputs (5322A/VLC only)

The Product calibrates instruments and testers with ac and/or dc voltage
measurement functions up to 600 V. With a burden current over 200 mA at
230 V, the Product also makes a good stable power source for DUTs like
appliance testers.
To perform a voltage calibration:
1. Push .
2. If the Product is not already in the desired mode (ac or dc voltage), push the
70

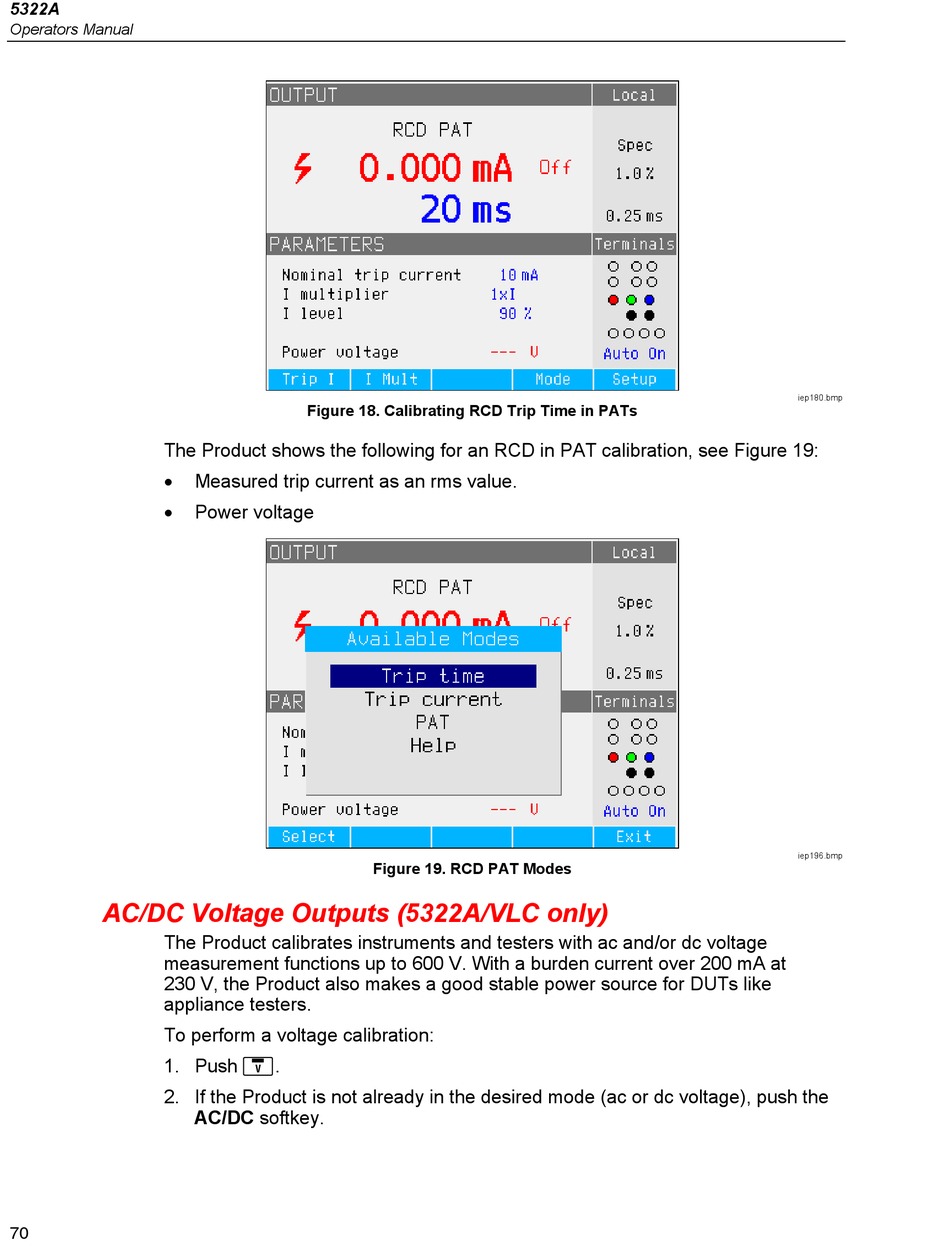

Figure 18. Calibrating RCD Trip Time in PATs
Measured trip current as an rms value.
Power voltage
Figure 19. RCD PAT Modes
AC/DC softkey.
