Set the Output Signal Value

All Product functions allow you to set the primary and auxiliary parameter values
in different ways:
•
•
•
The cursor keys and rotary knob are also used to make menu selections in the
setup window.
If an entry results in overflow or underflow of the Product range, a
Value too Large or Value too Small error message is shown.

Numeric Keyboard

To enter a value using the numeric keypad:
1. Key in the numeric value with  through , then  to accept.
The softkey labels change to match the function selected.
2. With the desired value shown, push the softkey for the appropriate units or
24
Numeric keyboard
Cursor keys
Rotary Knob
When the first digit is pushed, an input box is shown in the PARAMETERS
field. The units for the selected function are also shown in the softkey label
area. See Figure 1.

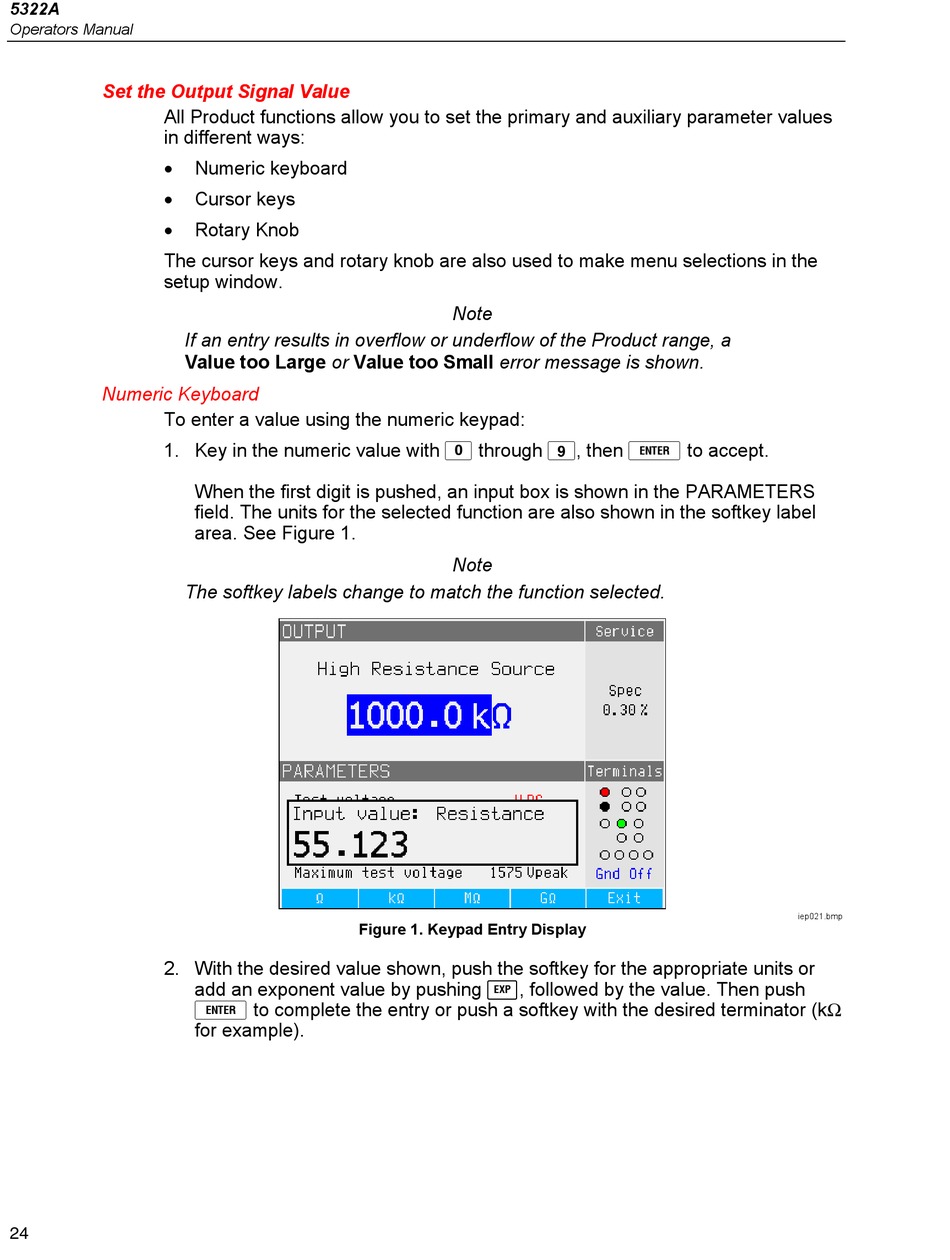

Figure 1. Keypad Entry Display
add an exponent value by pushing , followed by the value. Then push
 to complete the entry or push a softkey with the desired terminator (kΩ
for example).
