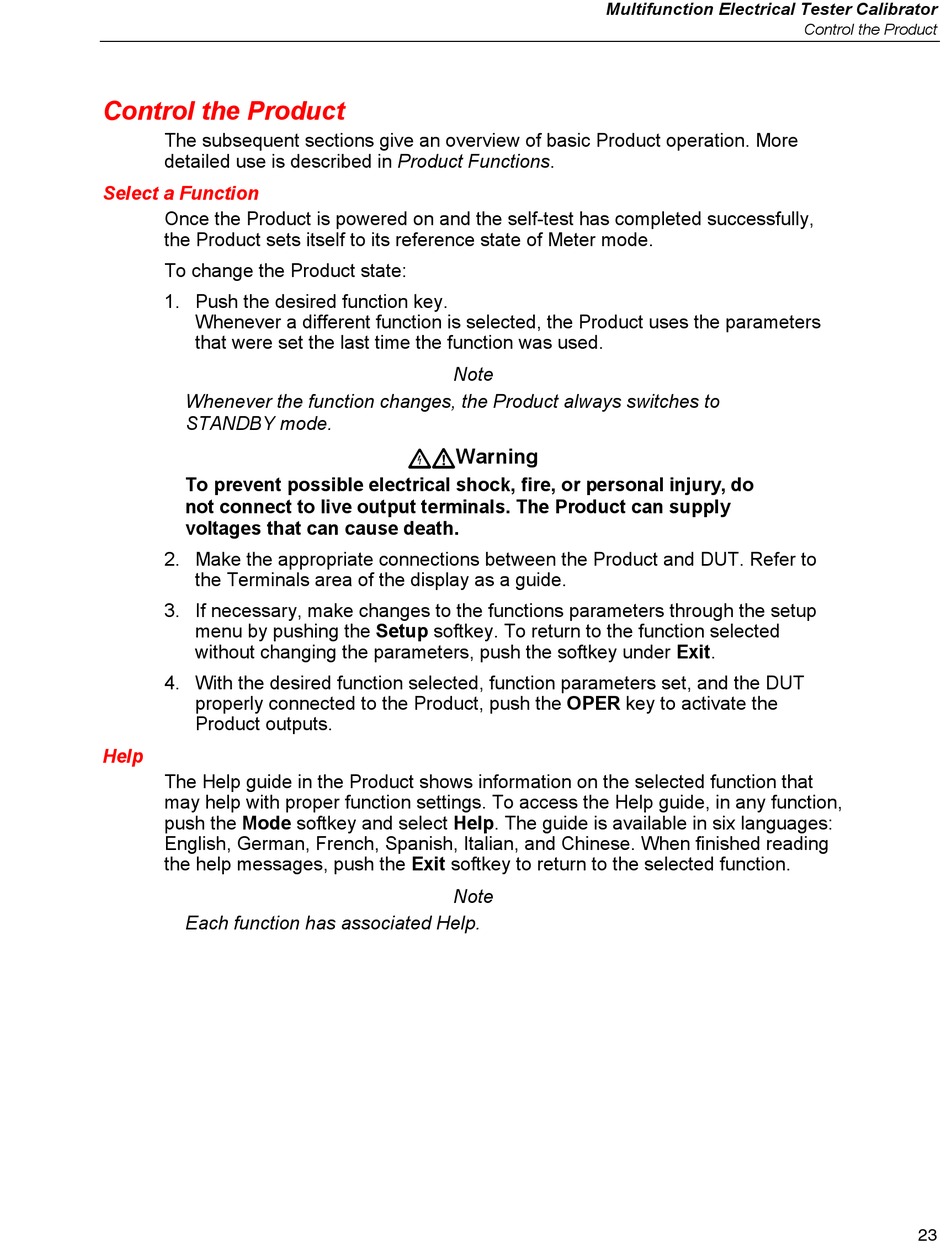

Control the Product

The subsequent sections give an overview of basic Product operation. More
detailed use is described in Product Functions.

Select a Function

Once the Product is powered on and the self-test has completed successfully,
the Product sets itself to its reference state of Meter mode.
To change the Product state:
1. Push the desired function key.
Whenever a different function is selected, the Product uses the parameters
that were set the last time the function was used.
Whenever the function changes, the Product always switches to
STANDBY mode.
To prevent possible electrical shock, fire, or personal injury, do
not connect to live output terminals. The Product can supply
voltages that can cause death.
2. Make the appropriate connections between the Product and DUT. Refer to
the Terminals area of the display as a guide.
3. If necessary, make changes to the functions parameters through the setup
menu by pushing the Setup softkey. To return to the function selected
without changing the parameters, push the softkey under Exit.
4. With the desired function selected, function parameters set, and the DUT
properly connected to the Product, push the OPER key to activate the
Product outputs.

Help

The Help guide in the Product shows information on the selected function that
may help with proper function settings. To access the Help guide, in any function,
push the Mode softkey and select Help. The guide is available in six languages:
English, German, French, Spanish, Italian, and Chinese. When finished reading
the help messages, push the Exit softkey to return to the selected function.
Each function has associated Help.
Note
XWWarning
Note
Multifunction Electrical Tester Calibrator
Control the Product
23
