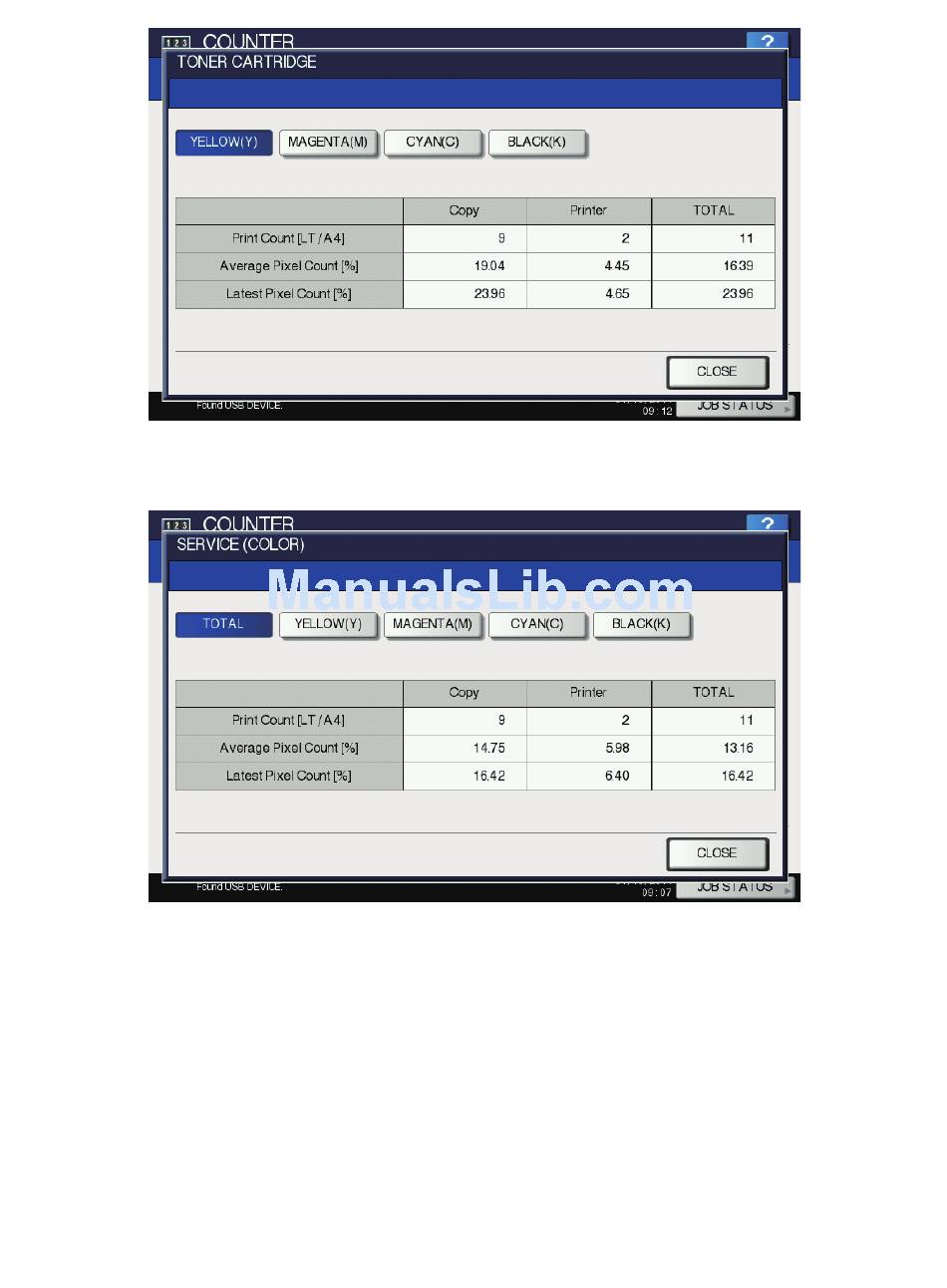

The following screen is displayed when pressing the [SERVICE (COLOR)] button.

Fig. 3-6 Information screen of service technician reference (full color)

The following screen is displayed when pressing the [SERVICE (BLACK)] button.

e-STUDIO477S/527S/477SL

SELF-DIAGNOSTIC MODE

Fig. 3-5 Information screen of toner cartridge reference
