12
OTHER FUNCTIONS

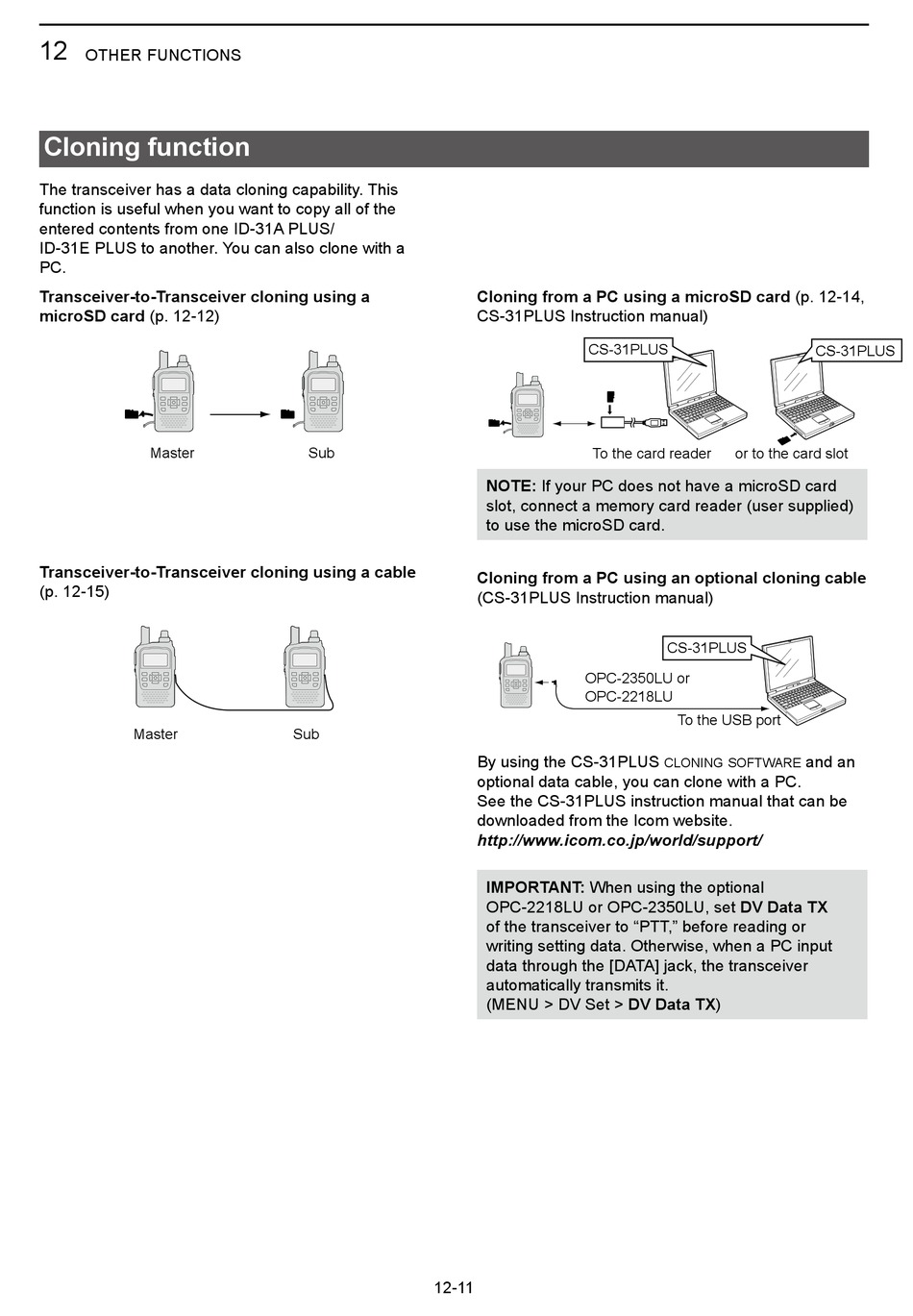

Cloning function

The transceiver has a data cloning capability� This
function is useful when you want to copy all of the
entered contents from one ID-31A PLUS/
ID-31E PLUS to another� You can also clone with a
PC�
Transceiver-to-Transceiver cloning using a
microSD card (p� 12-12)
Master
Transceiver-to-Transceiver cloning using a cable
(p� 12-15)
Master
Sub
Sub
12-11
Cloning from a PC using a microSD card (p� 12-14,
CS-31PLUS Instruction manual)
CS-31PLUS
To the card reader
NOTE: If your PC does not have a microSD card
slot, connect a memory card reader (user supplied)
to use the microSD card�
Cloning from a PC using an optional cloning cable
(CS-31PLUS Instruction manual)
OPC-2350LU or
OPC-2218LU
By using the CS-31PLUS
optional data cable, you can clone with a PC�
See the CS-31PLUS instruction manual that can be
downloaded from the Icom website�
http://www.icom.co.jp/world/support/
IMPORTANT: When using the optional
OPC-2218LU or OPC-2350LU, set DV Data TX
of the transceiver to "PTT," before reading or
writing setting data� Otherwise, when a PC input
data through the [DATA] jack, the transceiver
automatically transmits it�
(MENU > DV Set > DV Data TX)
CS-31PLUS
or to the card slot
CS-31PLUS
To the USB port
and an
cloning software
