13
OTHER FUNCTIONS

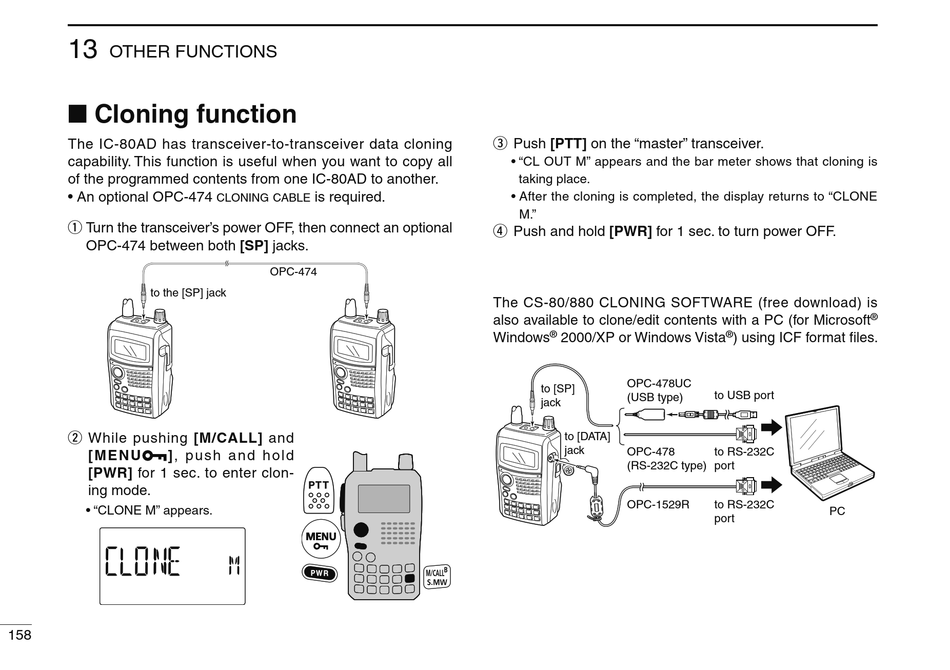

Cloning function

The IC-80AD has transceiver-to-transceiver data cloning
capability. This function is useful when you want to copy all
of the programmed contents from one IC-80AD to another.
• An optional OPC-474
q Turn the transceiver's power OFF, then connect an optional
OPC-474 between both [SP] jacks.
to the [SP] jack
w While pushing [M/CALL] and
[MENU ], push and hold
[PWR] for 1 sec. to enter clon-
ing mode.
• "CLONE M" appears.
158
is required.
CLONING CABLE
OPC-474
e Push [PTT] on the "master" transceiver.
• "CL OUT M" appears and the bar meter shows that cloning is
taking place.
• After the cloning is completed, the display returns to "CLONE
M."
r Push and hold [PWR] for 1 sec. to turn power OFF.
The CS-80/880 CLONING SOFTWARE (free download) is
also available to clone/edit contents with a PC (for Microsoft
®
Windows 2000/XP or Windows Vista
OPC-478UC
to [SP]
(USB type)
jack
to [DATA]
jack
OPC-478
(RS-232C type)
OPC-1529R
®
®
) using ICF format files.
to USB port
to RS-232C
port
to RS-232C
PC
port
