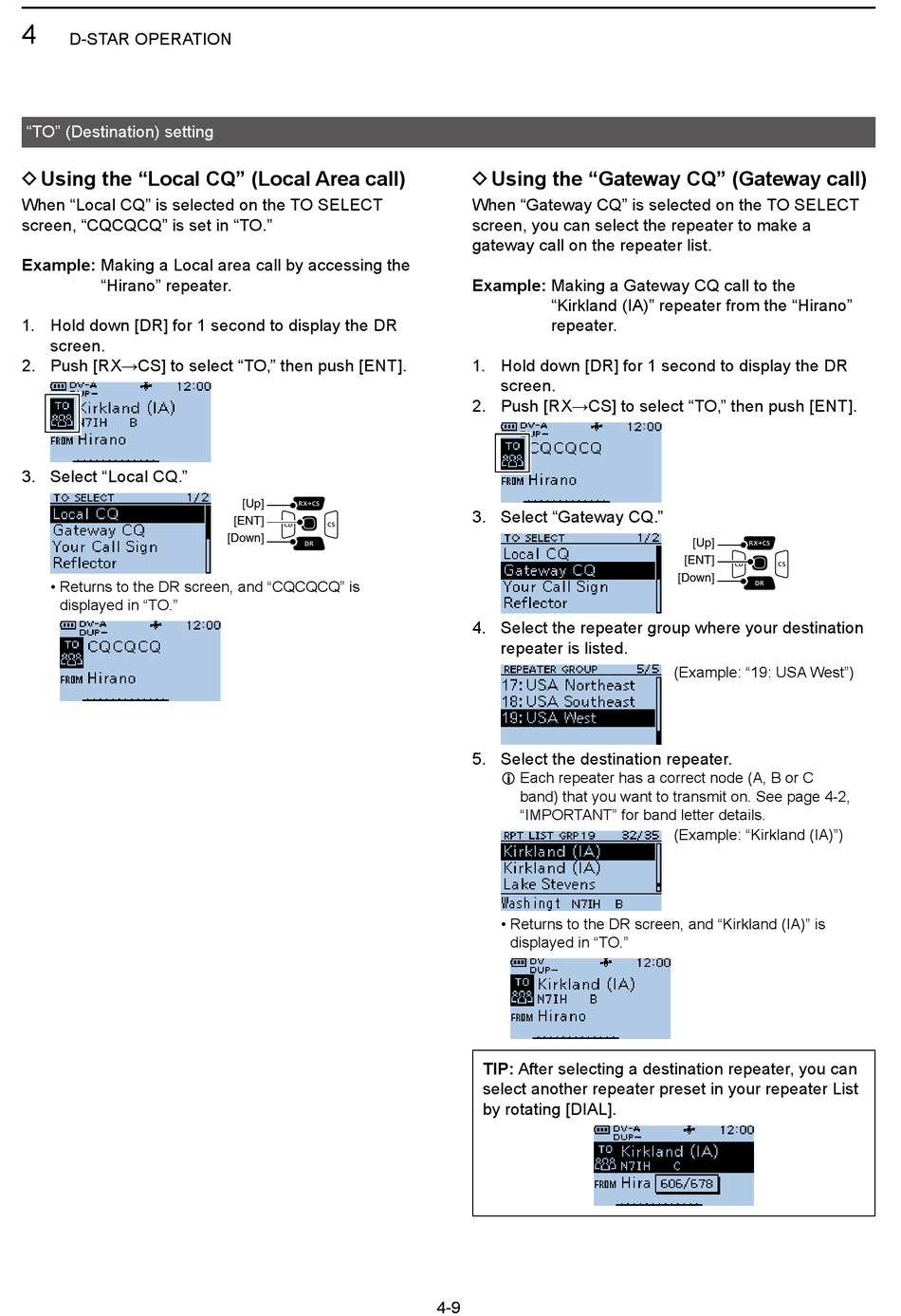

Icom ID-31A PLUS Advanced Manual page 33

4
D-STAR OPERATION
"TO" (Destination) setting
D Using the "Local CQ" (Local Area call)
When "Local CQ" is selected on the TO SELECT
screen, "CQCQCQ" is set in "TO"
Example: Making a Local area call by accessing the
"Hirano" repeater
1 Hold down [DR] for 1 second to display the DR
screen
2 Push [RX→CS] to select "TO," then push [ENT].
3 Select "Local CQ"
• Returns to the DR screen, and "CQCQCQ" is
displayed in "TO"
[Up]
[ENT]
[Down]
D Using the "Gateway CQ" (Gateway call)
When "Gateway CQ" is selected on the TO SELECT
screen, you can select the repeater to make a
gateway call on the repeater list
Example: Making a Gateway CQ call to the
"Kirkland (IA)" repeater from the "Hirano"
repeater
1 Hold down [DR] for 1 second to display the DR
screen
2 Push [RX→CS] to select "TO," then push [ENT].
3 Select "Gateway CQ"
4 Select the repeater group where your destination
repeater is listed
5 Select the destination repeater
L Each repeater has a correct node (A, B or C
band) that you want to transmit on See page 4-2,
"IMPORTANT" for band letter details
• Returns to the DR screen, and "Kirkland (IA)" is
displayed in "TO"
TIP: After selecting a destination repeater, you can
select another repeater preset in your repeater List
by rotating [DIAL]
4-9
[Up]
[ENT]
[Down]
(Example: "19: USA West")
(Example: "Kirkland (IA)")
