Icom ID-31A PLUS Advanced Manual page 46

4
D-STAR OPERATION

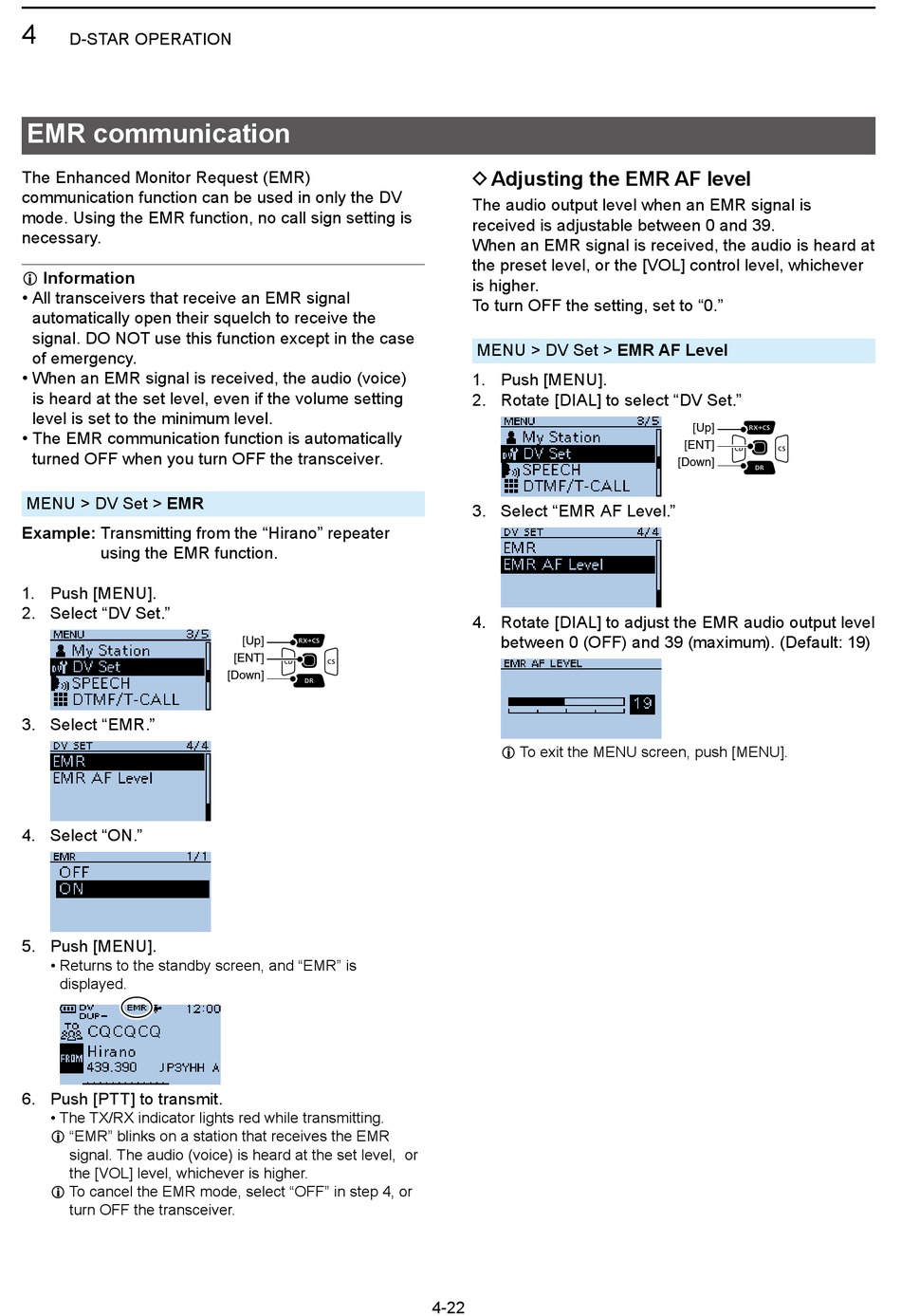

EMR communication
The Enhanced Monitor Request (EMR)
communication function can be used in only the DV
mode Using the EMR function, no call sign setting is
necessary
Information
L
• All transceivers that receive an EMR signal
automatically open their squelch to receive the
signal. DO NOT use this function except in the case
of emergency
• When an EMR signal is received, the audio (voice)
is heard at the set level, even if the volume setting
level is set to the minimum level
• The EMR communication function is automatically
turned OFF when you turn OFF the transceiver
MENU > DV Set > EMR
Example: Transmitting from the "Hirano" repeater
using the EMR function
1 Push [MENU]
2 Select "DV Set"
3 Select "EMR"
4 Select "ON"
5 Push [MENU]
• Returns to the standby screen, and "EMR" is
displayed
6 Push [PTT] to transmit
• The TX/RX indicator lights red while transmitting
L "EMR" blinks on a station that receives the EMR
signal The audio (voice) is heard at the set level, or
the [VOL] level, whichever is higher
L To cancel the EMR mode, select "OFF" in step 4, or
turn OFF the transceiver
[Up]
[ENT]
[Down]
D Adjusting the EMR AF level
The audio output level when an EMR signal is
received is adjustable between 0 and 39
When an EMR signal is received, the audio is heard at
the preset level, or the [VOL] control level, whichever
is higher
To turn OFF the setting, set to "0"
MENU > DV Set > EMR AF Level
1 Push [MENU]
2 Rotate [DIAL] to select "DV Set"
3 Select "EMR AF Level"
4 Rotate [DIAL] to adjust the EMR audio output level
between 0 (OFF) and 39 (maximum). (Default: 19)
L To exit the MENU screen, push [MENU].
4-22
[Up]
[ENT]
[Down]
