17
OTHER FUNCTIONS

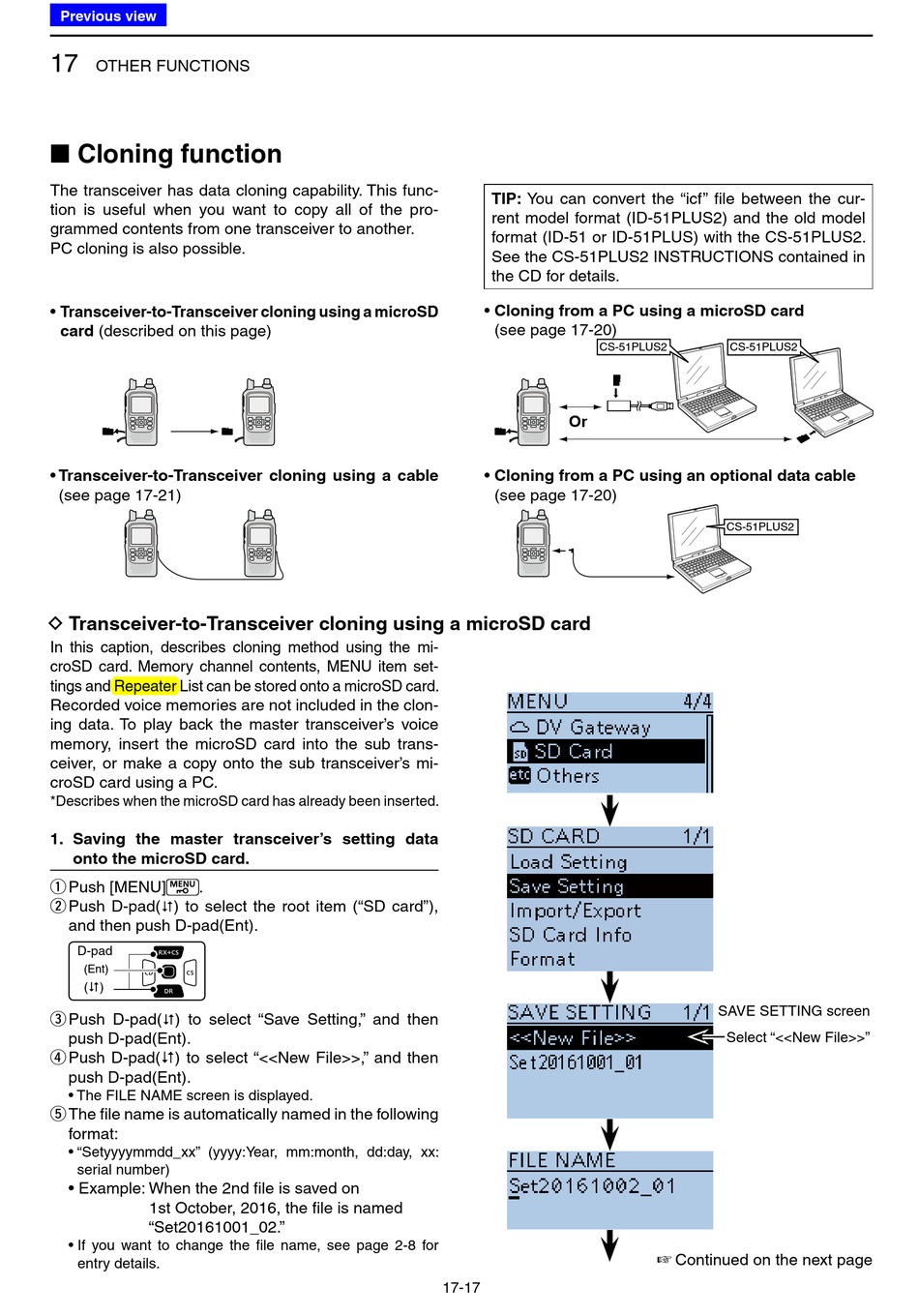

■ Cloning function

The transceiver has data cloning capability. This func-
tion is useful when you want to copy all of the pro-
grammed contents from one transceiver to another.
PC cloning is also possible.
• Transceiver-to-Transceiver cloning using a microSD
card (described on this page)
• Transceiver-to-Transceiver cloning using a cable
(see page 17-21)

D Transceiver-to-Transceiver cloning using a microSD card

In this caption, describes cloning method using the mi-
croSD card. Memory channel contents, MENU item set-
tings and Repeater List can be stored onto a microSD card.
Recorded voice memories are not included in the clon-
ing data. To play back the master transceiver's voice
memory, insert the microSD card into the sub trans-
ceiver, or make a copy onto the sub transceiver's mi-
croSD card using a PC.
* Describes when the microSD card has already been inserted.
1. Saving the master transceiver's setting data
onto the microSD card.
q Push [MENU] .
w Push D-pad( ) to select the root item ("SD card"),

and then push D-pad(Ent).
D-pad
(Ent)
( )
e Push D-pad( ) to select "Save Setting," and then

push D-pad(Ent).
r Push D-pad() to select "<<New File>>," and then
push D-pad(Ent).
• The FILE NAME screen is displayed.
t The file name is automatically named in the following
format:
• "Setyyyymmdd_xx" (yyyy:Year, mm:month, dd:day, xx:
serial number)
• Example: When the 2nd file is saved on
1st October, 2016, the file is named
"Set20161001_02."
• If you want to change the file name, see page 2-8 for
entry details.
TIP: You can convert the "icf" file between the cur-
rent model format (ID-51PLUS2) and the old model
format (ID-51 or ID-51PLUS) with the CS-51PLUS2.
See the CS-51PLUS2 INSTRUCTIONS contained in
the CD for details.
• Cloning from a PC using a microSD card
(see page 17-20)
CS-51PLUS2
Or
• Cloning from a PC using an optional data cable
(see page 17-20)
17-17
CS-51PLUS2
CS-51PLUS2
SAVE SETTING screen
Select "<<New File>>"
☞ Continued on the next page
