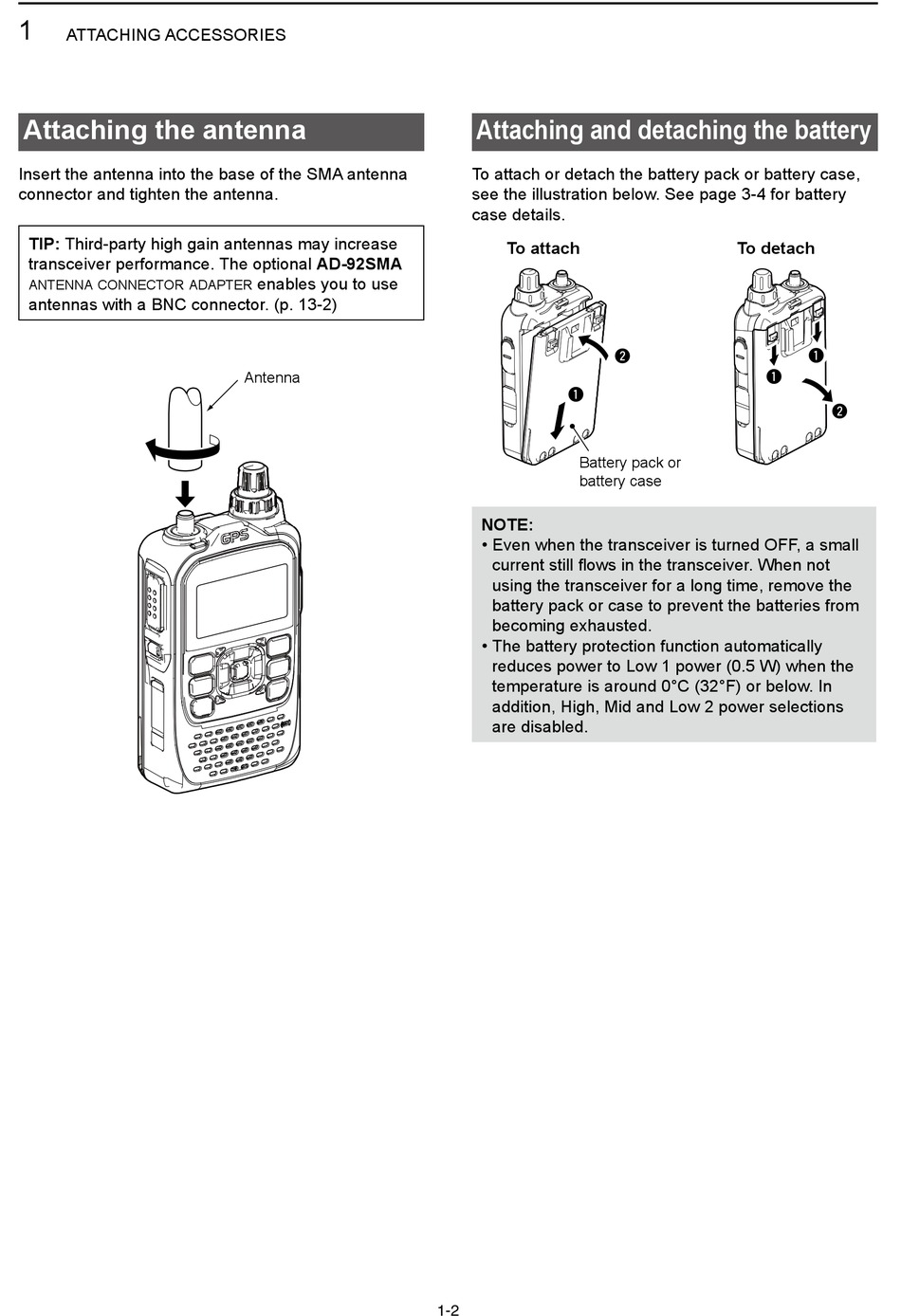

ATTACHING ACCESSORIES

Attaching the antenna
Insert the antenna into the base of the SMA antenna
connector and tighten the antenna
TIP: Third-party high gain antennas may increase
transceiver performance The optional AD-92SMA
antenna connector adapter
antennas with a BNC connector (p 13-2)
enables you to use
Antenna
Attaching and detaching the battery
To attach or detach the battery pack or battery case,
see the illustration below See page 3-4 for battery
case details
To attach
q
Battery pack or
battery case
NOTE:
• Even when the transceiver is turned OFF, a small
current still flows in the transceiver. When not
using the transceiver for a long time, remove the
battery pack or case to prevent the batteries from
becoming exhausted
• The battery protection function automatically
reduces power to Low 1 power (0.5 W) when the
temperature is around 0°C (32°F) or below In
addition, High, Mid and Low 2 power selections
are disabled
1-2
To detach
w
q
q
w
