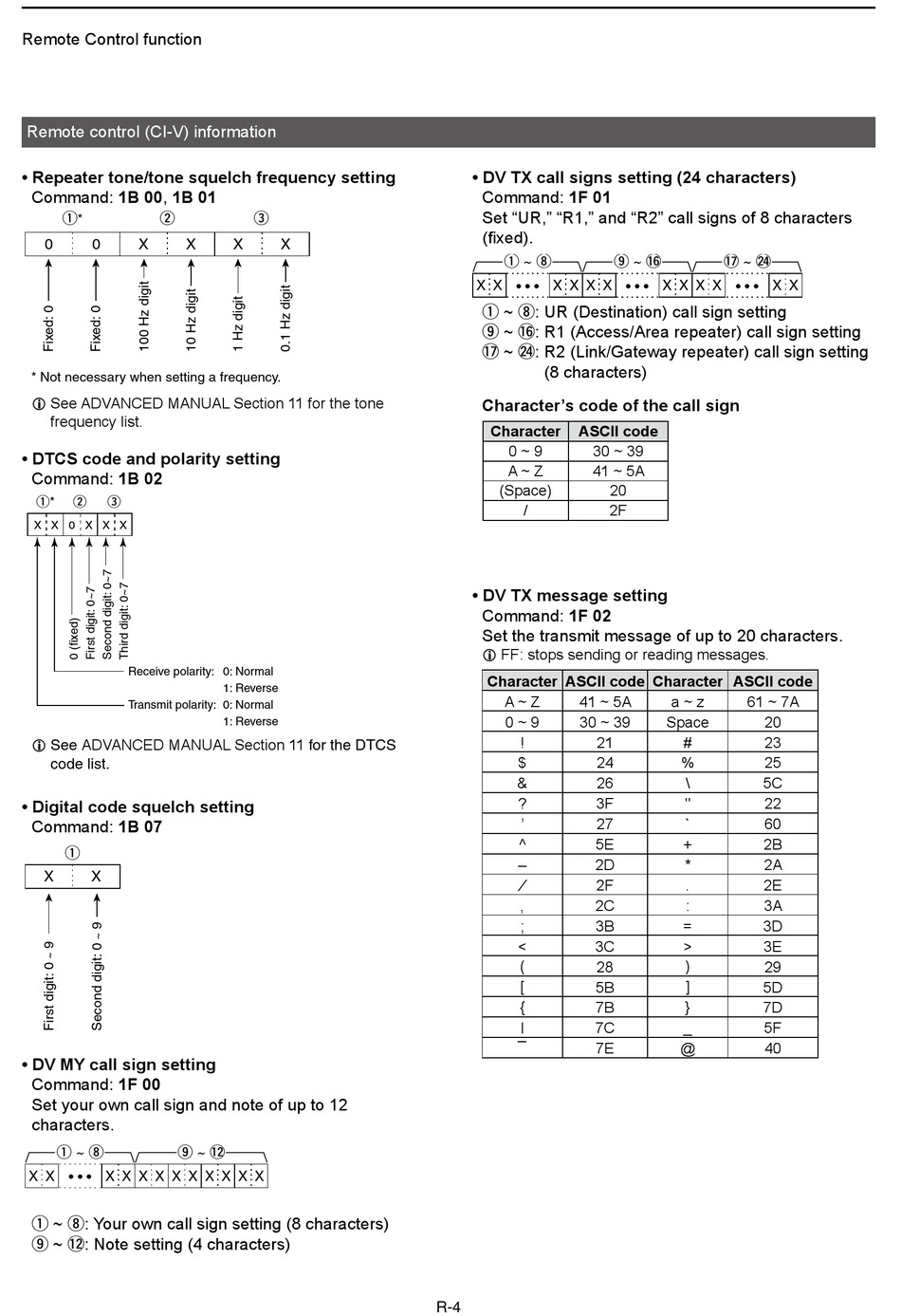

Icom ID-31A PLUS Advanced Manual page 223

Remote Control function
Remote control (CI-V) information
• Repeater tone/tone squelch frequency setting
Command: 1B 00, 1B 01
q w
*
q※ w e
0 0 X X X X 0 0 X X
* Not necessary when setting a frequency.
L See ADVANCED MANUAL Section 11 for the tone
frequency list.
• DTCS code and polarity setting
Command: 1B 02
q* w e
X X 0 X X X
Receive polarity: 0: Normal
Transmit polarity: 0: Normal
L See ADVANCED MANUAL Section 11 for the DTCS
code list.
• Digital code squelch setting
Command: 1B 07
q w
q
X X X 0
X X
• DV MY call sign setting
Command: 1F 00
Set your own call sign and note of up to 12
characters.
q ~ i o ~ !2
X X X X X X X X X X X X
• • •
q ~ i: Your own call sign setting (8 characters)
o ~ !2 : Note setting (4 characters)
e
X X
1: Reverse
1: Reverse
• DV TX call signs setting (24 characters)
Command: 1F 01
Set "UR," "R1," and "R2" call signs of 8 characters
(fixed).
q ~ i
X X • • • X X X X
q ~ i: UR (Destination) call sign setting
o ~ !6 : R1 (Access/Area repeater) call sign setting
!7 ~ @4 : R2 (Link/Gateway repeater) call sign setting
(8 characters)
Character's code of the call sign
Character ASCII code
0 ~ 9 30 ~ 39
A ~ Z 41 ~ 5A
(Space)
/
• DV TX message setting
Command: 1F 02
Set the transmit message of up to 20 characters.
L FF: stops sending or reading messages.
Character ASCII code Character ASCII code
A ~ Z 41 ~ 5A
0 ~ 9 30 ~ 39
! 21
$ 24
& 26
? 3F
' 27
^ 5E
– 2D
⁄ 2F
, 2C
; 3B
< 3C
(
28
[ 5B
{
7B
7C
|
¯ 7E
R-4
o ~ !6 !7 ~ @4
• • • X X X X • • • X X
20
2F
a ~ z 61 ~ 7A
Space 20
# 23
% 25
\ 5C
" 22
` 60
+ 2B
* 2A
. 2E
: 3A
= 3D
> 3E
)
29
] 5D
}
7D
_
5F
@ 40
