Remote Control function
Remote control (CI-V) information

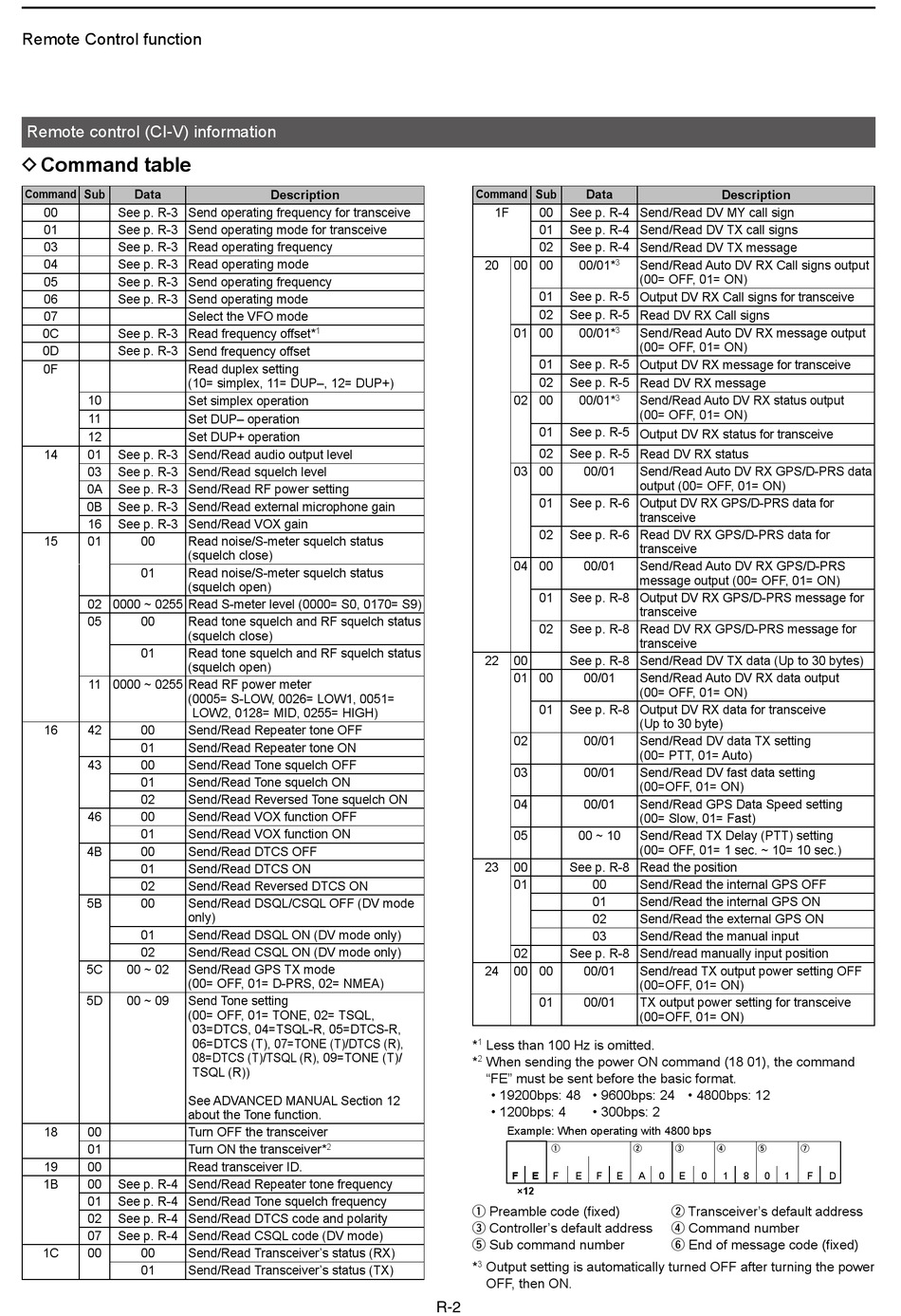

D Command table

Command Sub Data
00 See p. R-3 Send operating frequency for transceive
01 See p. R-3 Send operating mode for transceive
03 See p. R-3 Read operating frequency
04 See p. R-3 Read operating mode
05 See p. R-3 Send operating frequency
06 See p. R-3 Send operating mode
07 Select the VFO mode
0C See p. R-3 Read frequency offset*
0D See p. R-3 Send frequency offset
0F Read duplex setting
(10= simplex, 11= DUP–, 12= DUP+)
10 Set simplex operation
11 Set DUP– operation
12 Set DUP+ operation
14 01 See p. R-3 Send/Read audio output level
03 See p. R-3 Send/Read squelch level
0A See p. R-3 Send/Read RF power setting
0B See p. R-3 Send/Read external microphone gain
16 See p. R-3 Send/Read VOX gain
15 01 00 Read noise/S-meter squelch status
(squelch close)
01 Read noise/S-meter squelch status
(squelch open)
02 0000 ~ 0255 Read S-meter level (0000= S0, 0170= S9)
05 00 Read tone squelch and RF squelch status
(squelch close)
01 Read tone squelch and RF squelch status
(squelch open)
11 0000 ~ 0255 Read RF power meter
( 0005= S-LOW, 0026= LOW1, 0051=
16 42 00 Send/Read Repeater tone OFF
01 Send/Read Repeater tone ON
43 00 Send/Read Tone squelch OFF
01 Send/Read Tone squelch ON
02 Send/Read Reversed Tone squelch ON
46 00 Send/Read VOX function OFF
01 Send/Read VOX function ON
4B 00 Send/Read DTCS OFF
01 Send/Read DTCS ON
02 Send/Read Reversed DTCS ON
5B 00 Send/Read DSQL/CSQL OFF (DV mode
only)
01 Send/Read DSQL ON (DV mode only)
02 Send/Read CSQL ON (DV mode only)
5C 00 ~ 02 Send/Read GPS TX mode
(00= OFF, 01= D-PRS, 02= NMEA)
5D 00 ~ 09 Send Tone setting
( 00= OFF, 01= TONE, 02= TSQL,
See ADVANCED MANUAL Section 12
about the Tone function.
18 00 Turn OFF the transceiver
01 Turn ON the transceiver*
19 00 Read transceiver ID.
1B 00 See p. R-4 Send/Read Repeater tone frequency
01 See p. R-4 Send/Read Tone squelch frequency
02 See p. R-4 Send/Read DTCS code and polarity
07 See p. R-4 Send/Read CSQL code (DV mode)
1C 00 00 Send/Read Transceiver's status (RX)
01 Send/Read Transceiver's status (TX)
Description
1
LOW2, 0128= MID, 0255= HIGH)
03=DTCS, 04=TSQL-R, 05=DTCS-R,
06=DTCS (T), 07=TONE (T)/DTCS (R),
08=DTCS (T)/TSQL (R), 09=TONE (T)/
TSQL (R))
2
Command Sub Data
1F 00 See p. R-4 Send/Read DV MY call sign
01 See p. R-4 Send/Read DV TX call signs
02 See p. R-4 Send/Read DV TX message
20 00 00 00/01*
01 See p. R-5 Output DV RX Call signs for transceive
02 See p. R-5 Read DV RX Call signs
01 00 00/01*
01 See p. R-5 Output DV RX message for transceive
02 See p. R-5 Read DV RX message
02 00 00/01*
01 See p. R-5 Output DV RX status for transceive
02 See p. R-5 Read DV RX status
03 00 00/01
01 See p. R-6 Output DV RX GPS/D-PRS data for
02 See p. R-6 Read DV RX GPS/D-PRS data for
04 00 00/01
01 See p. R-8 Output DV RX GPS/D-PRS message for
02 See p. R-8 Read DV RX GPS/D-PRS message for
22 00 See p. R-8 Send/Read DV TX data (Up to 30 bytes)
01 00 00/01
01 See p. R-8 Output DV RX data for transceive
02 00/01
03 00/01
04 00/01
05 00 ~ 10
23 00 See p. R-8 Read the position
01 00
01
02
03
02 See p. R-8 Send/read manually input position
24 00 00 00/01
01 00/01
* 1 Less than 100 Hz is omitted.
* 2 When sending the power ON command (18 01), the command
"FE" must be sent before the basic format.
• 19200bps: 48 • 9600bps: 24 • 4800bps: 12
• 1200bps: 4 • 300bps: 2
Example: When operating with 4800 bps
q
F E F E F
×12
q Preamble code (fixed)
e Controller's default address
t Sub command number
* 3 Output setting is automatically turned OFF after turning the power
OFF, then ON.
R-2
Description
3 Send/Read Auto DV RX Call signs output
(00= OFF, 01= ON)
3 Send/Read Auto DV RX message output
(00= OFF, 01= ON)
3 Send/Read Auto DV RX status output
(00= OFF, 01= ON)
Send/Read Auto DV RX GPS/D-PRS data
output (00= OFF, 01= ON)
transceive
transceive
Send/Read Auto DV RX GPS/D-PRS
message output (00= OFF, 01= ON)
transceive
transceive
Send/Read Auto DV RX data output
(00= OFF, 01= ON)
(Up to 30 byte)
Send/Read DV data TX setting
(00= PTT, 01= Auto)
Send/Read DV fast data setting
(00=OFF, 01= ON)
Send/Read GPS Data Speed setting
(00= Slow, 01= Fast)
Send/Read TX Delay (PTT) setting
(00= OFF, 01= 1 sec. ~ 10= 10 sec.)
Send/Read the internal GPS OFF
Send/Read the internal GPS ON
Send/Read the external GPS ON
Send/Read the manual input
Send/read TX output power setting OFF
(00=OFF, 01= ON)
TX output power setting for transceive
(00=OFF, 01= ON)
w e r t
E A 0 E 0 1 8 0 1
w Transceiver's default address
r Command number
y End of message code (fixed)
u
F D
