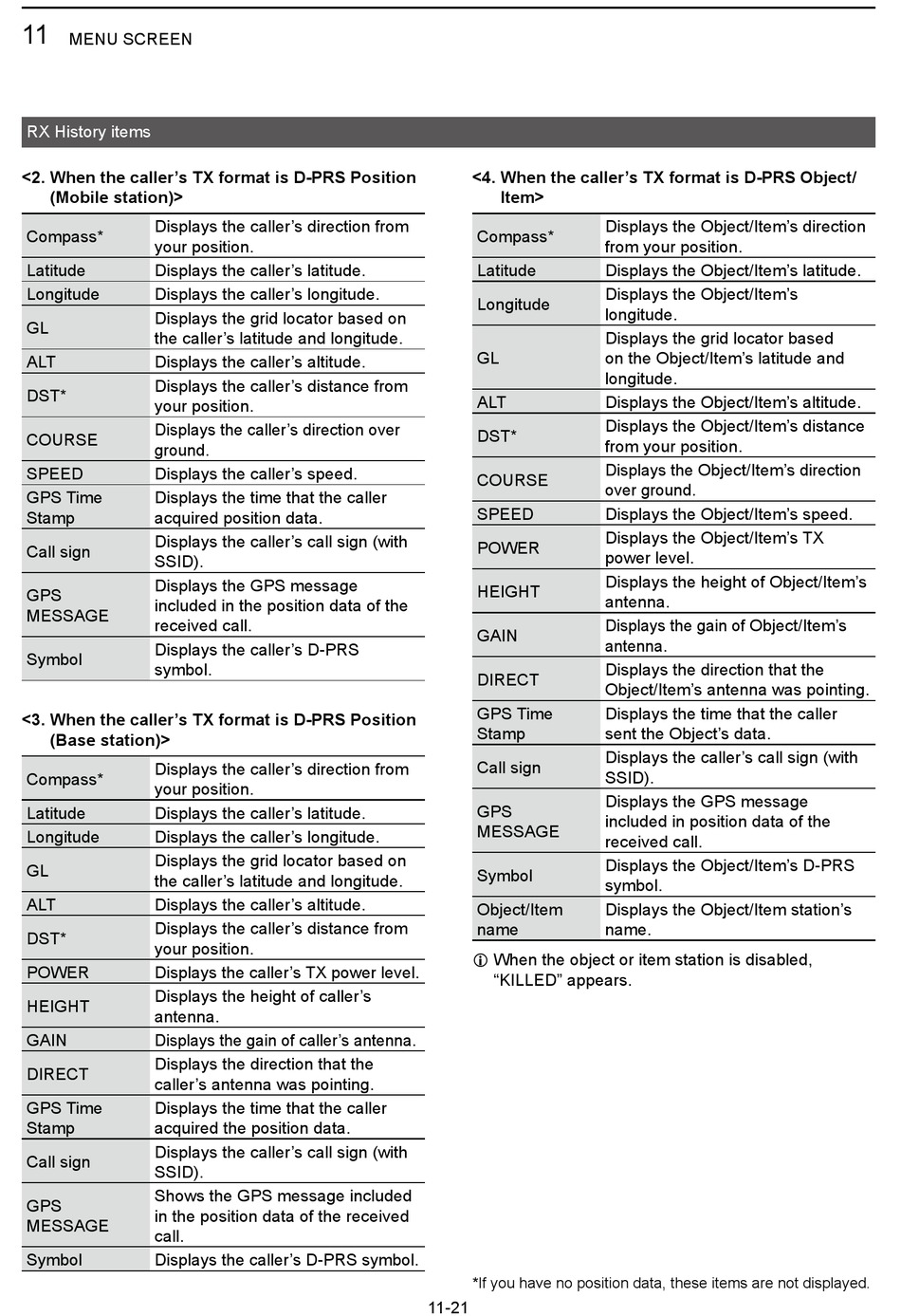

Icom ID-31A PLUS Advanced Manual page 164

11
MENU SCREEN
RX History items
<2. When the caller's TX format is D-PRS Position
(Mobile station)>
Displays the caller's direction from
Compass*
your position�
Latitude Displays the caller's latitude�
Longitude Displays the caller's longitude�
Displays the grid locator based on
GL
the caller's latitude and longitude�
ALT Displays the caller's altitude�
Displays the caller's distance from
DST*
your position�
Displays the caller's direction over
COURSE
ground�
SPEED Displays the caller's speed�
GPS Time Displays the time that the caller
Stamp acquired position data�
Displays the caller's call sign (with
Call sign
SSID)�
Displays the GPS message
GPS
included in the position data of the
MESSAGE
received call�
Displays the caller's D-PRS
Symbol
symbol�
<3. When the caller's TX format is D-PRS Position
(Base station)>
Displays the caller's direction from
Compass*
your position�
Latitude Displays the caller's latitude�
Longitude Displays the caller's longitude�
Displays the grid locator based on
GL
the caller's latitude and longitude�
ALT Displays the caller's altitude�
Displays the caller's distance from
DST*
your position�
POWER Displays the caller's TX power level�
Displays the height of caller's
HEIGHT
antenna�
GAIN Displays the gain of caller's antenna�
Displays the direction that the
DIRECT
caller's antenna was pointing�
GPS Time Displays the time that the caller
Stamp acquired the position data�
Displays the caller's call sign (with
Call sign
SSID)�
Shows the GPS message included
GPS
in the position data of the received
MESSAGE
call�
Symbol Displays the caller's D-PRS symbol�
<4. When the caller's TX format is D-PRS Object/
Item>
Compass*
Latitude
Longitude
GL
ALT
DST*
COURSE
SPEED
POWER
HEIGHT
GAIN
DIRECT
GPS Time
Stamp
Call sign
GPS
MESSAGE
Symbol
Object/Item
name
L When the object or item station is disabled,
"KILLED" appears�
*If you have no position data, these items are not displayed�
11-21
Displays the Object/Item's direction
from your position�
Displays the Object/Item's latitude�
Displays the Object/Item's
longitude�
Displays the grid locator based
on the Object/Item's latitude and
longitude�
Displays the Object/Item's altitude�
Displays the Object/Item's distance
from your position�
Displays the Object/Item's direction
over ground�
Displays the Object/Item's speed�
Displays the Object/Item's TX
power level�
Displays the height of Object/Item's
antenna�
Displays the gain of Object/Item's
antenna�
Displays the direction that the
Object/Item's antenna was pointing�
Displays the time that the caller
sent the Object's data�
Displays the caller's call sign (with
SSID)�
Displays the GPS message
included in position data of the
received call�
Displays the Object/Item's D-PRS
symbol�
Displays the Object/Item station's
name�
