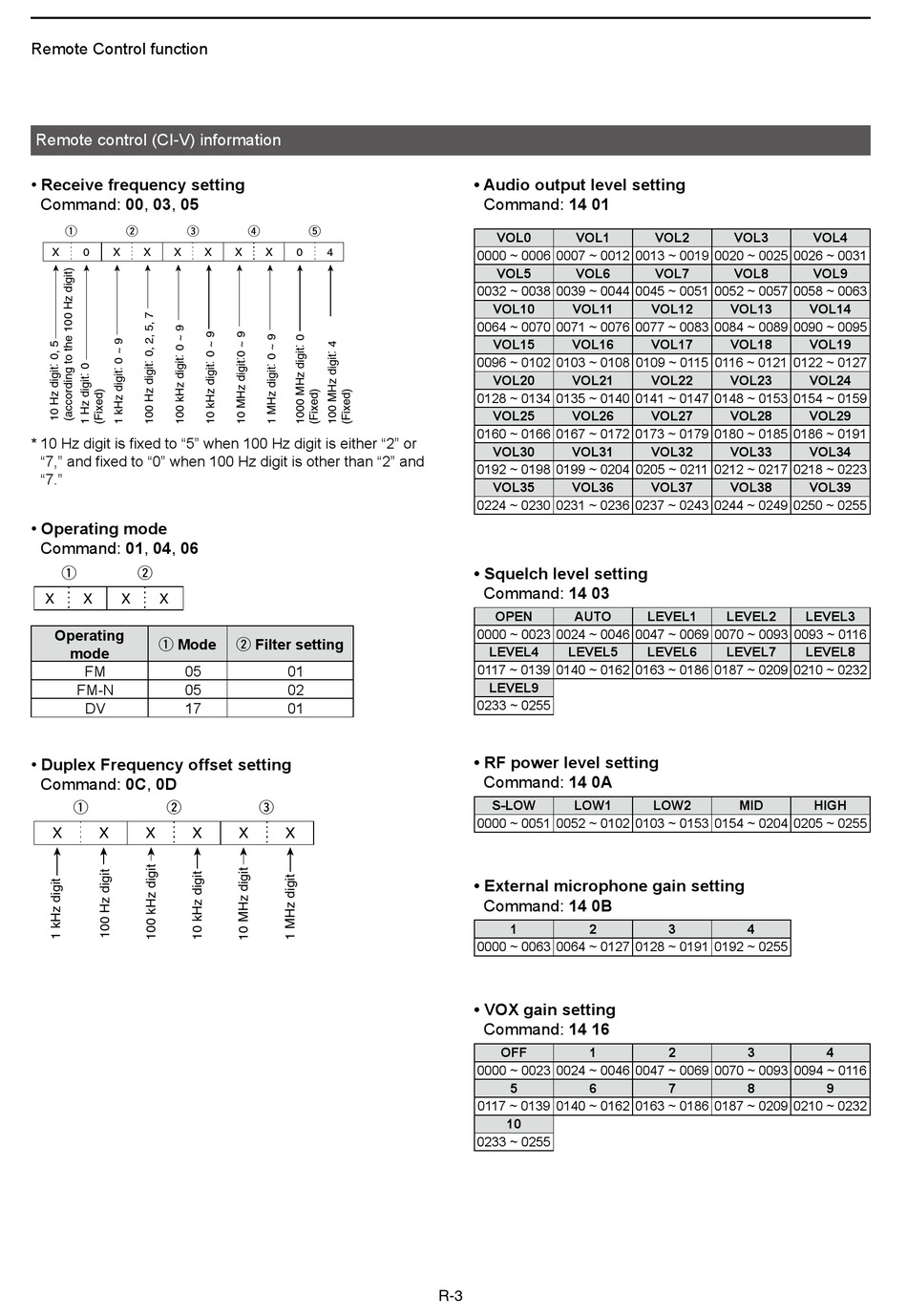

Remote Control function
Remote control (CI-V) information
• Receive frequency setting
Command: 00, 03, 05
q w e
X 0 X X X
* 10 Hz digit is fixed to "5" when 100 Hz digit is either "2" or
"7," and fixed to "0" when 100 Hz digit is other than "2" and
"7."
• Operating mode
Command: 01, 04, 06
q w
X X X X
Operating
q Mode
mode
FM 05
FM-N 05
DV 17
• Duplex Frequency offset setting
Command: 0C, 0D
q* q w e w
X X 0 X X X
X X X X
Receive polarity: 0: Normal
Transmit polarity: 0: Normal
q w
X X X 0
r t
X X X 0 4
w Filter setting
01
02
01
e
X X
1: Reverse
1: Reverse
• Audio output level setting
Command: 14 01
VOL0 VOL1
0000 ~ 0006 0007 ~ 0012 0013 ~ 0019 0020 ~ 0025 0026 ~ 0031
VOL5 VOL6
0032 ~ 0038 0039 ~ 0044 0045 ~ 0051 0052 ~ 0057 0058 ~ 0063
VOL10 VOL11
0064 ~ 0070 0071 ~ 0076 0077 ~ 0083 0084 ~ 0089 0090 ~ 0095
VOL15 VOL16
0096 ~ 0102 0103 ~ 0108 0109 ~ 0115 0116 ~ 0121 0122 ~ 0127
VOL20 VOL21
0128 ~ 0134 0135 ~ 0140 0141 ~ 0147 0148 ~ 0153 0154 ~ 0159
VOL25 VOL26
0160 ~ 0166 0167 ~ 0172 0173 ~ 0179 0180 ~ 0185 0186 ~ 0191
VOL30 VOL31
0192 ~ 0198 0199 ~ 0204 0205 ~ 0211 0212 ~ 0217 0218 ~ 0223
VOL35 VOL36
0224 ~ 0230 0231 ~ 0236 0237 ~ 0243 0244 ~ 0249 0250 ~ 0255
• Squelch level setting
Command: 14 03
OPEN AUTO
0000 ~ 0023 0024 ~ 0046 0047 ~ 0069 0070 ~ 0093 0093 ~ 0116
LEVEL4 LEVEL5
0117 ~ 0139 0140 ~ 0162 0163 ~ 0186 0187 ~ 0209 0210 ~ 0232
LEVEL9
0233 ~ 0255
• RF power level setting
Command: 14 0A
S-LOW LOW1
0000 ~ 0051 0052 ~ 0102 0103 ~ 0153 0154 ~ 0204 0205 ~ 0255
• External microphone gain setting
Command: 14 0B
1 2
0000 ~ 0063 0064 ~ 0127 0128 ~ 0191 0192 ~ 0255
• VOX gain setting
Command: 14 16
OFF 1
0000 ~ 0023 0024 ~ 0046 0047 ~ 0069 0070 ~ 0093 0094 ~ 0116
5 6
0117 ~ 0139 0140 ~ 0162 0163 ~ 0186 0187 ~ 0209 0210 ~ 0232
10
0233 ~ 0255
R-3
VOL2 VOL3 VOL4
VOL7 VOL8 VOL9
VOL12 VOL13 VOL14
VOL17 VOL18 VOL19
VOL22 VOL23 VOL24
VOL27 VOL28 VOL29
VOL32 VOL33 VOL34
VOL37 VOL38 VOL39
LEVEL1 LEVEL2 LEVEL3
LEVEL6 LEVEL7 LEVEL8
LOW2 MID HIGH
3 4
2 3
7 8
4
9
