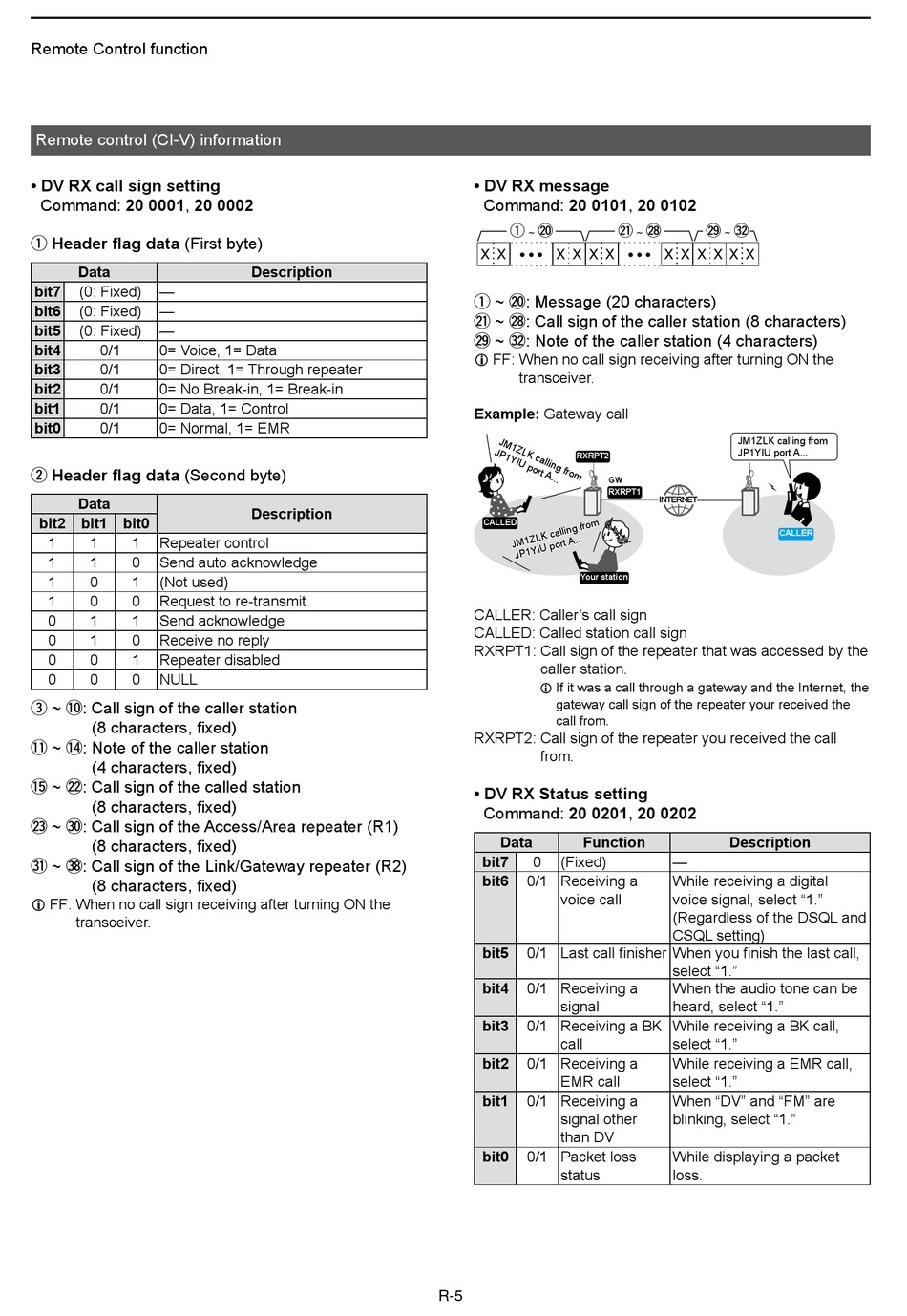

Remote Control function
Remote control (CI-V) information
• DV RX call sign setting
Command: 20 0001, 20 0002
q Header flag data (First byte)
Data
bit7 (0: Fixed) —
bit6
(0: Fixed) —
bit5 (0: Fixed) —
bit4 0/1 0= Voice, 1= Data
bit3 0/1 0= Direct, 1= Through repeater
bit2 0/1 0= No Break-in, 1= Break-in
bit1 0/1 0= Data, 1= Control
bit0 0/1 0= Normal, 1= EMR
w Header flag data (Second byte)
Data
bit2 bit1 bit0
1 1 1 Repeater control
1 1 0 Send auto acknowledge
1 0 1 (Not used)
1 0 0 Request to re-transmit
0 1 1 Send acknowledge
0 1 0 Receive no reply
0 0 1 Repeater disabled
0 0 0 NULL
e ~ !0 : Call sign of the caller station
(8 characters, fixed)
!1 ~ !4 : Note of the caller station
(4 characters, fixed)
!5 ~ @2 : Call sign of the called station
(8 characters, fixed)
@3 ~ #0 : Call sign of the Access/Area repeater (R1)
(8 characters, fixed)
#1 ~ #8 : Call sign of the Link/Gateway repeater (R2)
(8 characters, fixed)
L FF: When no call sign receiving after turning ON the
transceiver.
Description
Description
• DV RX message
Command: 20 0101, 20 0102
q @0
~
X X X X X X
• • •
q ~ @0 : Message (20 characters)
@1 ~ @8 : Call sign of the caller station (8 characters)
@9 ~ #2 : Note of the caller station (4 characters)
L FF: When no call sign receiving after turning ON the
transceiver.
Example: Gateway call
RXRPT2
GW
RXRPT1
CALLED
Your station
CALLER: Caller's call sign
CALLED: Called station call sign
RXRPT1: Call sign of the repeater that was accessed by the
caller station.
L If it was a call through a gateway and the Internet, the
gateway call sign of the repeater your received the
call from.
RXRPT2: Call sign of the repeater you received the call
from.
• DV RX Status setting
Command: 20 0201, 20 0202
Data Function
bit7 0 (Fixed)
bit6 0/1 Receiving a
voice call
bit5 0/1 Last call finisher When you finish the last call,
bit4 0/1 Receiving a
signal
bit3 0/1 Receiving a BK
call
bit2
0/1 Receiving a
EMR call
bit1 0/1 Receiving a
signal other
than DV
bit0 0/1 Packet loss
status
R-5
@1 @8 @9 #2
~ ~
X X X X X X
• • •
JM1ZLK calling from
JP1YIU port A...
INTERNET INTERNET
CALLER
Description
—
While receiving a digital
voice signal, select "1."
(Regardless of the DSQL and
CSQL setting)
select "1."
When the audio tone can be
heard, select "1."
While receiving a BK call,
select "1."
While receiving a EMR call,
select "1."
When "DV" and "FM" are
blinking, select "1."
While displaying a packet
loss.
