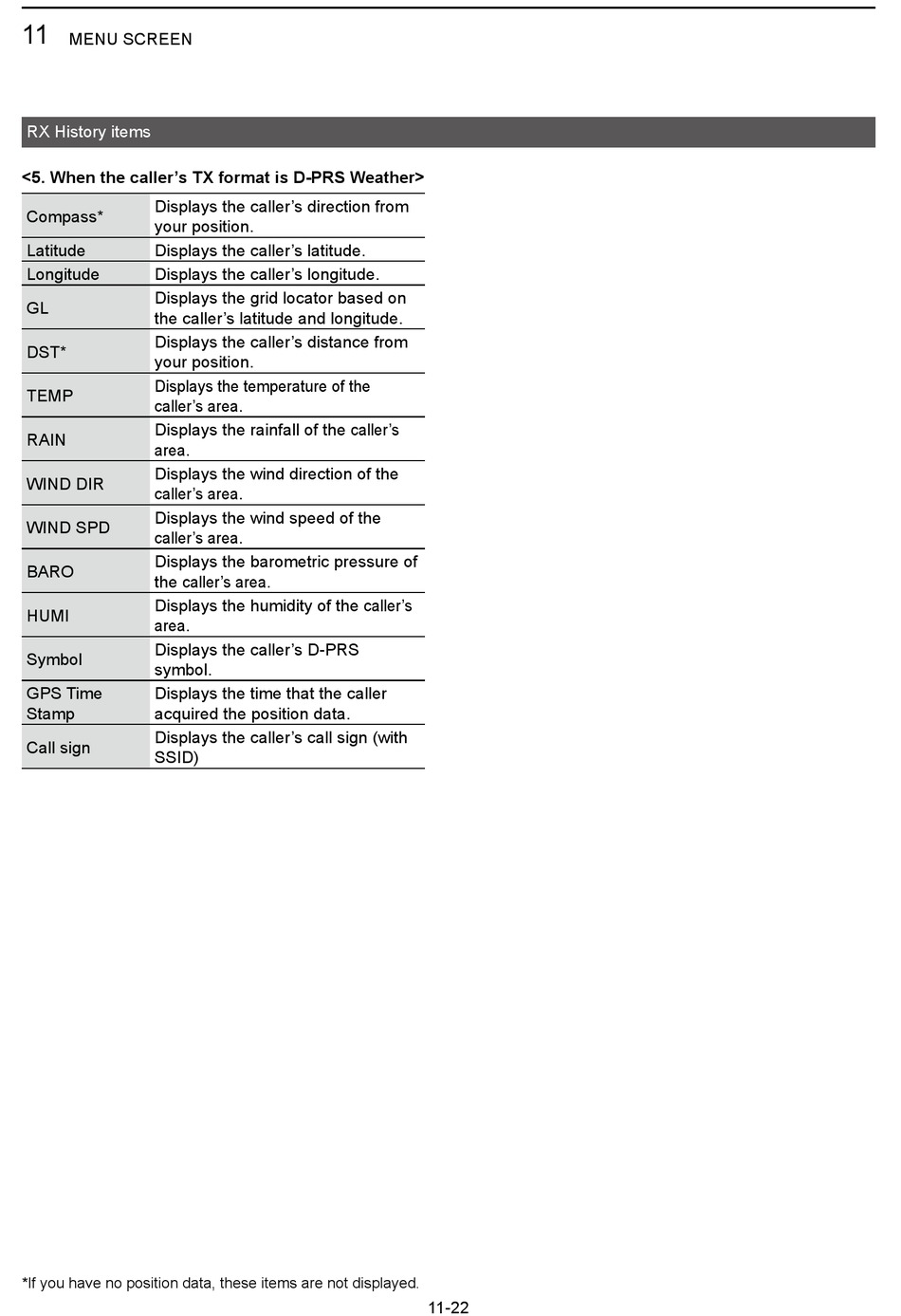

Icom ID-31A PLUS Advanced Manual page 165

11
MENU SCREEN
RX History items
<5. When the caller's TX format is D-PRS Weather>
Displays the caller's direction from
Compass*
your position�
Latitude Displays the caller's latitude�
Longitude Displays the caller's longitude�
Displays the grid locator based on
GL
the caller's latitude and longitude�
Displays the caller's distance from
DST*
your position�
Displays the temperature of the
TEMP
caller's area�
Displays the rainfall of the caller's
RAIN
area�
Displays the wind direction of the
WIND DIR
caller's area�
Displays the wind speed of the
WIND SPD
caller's area�
Displays the barometric pressure of
BARO
the caller's area�
Displays the humidity of the caller's
HUMI
area�
Displays the caller's D-PRS
Symbol
symbol�
GPS Time Displays the time that the caller
Stamp acquired the position data�
Displays the caller's call sign (with
Call sign
SSID)
*If you have no position data, these items are not displayed�
11-22
