Mounting Brocade MLXe Series-4, -8, or -16 routers in a 4-post EIA rack
6. Secure the transport brackets to the rear of the router using 10 10-32 screws, and to the EIA rack mounting posts using 6
10-32 screws, as shown in the following figure.
NOTE
The transport brackets provide extra stability, and must be installed if you plan to ship the device while it is mounted in
the EIA rack. Before you install the transport brackets, you must first remove any installed fans.

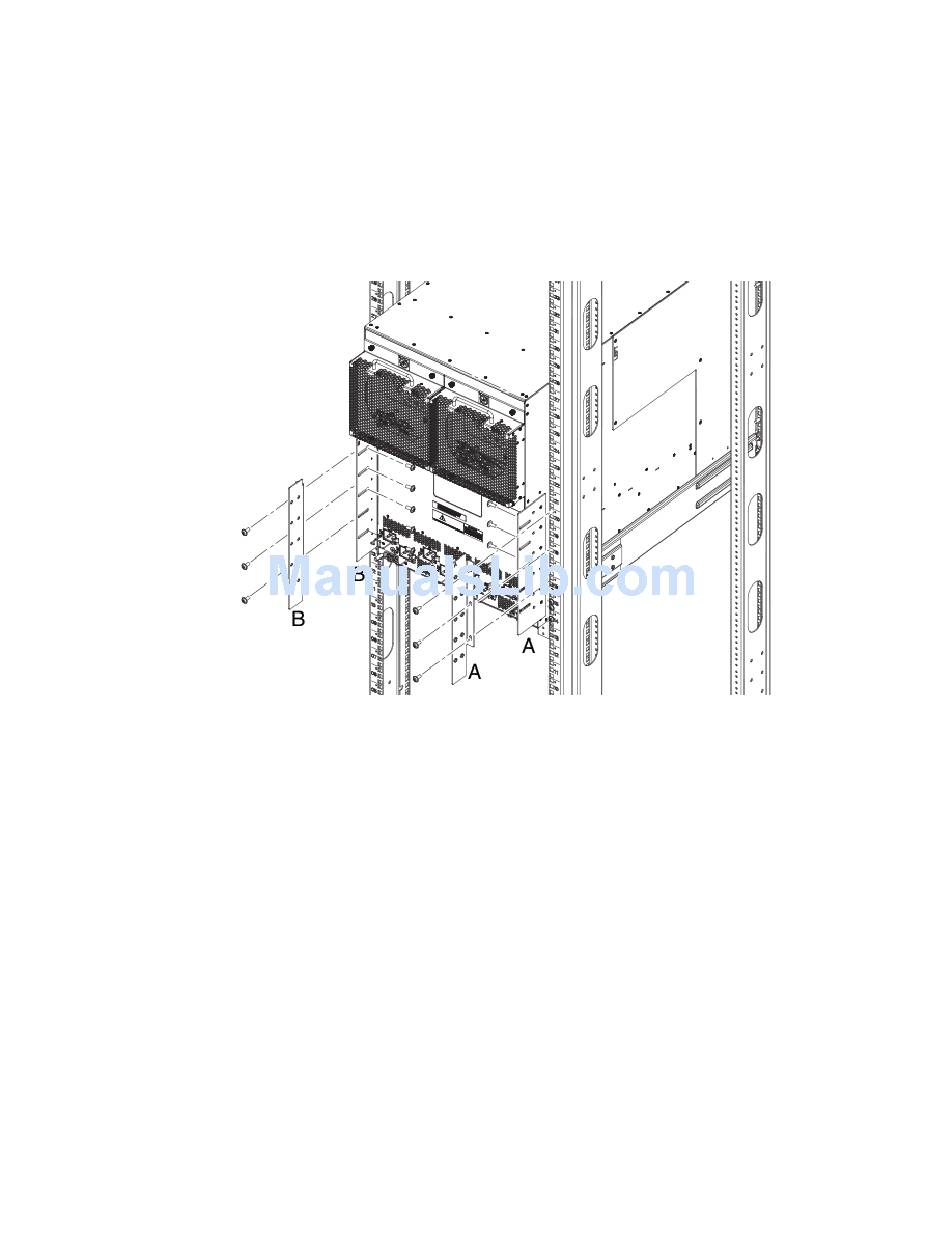

FIGURE 57 Secure transport brackets to the device and EIA rack mounting posts
