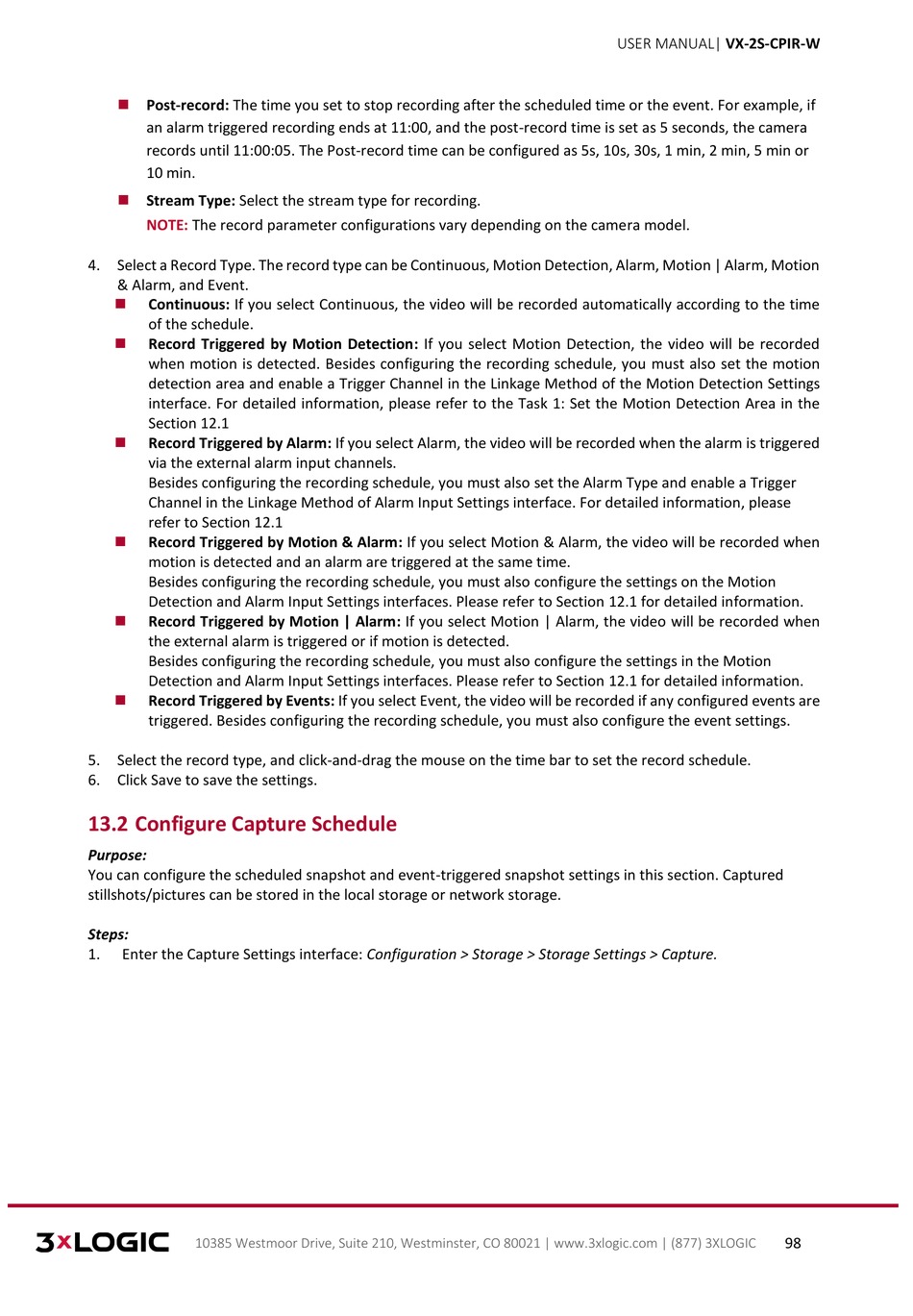

Post-record: The time you set to stop recording after the scheduled time or the event. For example, if
an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the camera
records until 11:00:05. The Post-record time can be configured as 5s, 10s, 30s, 1 min, 2 min, 5 min or
10 min.

Stream Type: Select the stream type for recording.
NOTE: The record parameter configurations vary depending on the camera model.
4. Select a Record Type. The record type can be Continuous, Motion Detection, Alarm, Motion | Alarm, Motion
& Alarm, and Event.

Continuous: If you select Continuous, the video will be recorded automatically according to the time
of the schedule.

Record Triggered by Motion Detection: If you select Motion Detection, the video will be recorded
when motion is detected. Besides configuring the recording schedule, you must also set the motion
detection area and enable a Trigger Channel in the Linkage Method of the Motion Detection Settings
interface. For detailed information, please refer to the Task 1: Set the Motion Detection Area in the
Section 12.1

Record Triggered by Alarm: If you select Alarm, the video will be recorded when the alarm is triggered
via the external alarm input channels.
Besides configuring the recording schedule, you must also set the Alarm Type and enable a Trigger
Channel in the Linkage Method of Alarm Input Settings interface. For detailed information, please
refer to Section 12.1

Record Triggered by Motion & Alarm: If you select Motion & Alarm, the video will be recorded when
motion is detected and an alarm are triggered at the same time.
Besides configuring the recording schedule, you must also configure the settings on the Motion
Detection and Alarm Input Settings interfaces. Please refer to Section 12.1 for detailed information.

Record Triggered by Motion | Alarm: If you select Motion | Alarm, the video will be recorded when
the external alarm is triggered or if motion is detected.
Besides configuring the recording schedule, you must also configure the settings in the Motion
Detection and Alarm Input Settings interfaces. Please refer to Section 12.1 for detailed information.

Record Triggered by Events: If you select Event, the video will be recorded if any configured events are
triggered. Besides configuring the recording schedule, you must also configure the event settings.
5. Select the record type, and click-and-drag the mouse on the time bar to set the record schedule.
6. Click Save to save the settings.

13.2 Configure Capture Schedule

Purpose:
You can configure the scheduled snapshot and event-triggered snapshot settings in this section. Captured
stillshots/pictures can be stored in the local storage or network storage.
Steps:
1. Enter the Capture Settings interface: Configuration > Storage > Storage Settings > Capture.
