Add a Lock
a. Select the Lock Switch as ON.
b. Input the password.
c. Click Save to save the settings.
Unlock
a. If you use the memory card on the camera configured to lock the card, unlocking will be done
automatically and no unlocking procedures are required on the part of the user.
b. If you use the memory card (with a lock) on a different camera, you can go to the HDD Management
interface to unlock the memory card. Select the memory card, click the Unlock button shown next to
the Format button. Input the correct password to unlock the memory card.
NOTES:
►
The memory card's read and write capabilities can only be used when unlocked.
►
If the camera is restored to the factory settings while the card is locked, you can go to the HDD
Management interface to unlock the memory card.
Remove the Lock
a. Select the Lock Switch as OFF.
b. Input the correct password in the Password Settings text field.
c. Click Save to save the settings.
4. Set the Arming Schedule and Linkage Method if you want to receive a notification when the memory card's
health status is switched from "Good". Refer to Task 2: Set the Arming Schedule for Motion Detection and
Task 3: Set the Linkage Method for Motion Detection in Section 12.1.
5. Click Save to save the settings.

13.5 Configuring Lite Storage

When there is no moving object detected in a scene being recorded by the camera, the frame rate and bitrate
of the video stream can be reduced to reduce storage usage on the memory card.
NOTES:
►
Lite storage function varies according to different camera models.
►
The video files recorded in lite storage mode will be played back in full frame rate (25fps/30fps), and
thus the playback speed appears faster than normal.
1. Enter the Lite Storage interface:
Configuration > Storage > Storage Management > Lite Storage
2. Check off Enable to enable the lite storage function.
3. Input the storage time in the text field. You can view the memory card's available storage capacity on the
page.
4. Click Save to save the settings.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

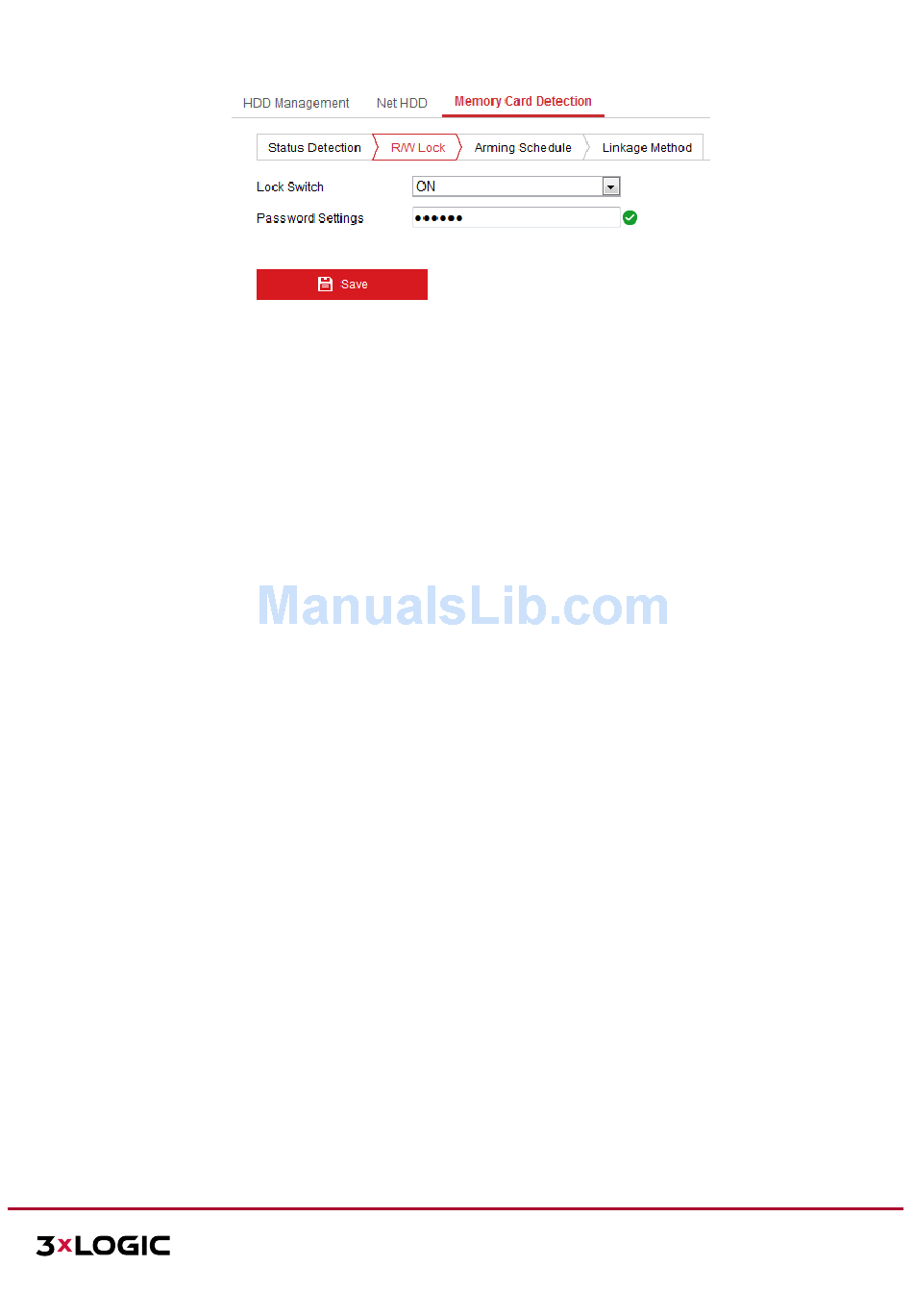

R/W Lock Setting
