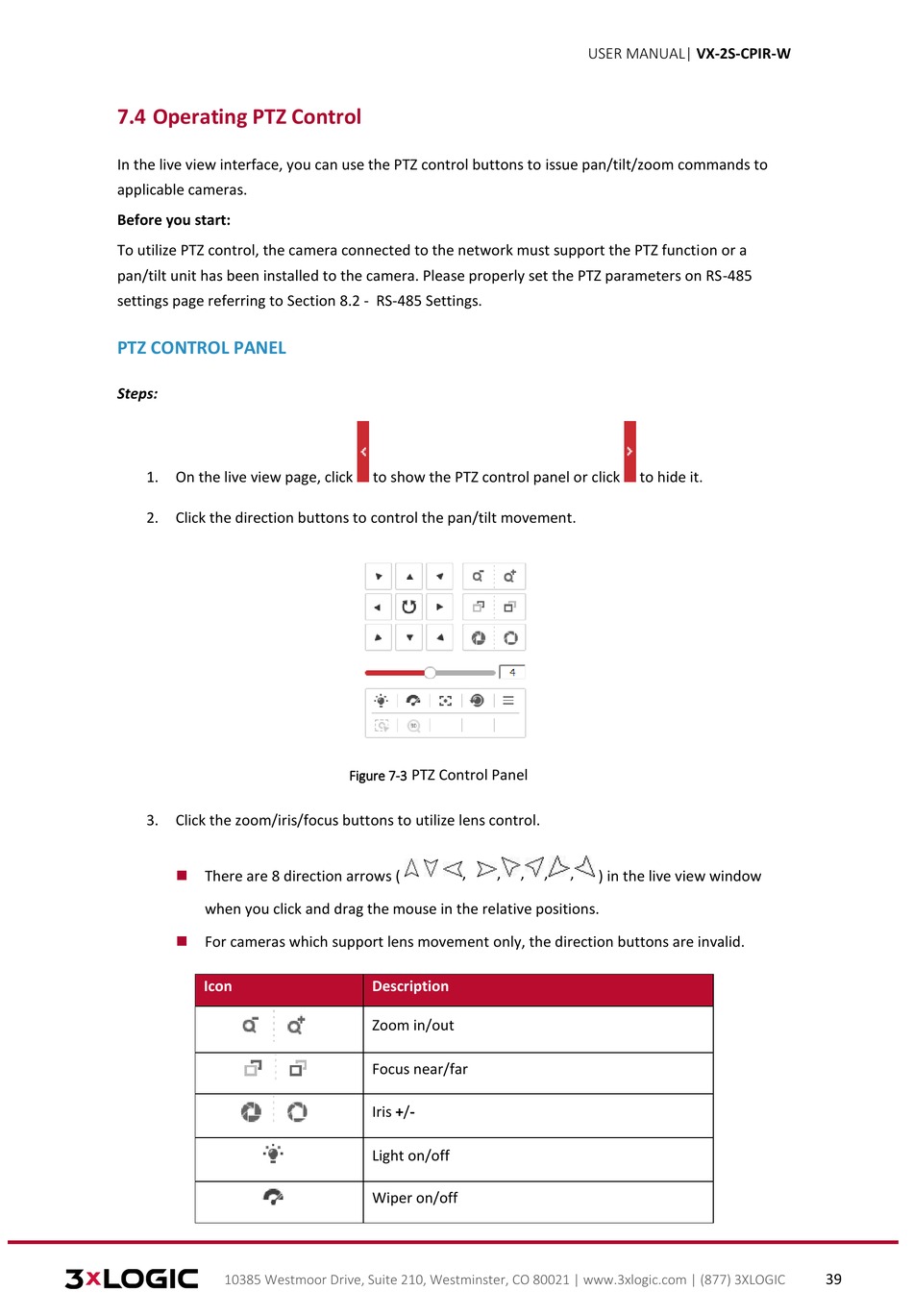

7.4 Operating PTZ Control

In the live view interface, you can use the PTZ control buttons to issue pan/tilt/zoom commands to
applicable cameras.
Before you start:
To utilize PTZ control, the camera connected to the network must support the PTZ function or a
pan/tilt unit has been installed to the camera. Please properly set the PTZ parameters on RS-485
settings page referring to Section 8.2 - RS-485 Settings.

PTZ CONTROL PANEL

Steps:
1. On the live view page, click
2. Click the direction buttons to control the pan/tilt movement.
3. Click the zoom/iris/focus buttons to utilize lens control.

There are 8 direction arrows (
when you click and drag the mouse in the relative positions.

For cameras which support lens movement only, the direction buttons are invalid.
Icon
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
to show the PTZ control panel or click
PTZ Control Panel
Figure 7-3
, , ,
Description
Zoom in/out
Focus near/far
Iris +/-
Light on/off
Wiper on/off
USER MANUAL| VX-2S-CPIR-W
to hide it.
, ,
) in the live view window
