CONFIGURING RS232 SETTINGS

The RS232 port can be used in two ways:

Parameters Configuration: Connect a computer to the camera through the serial port. Device
parameters can be configured by using software such as HyperTerminal. The serial port
parameters must be the same as the serial port parameters of the camera.

Transparent Channel: Connect a serial device directly to the camera. The serial device will be
controlled remotely by the computer through the network.
Steps:
1. Enter the RS232 Port Settings interface: Configuration> System > System Settings > RS232.
2. Configure the Baud Rate, Data Bit, Stop Bit, Parity, Flow Control, and Usage.
NOTE: If you want to connect the camera via the RS232 port, the parameters of the RS232 should be
exactly the same as the parameters you configured here.
3. Click Save to save the settings.

CONFIGURING RS485 SETTINGS

The RS485 serial port is used to control a third party PTZ mount for the camera. The configuring of the
PTZ parameters should always be performed before controlling the PTZ unit.
Steps:
1. Enter the RS-485 Port Settings interface: Configuration > System > System Settings > RS485.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

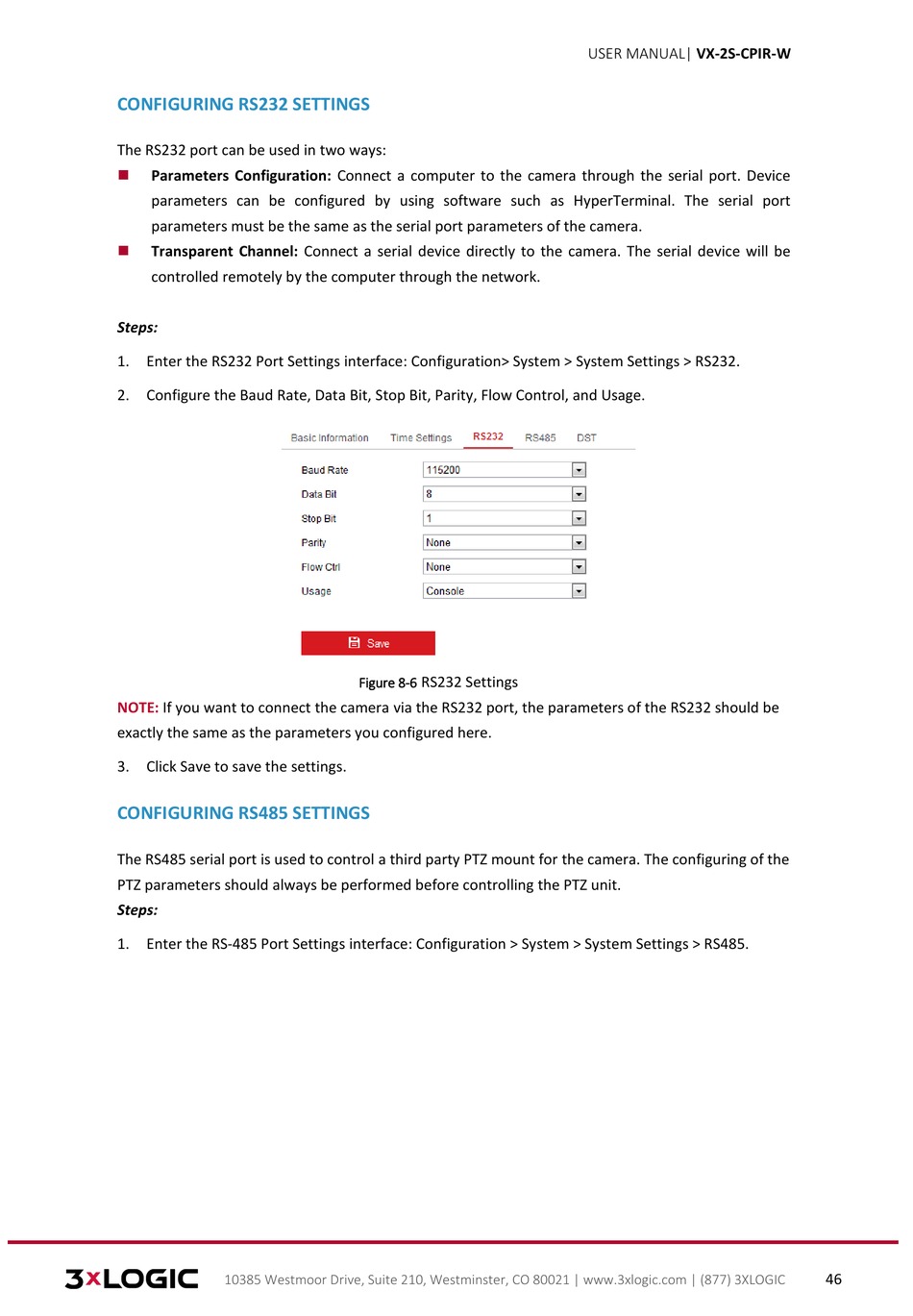

RS232 Settings
