Configuring Dst Settings - 3xLogic VX-2S-CPIR-W User Manual

2. Set the RS485 parameters and click Save to save the settings.
By default, the Baud Rate is set as 9600 bps, the Data Bit is 8, the stop bit is 1 and the Parity and
Flow Control is None.
NOTE: The Baud Rate, PTZ Protocol and PTZ Address parameters should be exactly the same as the
PTZ camera parameters.

CONFIGURING DST SETTINGS

Daylight Savings Time (DST) is a way of making better use of the natural daylight by setting your clock
forward one hour during the summer months, and back again in the fall.
Configure DST according to your surveillance environment's need.
Steps:
1. Enter the DST configuration interface: Configuration > System > System Settings > DST
2. Select the start time and the end time.
3. Select the DST Bias.
4. Click Save to activate the settings.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

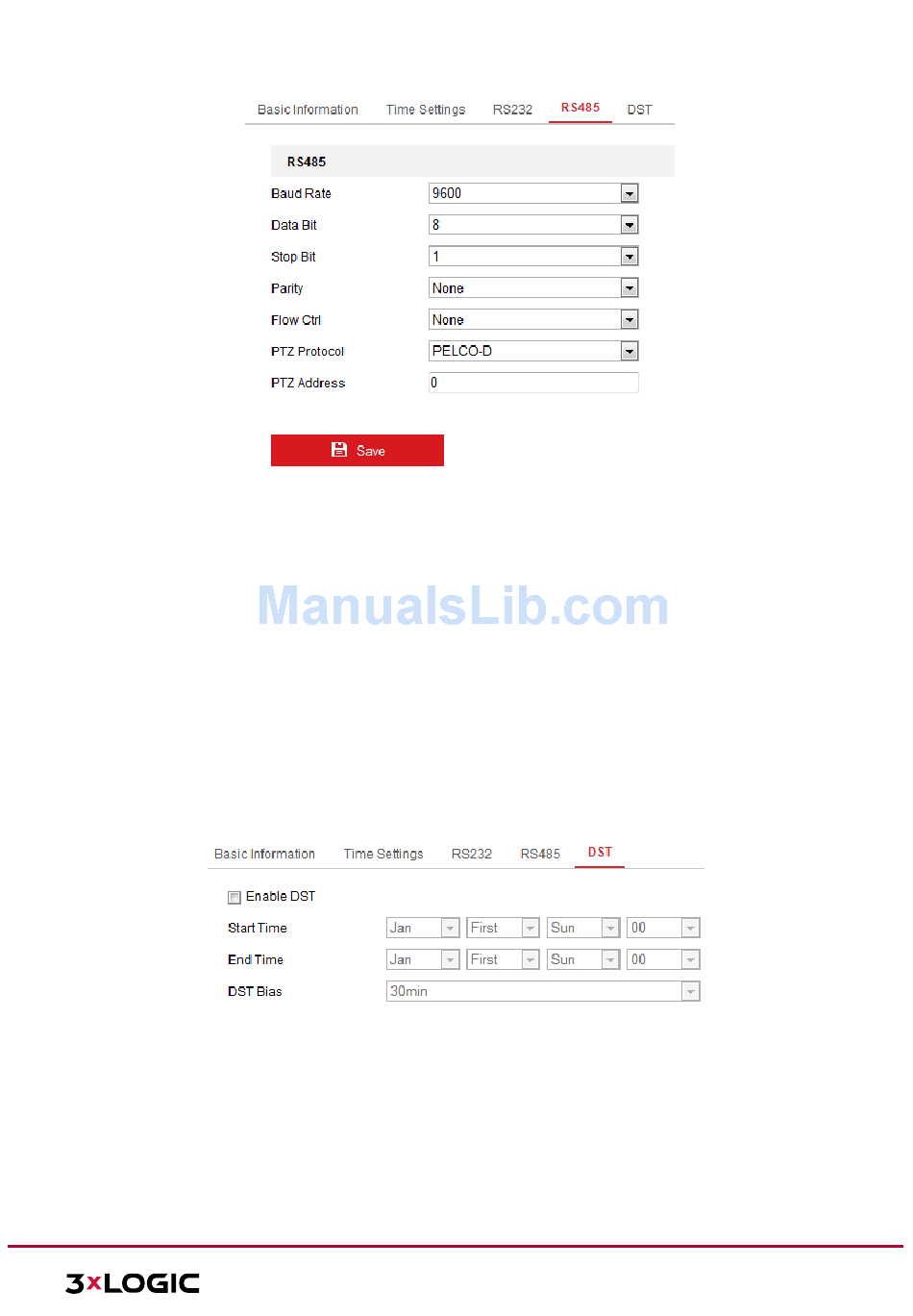

RS-485 Settings
Figure 8-7
DST Settings
Figure 8-8
USER MANUAL| VX-2S-CPIR-W
47
