Task 2: Set the Arming Schedule for Motion Detection
Steps:
1. Click Arming Schedule to edit the arming schedule.
2. Click on the time bar and drag the mouse to select the time period.
NOTE: Click on the selected time period, you can adjust the time period to the desired time by
either moving the time bar or inputting the exact time period.
3. (Optional) Click Delete to delete the current arming schedule, or click Save to save the settings.
4. Move the mouse to the end of each day, a copy dialogue box pops up, and you can copy the
current settings to other days.
5. Click Save to save the settings.
NOTE: Time periods cannot be overlapped. Up to 8 periods can be configured for each day.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

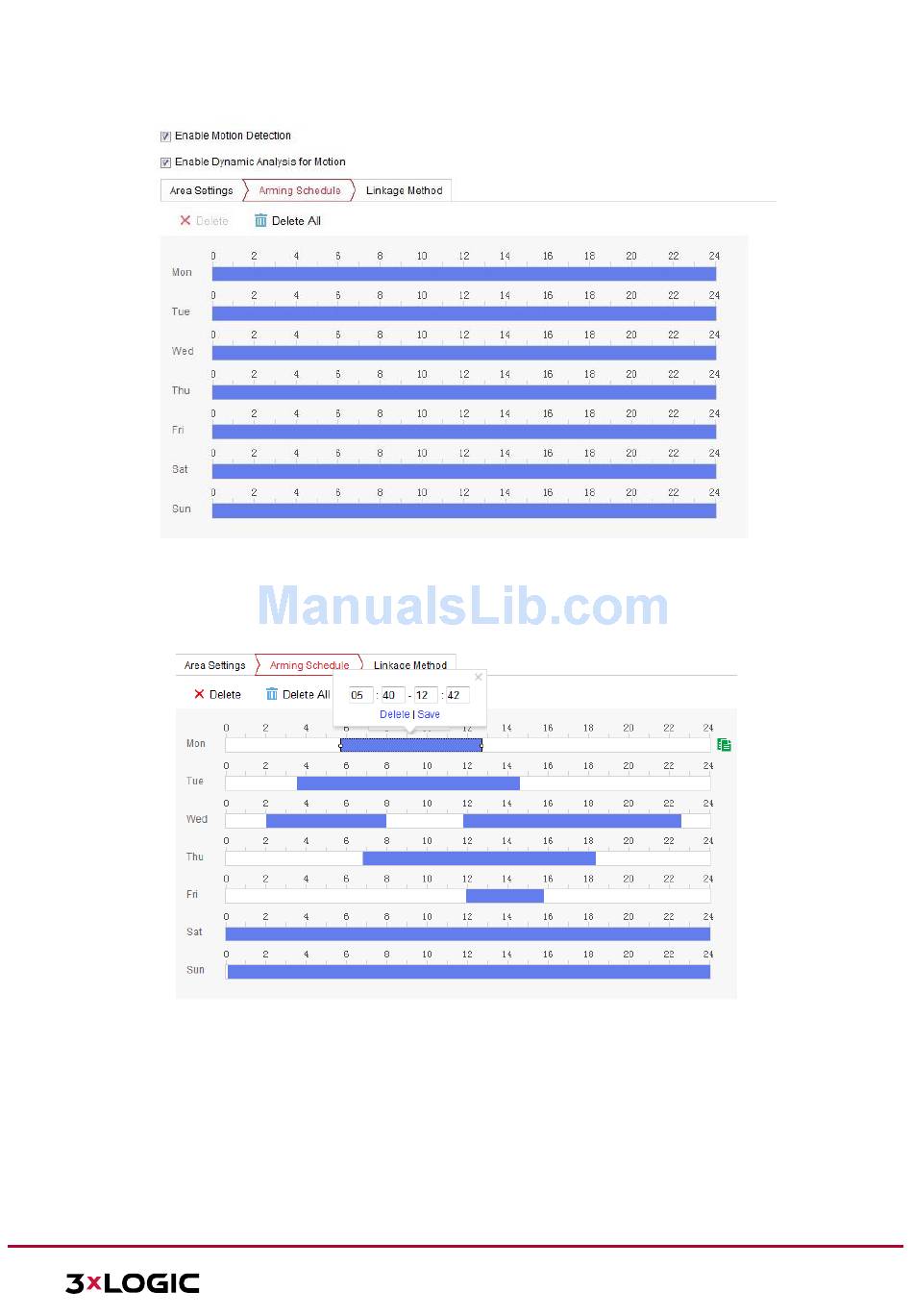

Arming Schedule
Figure 12-2
Arming Schedule
Figure 12-3
