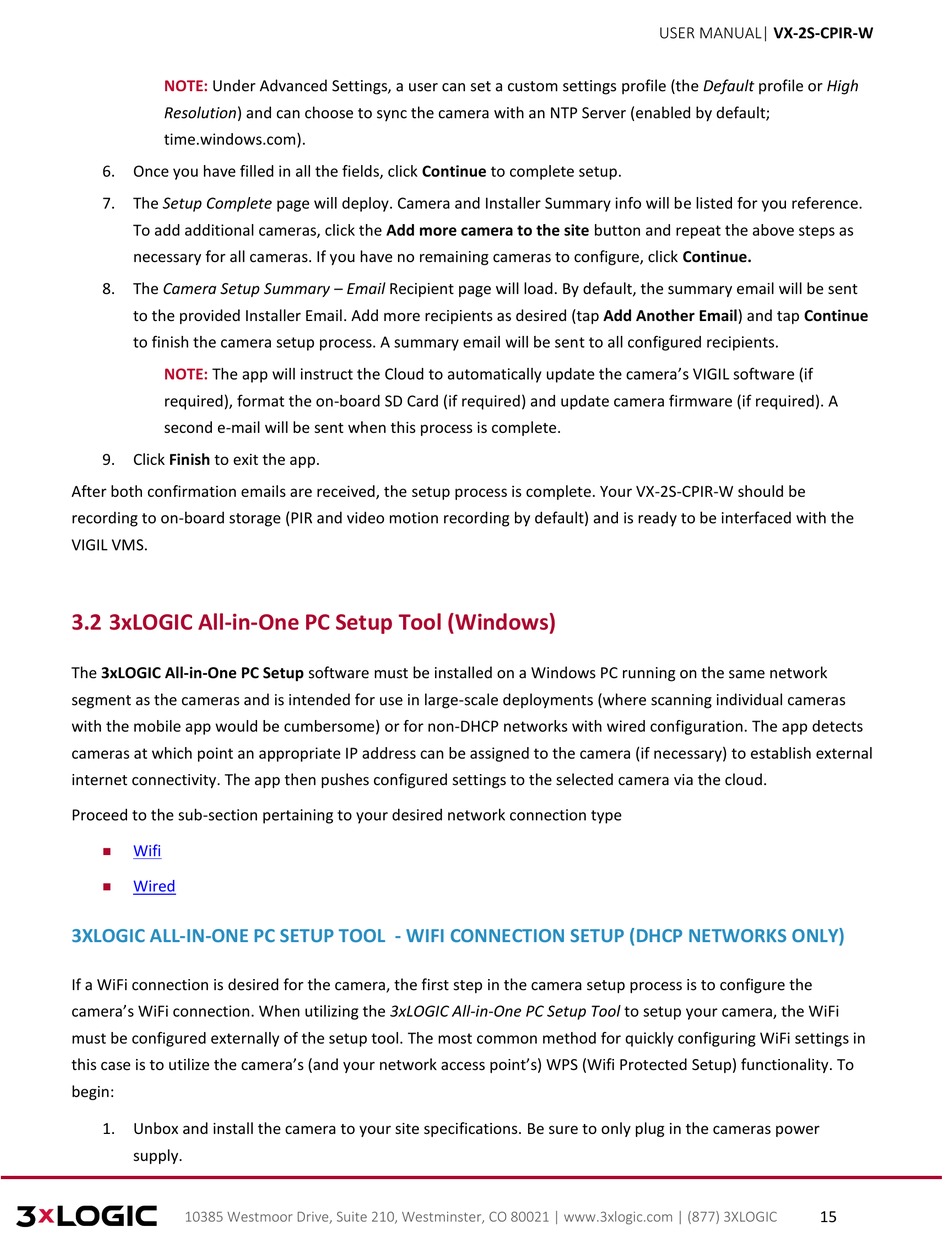

NOTE: Under Advanced Settings, a user can set a custom settings profile (the Default profile or High
Resolution) and can choose to sync the camera with an NTP Server (enabled by default;
time.windows.com).
6. Once you have filled in all the fields, click Continue to complete setup.
7. The Setup Complete page will deploy. Camera and Installer Summary info will be listed for you reference.
To add additional cameras, click the Add more camera to the site button and repeat the above steps as
necessary for all cameras. If you have no remaining cameras to configure, click Continue.
8. The Camera Setup Summary – Email Recipient page will load. By default, the summary email will be sent
to the provided Installer Email. Add more recipients as desired (tap Add Another Email) and tap Continue
to finish the camera setup process. A summary email will be sent to all configured recipients.
NOTE: The app will instruct the Cloud to automatically update the camera's VIGIL software (if
required), format the on-board SD Card (if required) and update camera firmware (if required). A
second e-mail will be sent when this process is complete.
9. Click Finish to exit the app.
After both confirmation emails are received, the setup process is complete. Your VX-2S-CPIR-W should be
recording to on-board storage (PIR and video motion recording by default) and is ready to be interfaced with the
VIGIL VMS.
3.2 3xLOGIC All-in-One PC Setup Tool (Windows)
The 3xLOGIC All-in-One PC Setup software must be installed on a Windows PC running on the same network
segment as the cameras and is intended for use in large-scale deployments (where scanning individual cameras
with the mobile app would be cumbersome) or for non-DHCP networks with wired configuration. The app detects
cameras at which point an appropriate IP address can be assigned to the camera (if necessary) to establish external
internet connectivity. The app then pushes configured settings to the selected camera via the cloud.
Proceed to the sub-section pertaining to your desired network connection type
Wifi

Wired


3XLOGIC ALL-IN-ONE PC SETUP TOOL - WIFI CONNECTION SETUP (DHCP NETWORKS ONLY)

If a WiFi connection is desired for the camera, the first step in the camera setup process is to configure the
camera's WiFi connection. When utilizing the 3xLOGIC All-in-One PC Setup Tool to setup your camera, the WiFi
must be configured externally of the setup tool. The most common method for quickly configuring WiFi settings in
this case is to utilize the camera's (and your network access point's) WPS (Wifi Protected Setup) functionality. To
begin:
1. Unbox and install the camera to your site specifications. Be sure to only plug in the cameras power
supply.
