IP PROPERTY SETTINGS FOR WIRELESS NETWORK CONNECTION

The default IP address of wireless network interface controller is 192.168.1.64. When you connect the wireless
network you can change the default IP.
Steps:
1. Enter the TCP/IP configuration interface: Configuration > Advanced Configuration > Network> TCP/IP or
Configuration > Basic Configuration> Network > TCP/IP
2. Select the NIC as WLAN.
3. Customize the IPv4 address, the IPv4 Subnet Mask and the Default Gateway. The settings configuration
procedure is the same with that of LAN. If you want to be assigned the IP address check the DHCP
checkbox.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

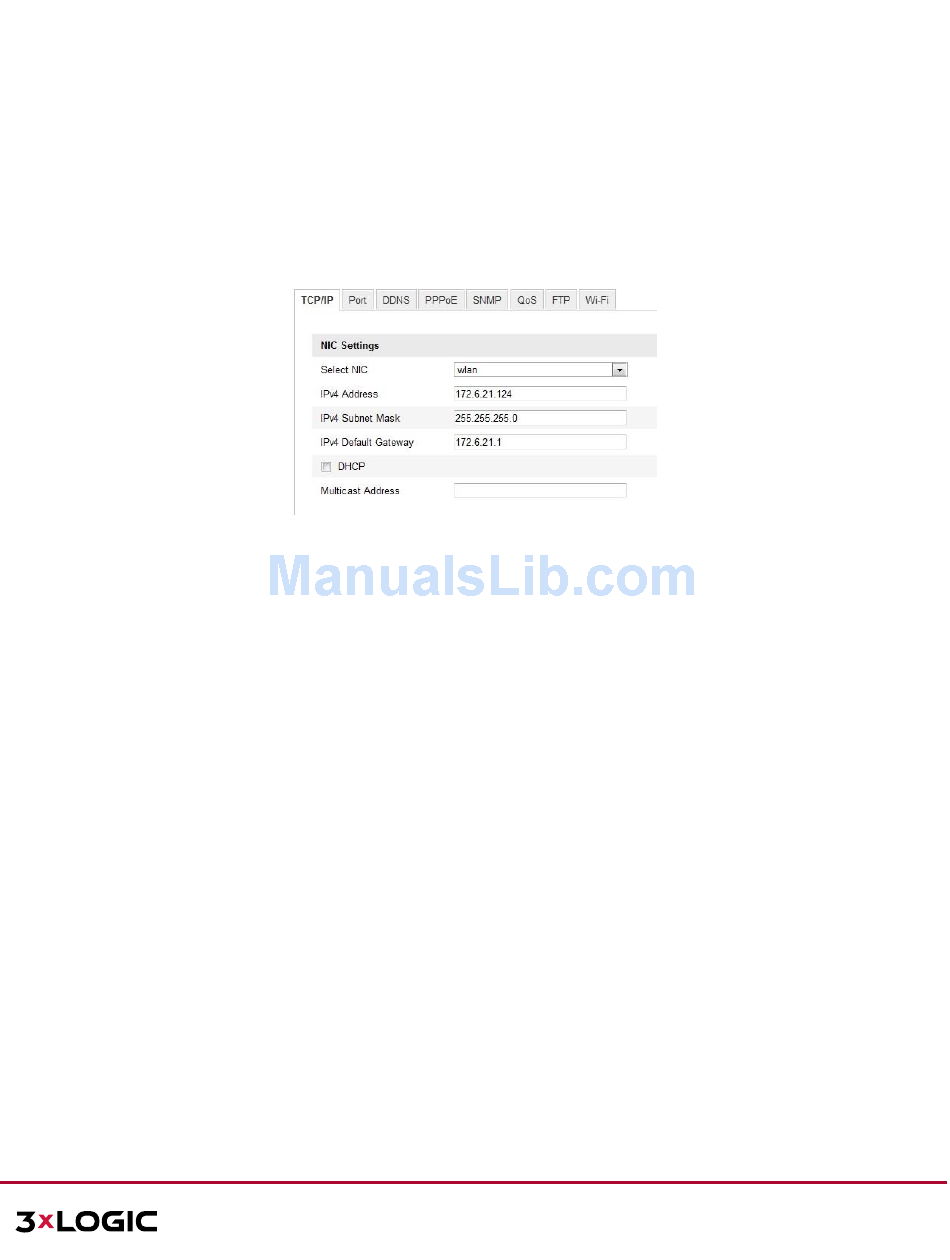

TCP/IP Settings
Figure 5-19
