Live View

7.1 Live View Page

The live view page allows you to view the real-time video, capture images, utilize PTZ control, set/call presets
and configure video parameters.
Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main
page to enter the live view page.
LIVE VIEW PAGE – COMPONENT DESCRIPTIONS

Menu Bar: Click each tab to enter Live View, Playback, Log and Configuration page respectively.

Display Control: Click available buttons to open corresponding tabs to change stream type and aspect
ratio. Click the plug-ins drop-down to select available plug-in

Live View Window: Displays live video from the camera.

Toolbar: Operations on the live view page, e.g., live view, capture, record, audio on/off, two-way audio,
etc.

PTZ Control: Panning, tilting and zooming functions for the camera and the lighter and wiper control (if
aux PTZ functions are supported or an external pan/tilt unit has been installed).

Preset Setting/Calling: Set and call the preset for the camera (if supports PTZ preset functionality is
supported or an external pan/tilt unit has been installed).
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
View Page

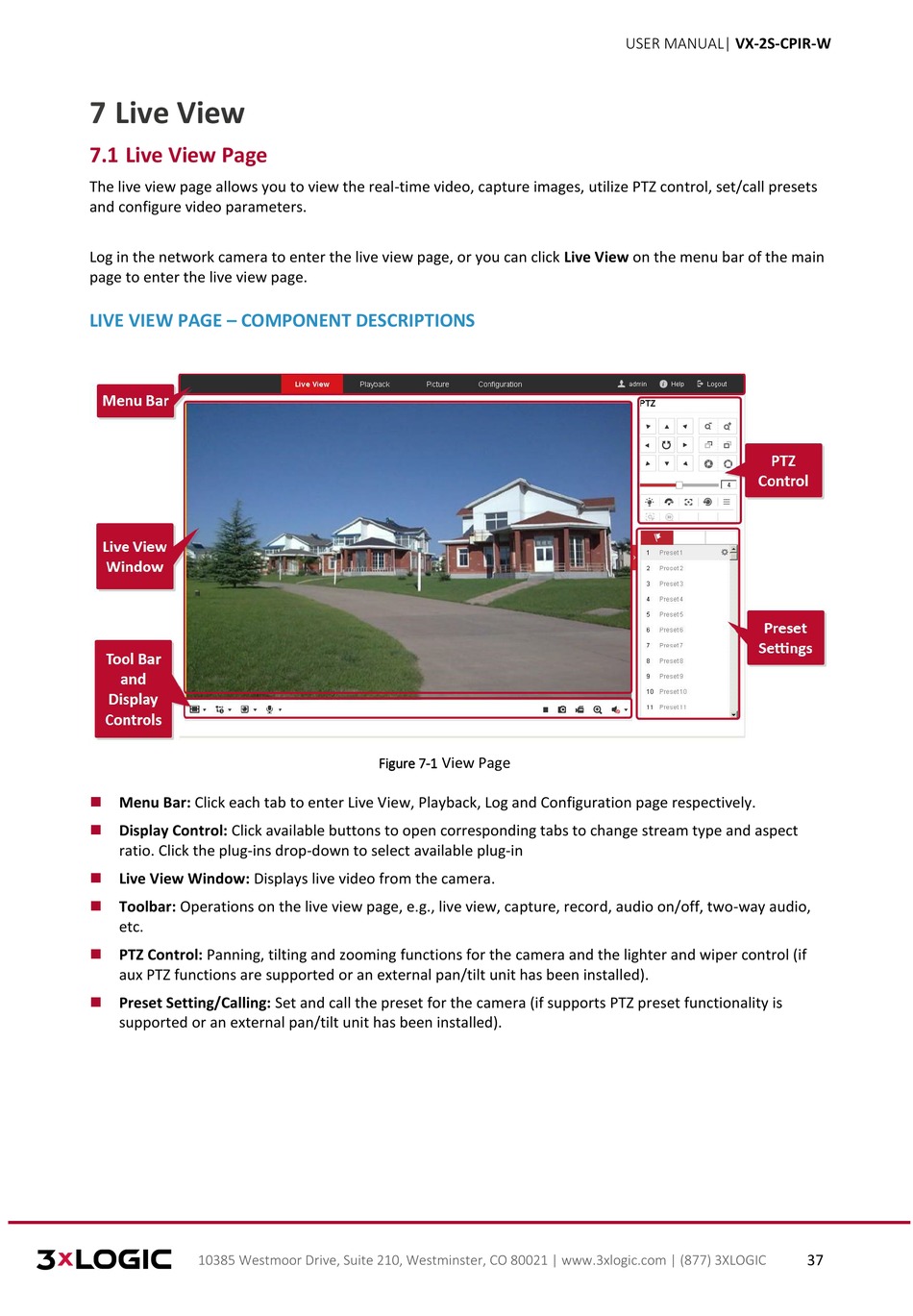

Figure 7-1
