3xLogic VX-2S-CPIR-W User Manual page 33

USER MANUAL| VX-2S-CPIR-W
Steps:
1. Choose a wireless connection on the list to reveal the SSID.

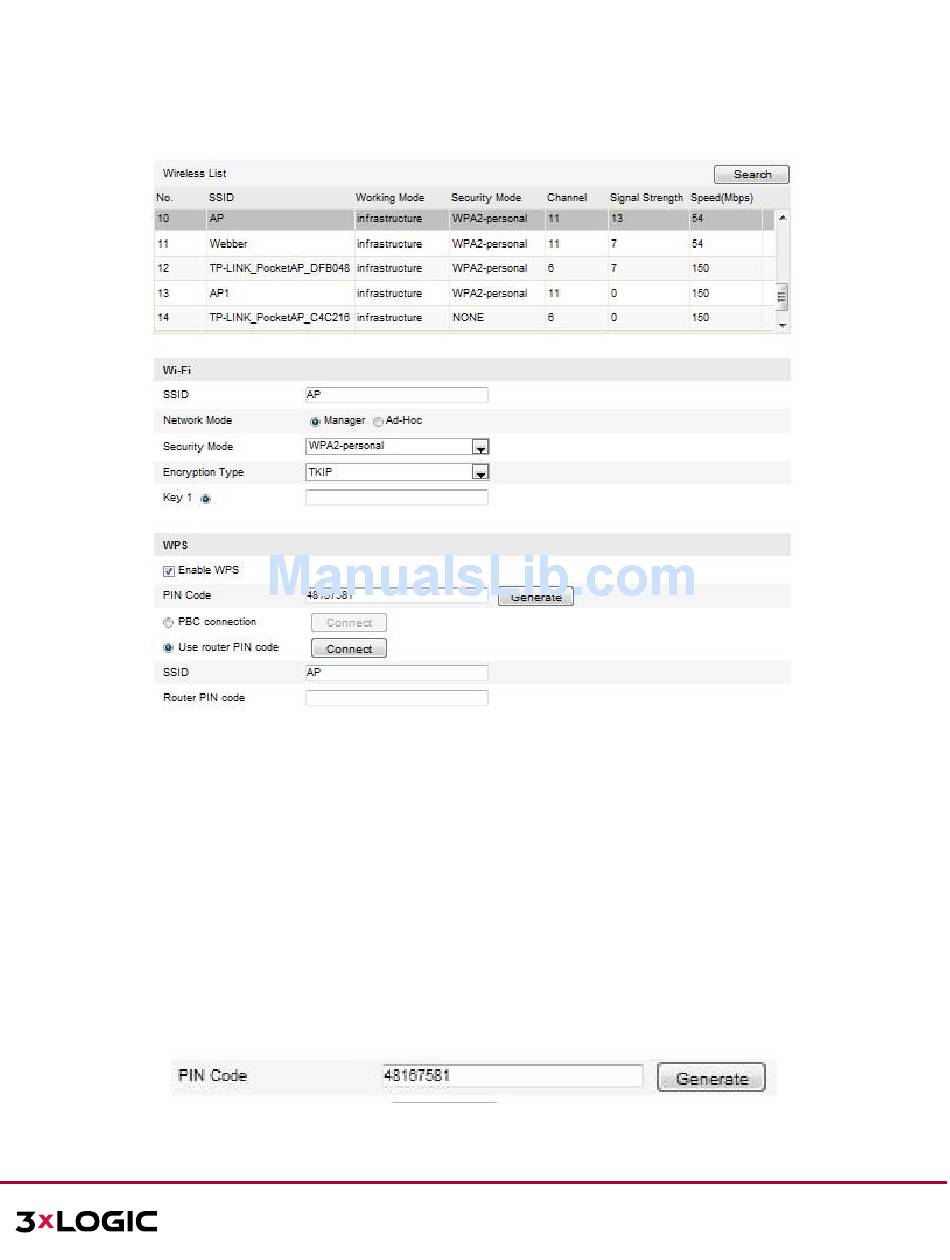

Wi-Fi Settings – WPS PIN Mode
Figure 5-18
2. Choose Use route PIN code. If the PIN code is generated from the router side, you should enter the PIN
code you get from the router side in the Router PIN code field.
3. Click Connect.
Or
You can generate the PIN code on the camera side. And the expired time for the PIN code is 120 seconds.
1. Click Generate.
2. Enter the code to the router, in the example, enter 48167581 to the router.
