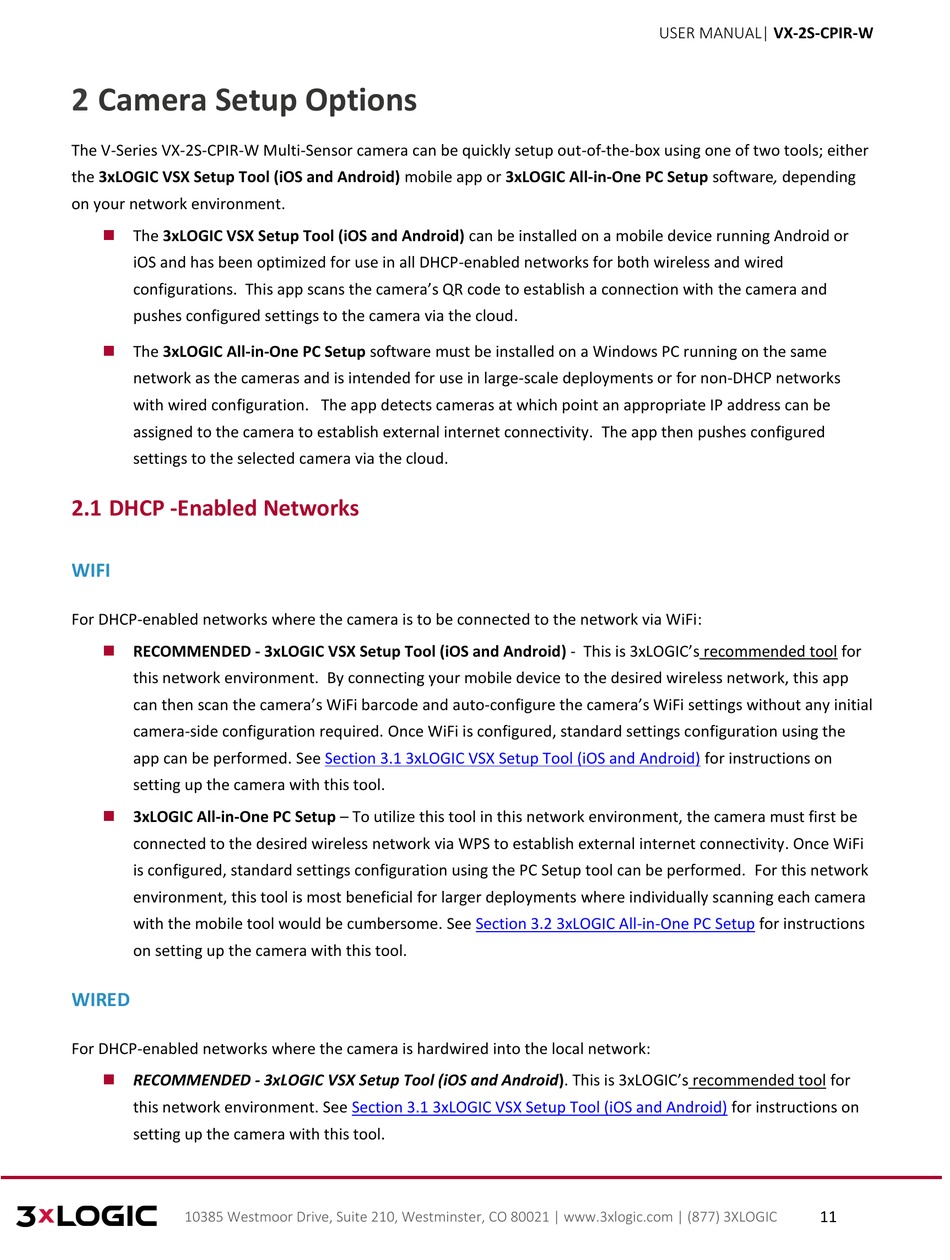

Camera Setup Options

The V-Series VX-2S-CPIR-W Multi-Sensor camera can be quickly setup out-of-the-box using one of two tools; either
the 3xLOGIC VSX Setup Tool (iOS and Android) mobile app or 3xLOGIC All-in-One PC Setup software, depending
on your network environment.

The 3xLOGIC VSX Setup Tool (iOS and Android) can be installed on a mobile device running Android or
iOS and has been optimized for use in all DHCP-enabled networks for both wireless and wired
configurations. This app scans the camera's QR code to establish a connection with the camera and
pushes configured settings to the camera via the cloud.

The 3xLOGIC All-in-One PC Setup software must be installed on a Windows PC running on the same
network as the cameras and is intended for use in large-scale deployments or for non-DHCP networks
with wired configuration. The app detects cameras at which point an appropriate IP address can be
assigned to the camera to establish external internet connectivity. The app then pushes configured
settings to the selected camera via the cloud.

2.1 DHCP -Enabled Networks

WIFI

For DHCP-enabled networks where the camera is to be connected to the network via WiFi:

RECOMMENDED - 3xLOGIC VSX Setup Tool (iOS and Android) - This is 3xLOGIC's recommended tool for
this network environment. By connecting your mobile device to the desired wireless network, this app
can then scan the camera's WiFi barcode and auto-configure the camera's WiFi settings without any initial
camera-side configuration required. Once WiFi is configured, standard settings configuration using the
app can be performed. See
setting up the camera with this tool.

3xLOGIC All-in-One PC Setup – To utilize this tool in this network environment, the camera must first be
connected to the desired wireless network via WPS to establish external internet connectivity. Once WiFi
is configured, standard settings configuration using the PC Setup tool can be performed. For this network
environment, this tool is most beneficial for larger deployments where individually scanning each camera
with the mobile tool would be cumbersome. See
on setting up the camera with this tool.

WIRED

For DHCP-enabled networks where the camera is hardwired into the local network:

RECOMMENDED - 3xLOGIC VSX Setup Tool (iOS and Android). This is 3xLOGIC's recommended tool for
this network environment. See
setting up the camera with this tool.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
Section 3.1 3xLOGIC VSX Setup Tool (iOS and Android)
Section 3.2 3xLOGIC All-in-One PC Setup
Section 3.1 3xLOGIC VSX Setup Tool (iOS and Android)
USER MANUAL| VX-2S-CPIR-W
for instructions on
for instructions
for instructions on
