NOTE: If you already have a certificate installed, the Create Self-signed Certificate is grayed
out.
Create an authorized certificate
a. Select Create the certificate request first and continue the installation as the Installation
Method.
b. Click Create button to create the certificate request. Fill in the required information in the
popup window.
c. Download the certificate request and submit it to the trusted certificate authority for
signature.
d. After receiving the signed valid certificate, import the certificate to the device.
4. There will be the certificate information after successfully creating and installing the certificate.
5. Click the Save button to save the settings.

CONFIGURING QOS SETTINGS

QoS (Quality of Service) can help solve network delay and network congestion by configuring the
priority of data sending. QoS settings can be edited in this tab.
Steps:
1. Enter the QoS Settings interface: Configuration > Network > Advanced Settings > QoS
2. Configure the QoS settings, including Video/Audio DSCP, Event/Alarm DSCP and Management
DSCP. The valid value range of the DSCP is 0 to 63. The bigger the DSCP value is, the higher the
priority is.
NOTE: DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP
header to indicate the priority of the data.
3. Click Save to save the settings.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

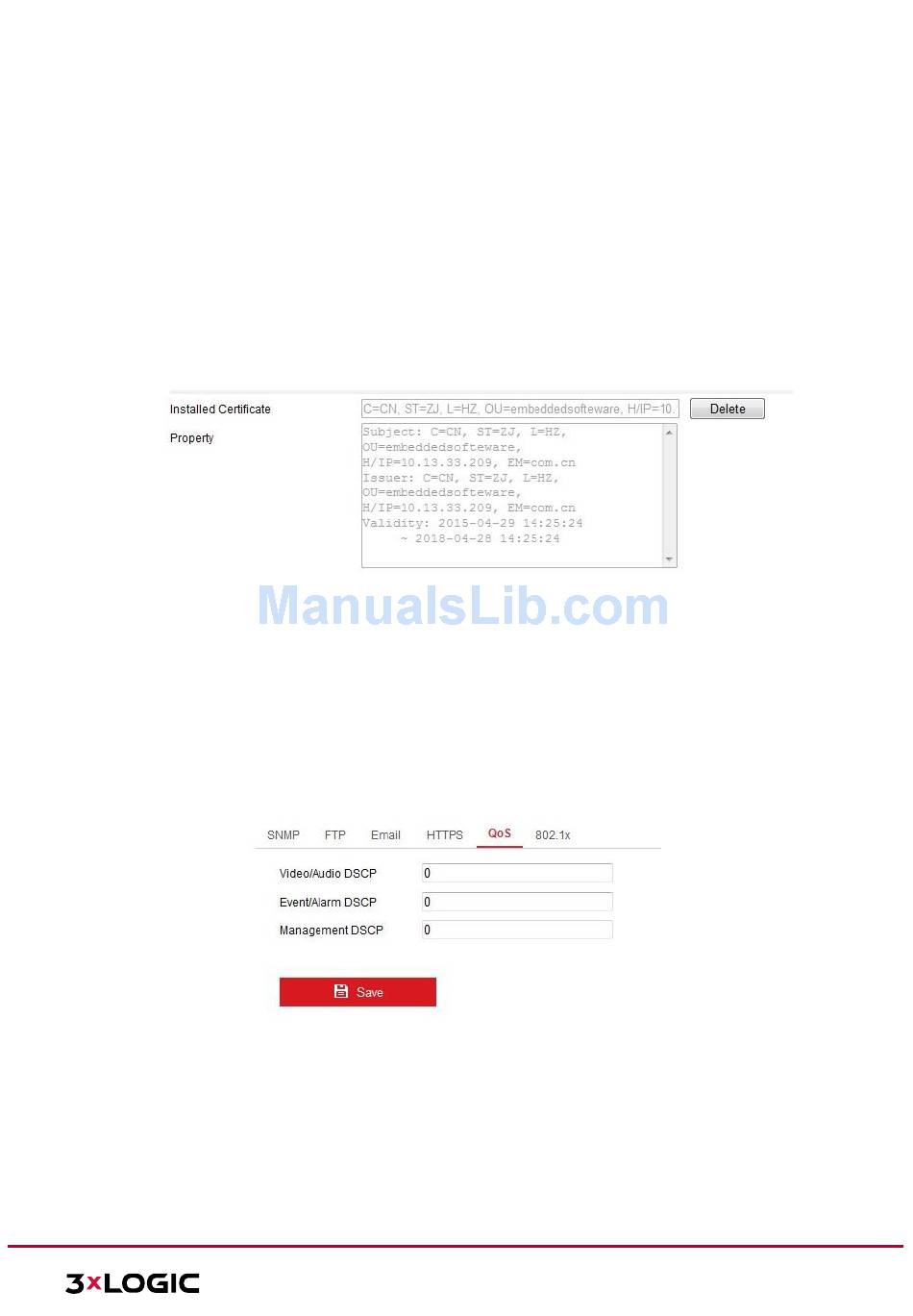

Installed Certificate
Figure 9-14
QoS Settings
Figure 9-15
