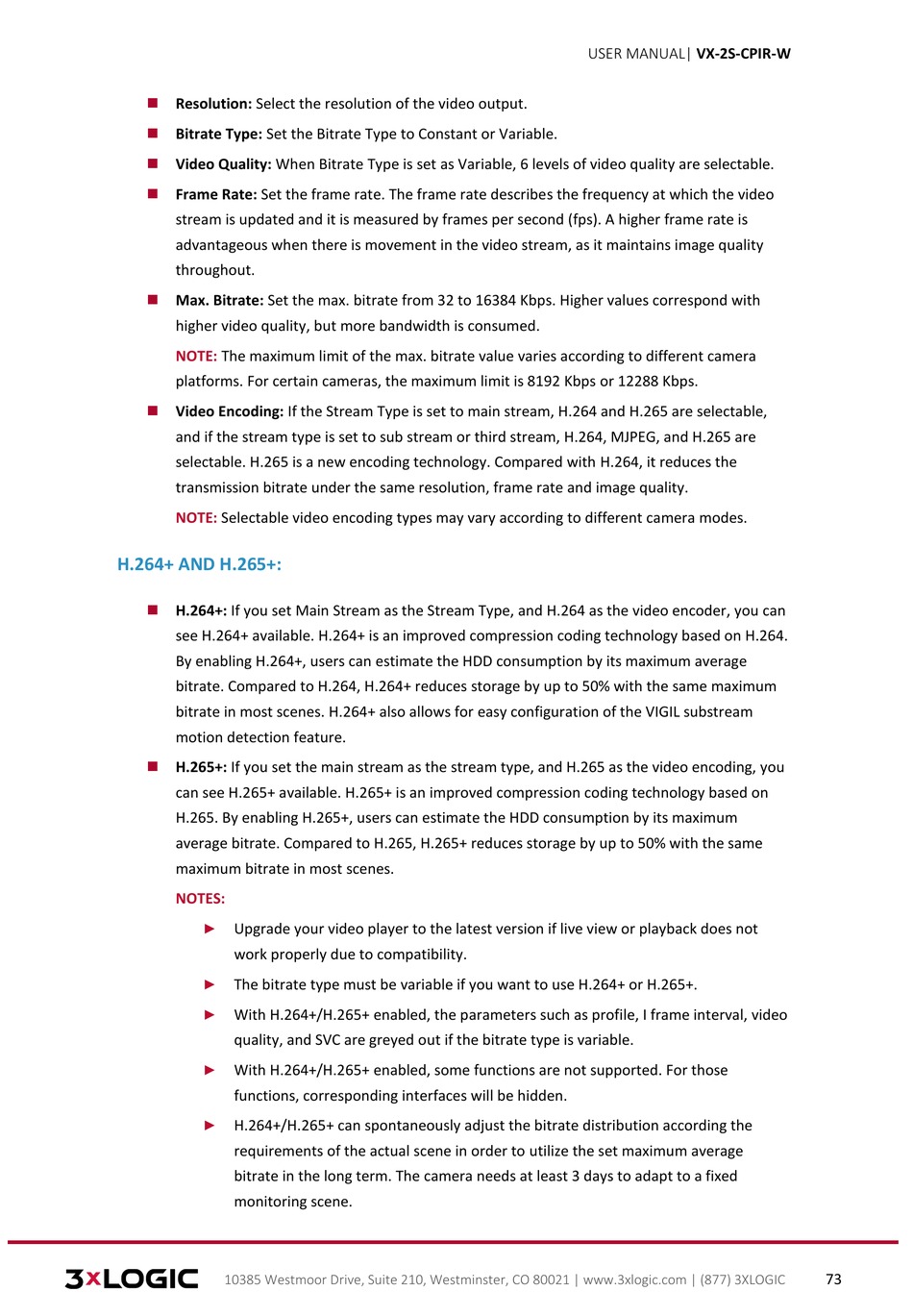

Resolution: Select the resolution of the video output.

Bitrate Type: Set the Bitrate Type to Constant or Variable.

Video Quality: When Bitrate Type is set as Variable, 6 levels of video quality are selectable.

Frame Rate: Set the frame rate. The frame rate describes the frequency at which the video
stream is updated and it is measured by frames per second (fps). A higher frame rate is
advantageous when there is movement in the video stream, as it maintains image quality
throughout.

Max. Bitrate: Set the max. bitrate from 32 to 16384 Kbps. Higher values correspond with
higher video quality, but more bandwidth is consumed.
NOTE: The maximum limit of the max. bitrate value varies according to different camera
platforms. For certain cameras, the maximum limit is 8192 Kbps or 12288 Kbps.

Video Encoding: If the Stream Type is set to main stream, H.264 and H.265 are selectable,
and if the stream type is set to sub stream or third stream, H.264, MJPEG, and H.265 are
selectable. H.265 is a new encoding technology. Compared with H.264, it reduces the
transmission bitrate under the same resolution, frame rate and image quality.
NOTE: Selectable video encoding types may vary according to different camera modes.
H.264+ AND H.265+:

H.264+: If you set Main Stream as the Stream Type, and H.264 as the video encoder, you can
see H.264+ available. H.264+ is an improved compression coding technology based on H.264.
By enabling H.264+, users can estimate the HDD consumption by its maximum average
bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum
bitrate in most scenes. H.264+ also allows for easy configuration of the VIGIL substream
motion detection feature.

H.265+: If you set the main stream as the stream type, and H.265 as the video encoding, you
can see H.265+ available. H.265+ is an improved compression coding technology based on
H.265. By enabling H.265+, users can estimate the HDD consumption by its maximum
average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same
maximum bitrate in most scenes.
NOTES:
►
Upgrade your video player to the latest version if live view or playback does not
work properly due to compatibility.
►
The bitrate type must be variable if you want to use H.264+ or H.265+.
►
With H.264+/H.265+ enabled, the parameters such as profile, I frame interval, video
quality, and SVC are greyed out if the bitrate type is variable.
►
With H.264+/H.265+ enabled, some functions are not supported. For those
functions, corresponding interfaces will be hidden.
►
H.264+/H.265+ can spontaneously adjust the bitrate distribution according the
requirements of the actual scene in order to utilize the set maximum average
bitrate in the long term. The camera needs at least 3 days to adapt to a fixed
monitoring scene.
