Authentication - Select Open or Shared Key System Authentication, depending on the method used by your
access point. Not all access points have this option, in which case they generally use Open System, which is
sometimes known as SSID Authentication.

Key length - This sets the length of the key used for the wireless encryption; 64 or 128 bit. The encryption key
length can sometimes be shown as 40/64 and 104/128.

Key type - The key types available depend on the access point being used. The following options are available:
►
HEX - Allows you to manually enter the hex key.
►
ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and 13 characters for 128-bit
WEP.

WPA-PERSONAL AND WPA2-PERSONAL MODE

Enter the required Pre-Shared Key for the access point, which can be a hexadecimal number or a passphrase.

WPA-PERSONAL WPA- ENTERPRISE AND WPA2-ENTERPRISE MODE:

Choose the type of client/server authentication being used by the access point; EAP-TLS or EAP-PEAP.

EAP-TLS:

Identity - Enter the user ID to present to the network.

Private key password – Enter the password for your user ID.

EAPOL version - Select the version used (1 or 2) in your access point.

CA Certificates - Upload a CA certificate to present to the access point for authentication.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
:

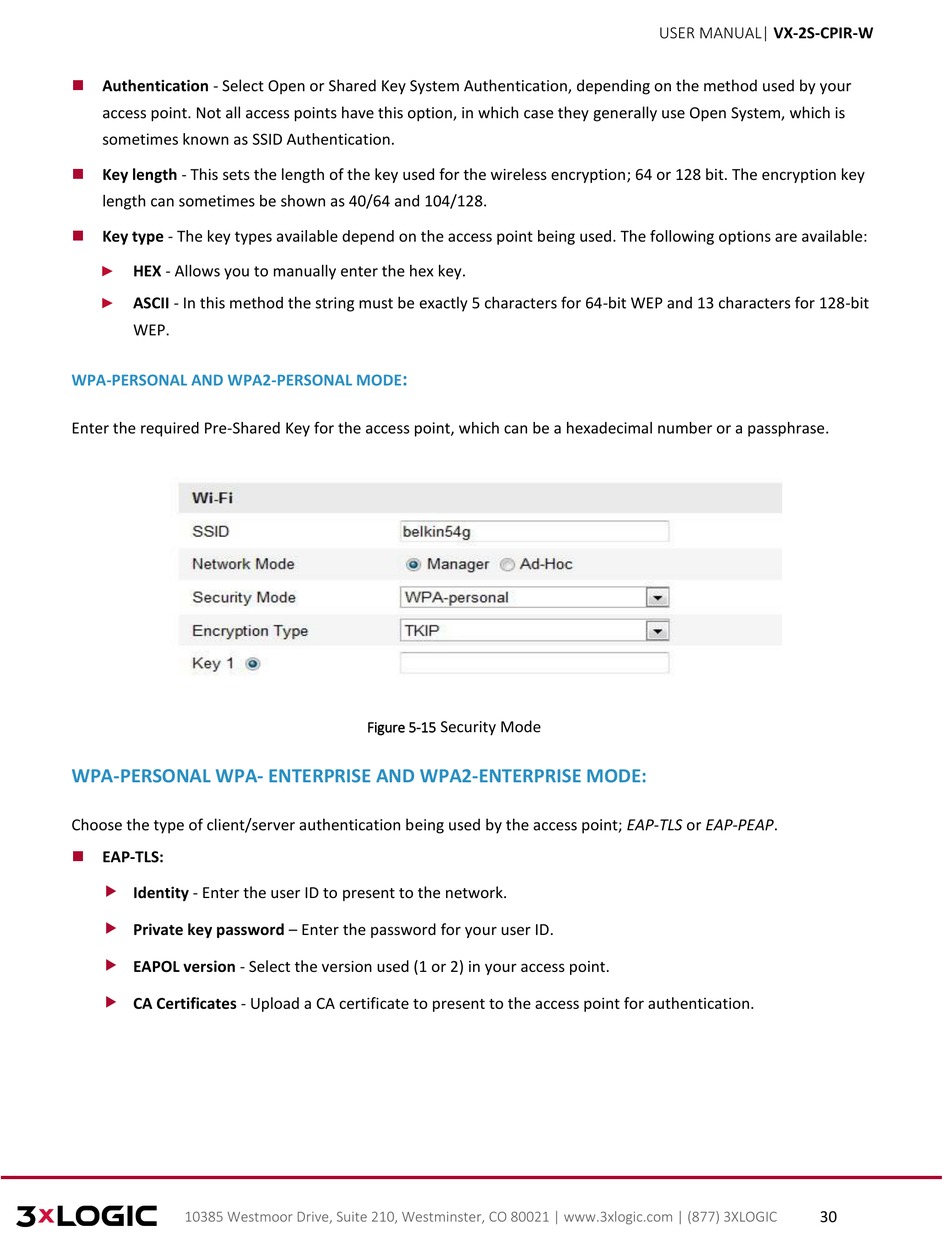

Security Mode
