something of your own choosing (using a minimum of 8 characters, including at least three of the
following categories: upper case letters, lower case letters, numbers and special characters) in
order to increase the security of your product.

Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
4. Click Save to save and exit the interface.
NOTE: A reboot is required for the settings to take effect.

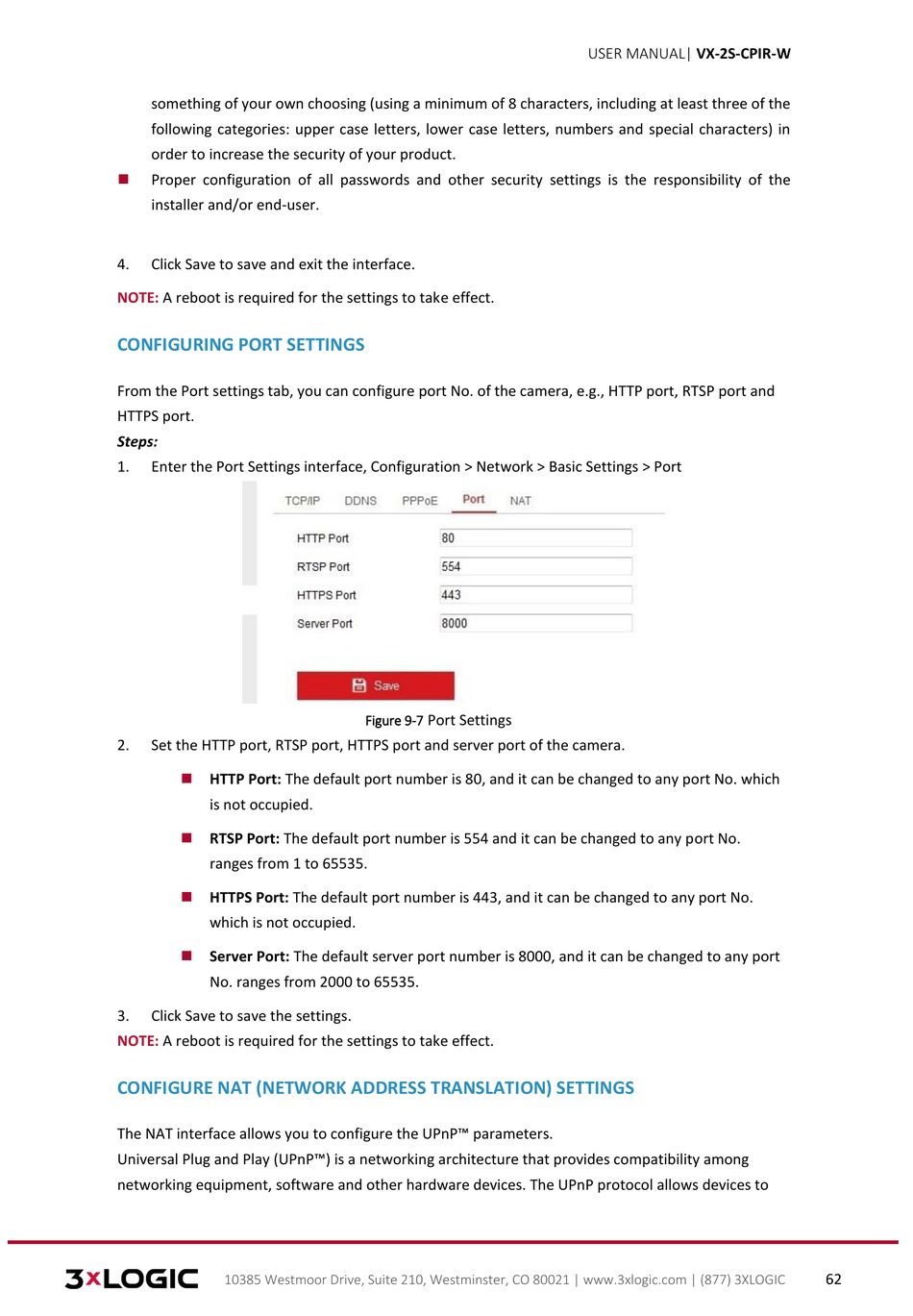

CONFIGURING PORT SETTINGS

From the Port settings tab, you can configure port No. of the camera, e.g., HTTP port, RTSP port and
HTTPS port.
Steps:
1. Enter the Port Settings interface, Configuration > Network > Basic Settings > Port
2. Set the HTTP port, RTSP port, HTTPS port and server port of the camera.

HTTP Port: The default port number is 80, and it can be changed to any port No. which
is not occupied.

RTSP Port: The default port number is 554 and it can be changed to any port No.
ranges from 1 to 65535.

HTTPS Port: The default port number is 443, and it can be changed to any port No.
which is not occupied.

Server Port: The default server port number is 8000, and it can be changed to any port
No. ranges from 2000 to 65535.
3. Click Save to save the settings.
NOTE: A reboot is required for the settings to take effect.

CONFIGURE NAT (NETWORK ADDRESS TRANSLATION) SETTINGS

The NAT interface allows you to configure the UPnP™ parameters.
Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among
networking equipment, software and other hardware devices. The UPnP protocol allows devices to
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
Port Settings
Figure 9-7
