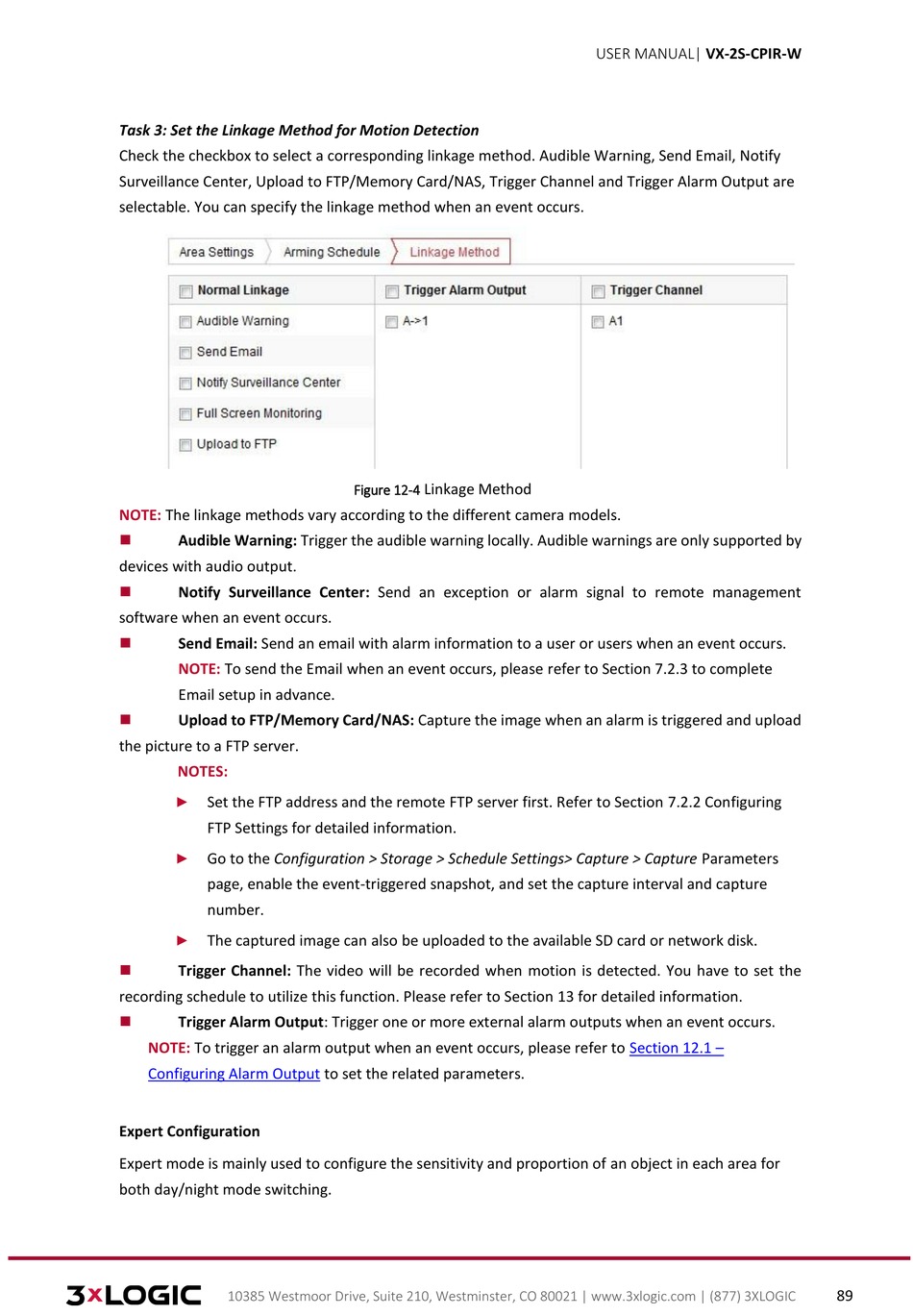

3xLogic VX-2S-CPIR-W User Manual page 89

Task 3: Set the Linkage Method for Motion Detection
Check the checkbox to select a corresponding linkage method. Audible Warning, Send Email, Notify
Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Channel and Trigger Alarm Output are
selectable. You can specify the linkage method when an event occurs.
NOTE: The linkage methods vary according to the different camera models.

Audible Warning: Trigger the audible warning locally. Audible warnings are only supported by
devices with audio output.

Notify Surveillance Center: Send an exception or alarm signal to remote management
software when an event occurs.

Send Email: Send an email with alarm information to a user or users when an event occurs.
NOTE: To send the Email when an event occurs, please refer to Section 7.2.3 to complete
Email setup in advance.

Upload to FTP/Memory Card/NAS: Capture the image when an alarm is triggered and upload
the picture to a FTP server.
NOTES:
►
Set the FTP address and the remote FTP server first. Refer to Section 7.2.2 Configuring
FTP Settings for detailed information.
►
Go to the Configuration > Storage > Schedule Settings> Capture > Capture Parameters
page, enable the event-triggered snapshot, and set the capture interval and capture
number.
►
The captured image can also be uploaded to the available SD card or network disk.

Trigger Channel: The video will be recorded when motion is detected. You have to set the
recording schedule to utilize this function. Please refer to Section 13 for detailed information.

Trigger Alarm Output: Trigger one or more external alarm outputs when an event occurs.
NOTE: To trigger an alarm output when an event occurs, please refer to
Configuring Alarm Output
Expert Configuration
Expert mode is mainly used to configure the sensitivity and proportion of an object in each area for
both day/night mode switching.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
Linkage Method
Figure 12-4
to set the related parameters.
USER MANUAL| VX-2S-CPIR-W
Section 12.1 –
89
