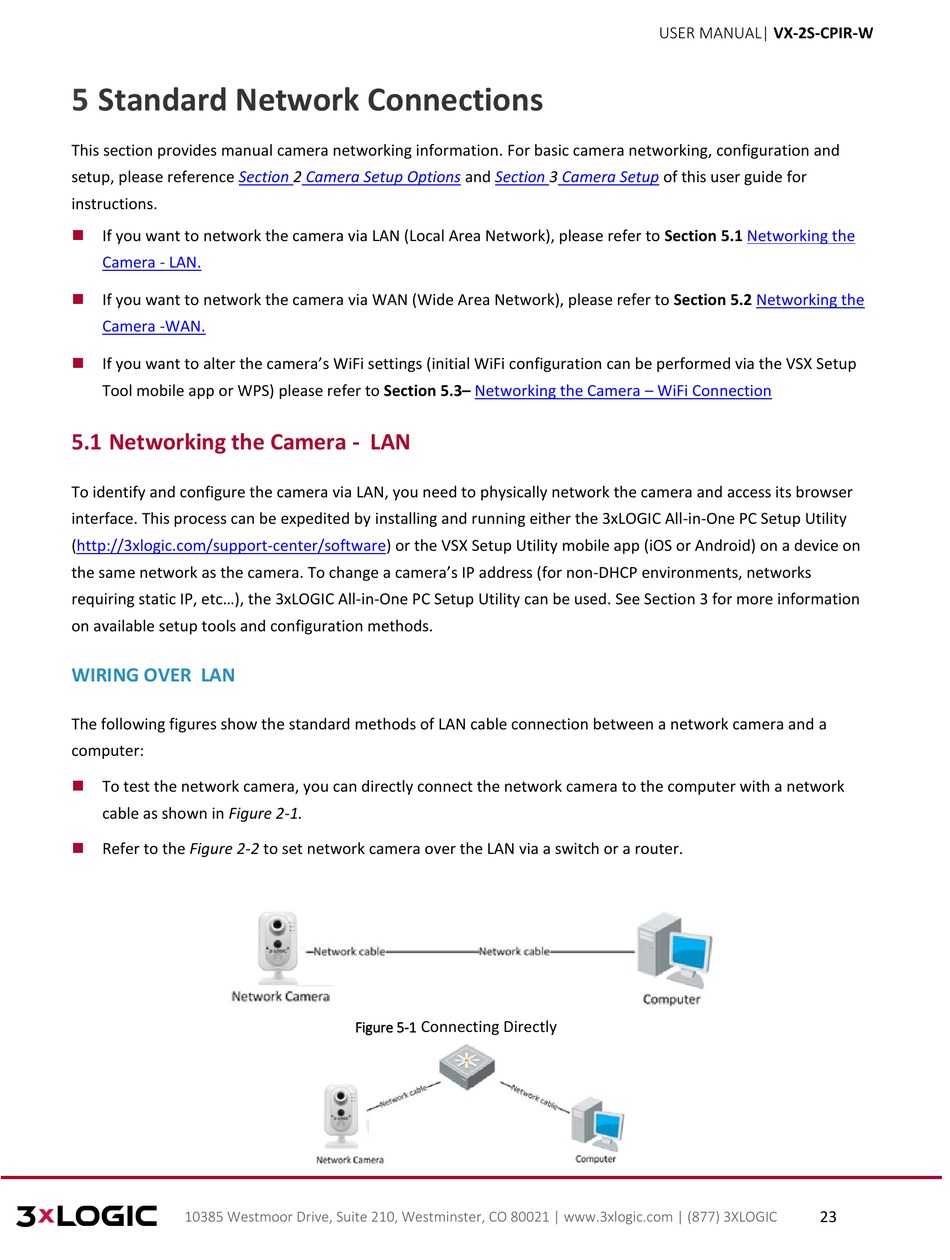

Standard Network Connections

This section provides manual camera networking information. For basic camera networking, configuration and
setup, please reference Section
instructions.

If you want to network the camera via LAN (Local Area Network), please refer to Section 5.1
Camera - LAN.

If you want to network the camera via WAN (Wide Area Network), please refer to Section 5.2
Camera -WAN.

If you want to alter the camera's WiFi settings (initial WiFi configuration can be performed via the VSX Setup
Tool mobile app or WPS) please refer to Section 5.3–

5.1 Networking the Camera - LAN

To identify and configure the camera via LAN, you need to physically network the camera and access its browser
interface. This process can be expedited by installing and running either the 3xLOGIC All-in-One PC Setup Utility
(http://3xlogic.com/support-center/software) or the VSX Setup Utility mobile app (iOS or Android) on a device on
the same network as the camera. To change a camera's IP address (for non-DHCP environments, networks
requiring static IP, etc...), the 3xLOGIC All-in-One PC Setup Utility can be used. See Section 3 for more information
on available setup tools and configuration methods.

WIRING OVER LAN

The following figures show the standard methods of LAN cable connection between a network camera and a
computer:

To test the network camera, you can directly connect the network camera to the computer with a network
cable as shown in Figure 2-1.

Refer to the Figure 2-2 to set network camera over the LAN via a switch or a router.
