PBC refers to Push-Button-Configuration, in which the user simply has to push a button, either an actual or virtual
one (such as the
(and a registrar of the network) and the new wireless client device.
Steps:
1. Check the checkbox of
2. Choose the connection mode as PBC.
NOTE: Support of this mode is mandatory for both the Access Points and the connecting devices.
3. Check the Wi-Fi router to see if there is a WPS button. If yes, push the button. If you can see the
indicator near the button begin to flash, the WPS function of the router is enabled. For detailed
operation, please see your router's user guide.
4. Push the camera's WPS button to enable the function on the camera. Alternatively, you can also click
the virtual button in the camera's web interface to enable the PBC function
5. Click Connect button.
When the PBC mode is both enabled in the router and the camera, the camera and the wireless network is
connected automatically.

PIN MODE

The PIN mode requires a Personal Identification Number (PIN) to be read from either a sticker or the display on the
new wireless device. This PIN must then be entered to connect to the network (usually the Network Access Point).
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

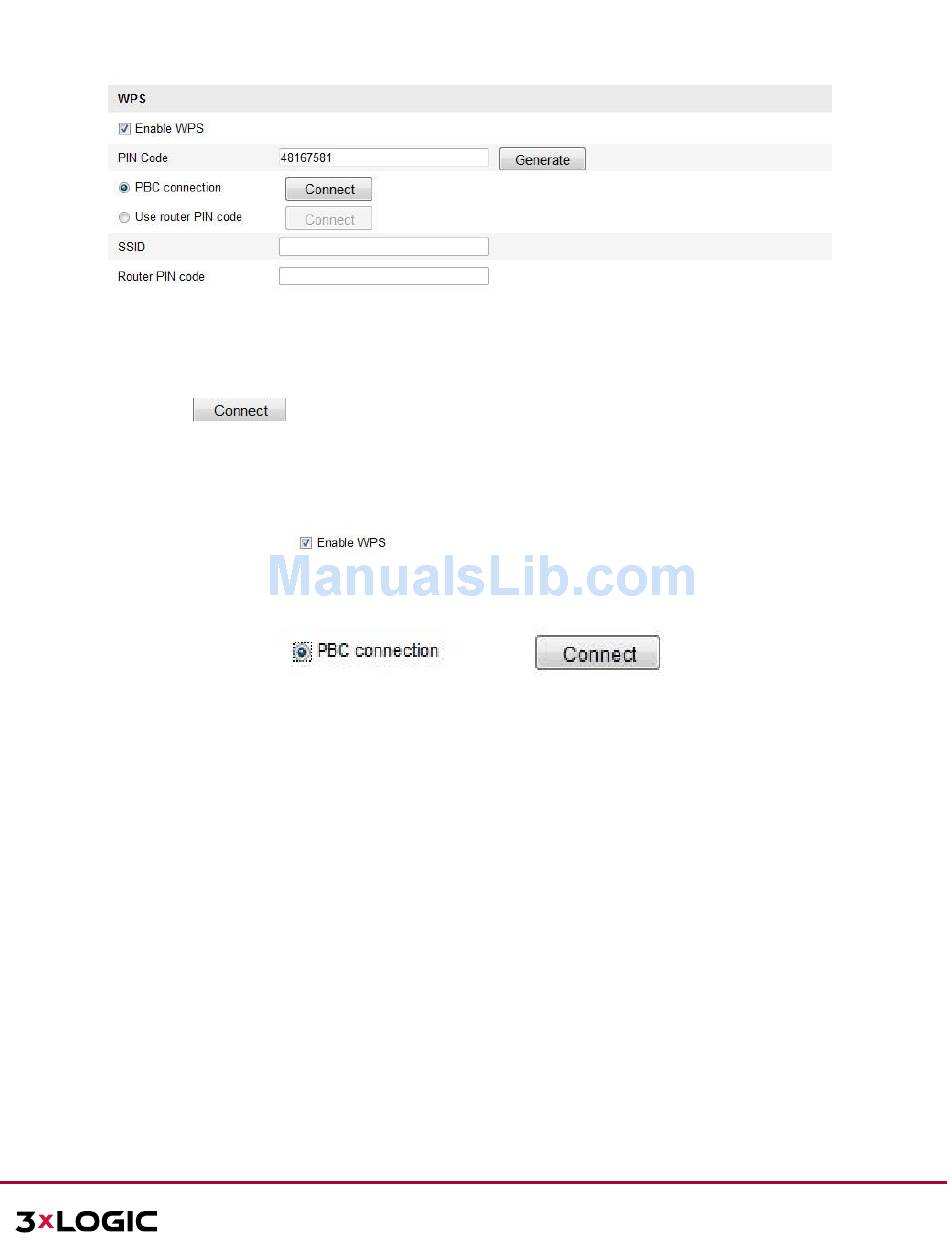

Wi-Fi Settings - WPS PBC Mode:
Figure 5-17
button in the camera's browser interface, pictured above), on both the Access Point
to enable WPS.
