Picture - 3xLogic VX-2S-CPIR-W User Manual

16


Click Picture to enter the picture searching interface. You can search, view, and download pictures/snapshots
stored in the local or network storage.
NOTES:
►
Make sure an HDD, NAS or memory card are properly configured before you initiate the picture
search.
►
Make sure the capture schedule is configured. Go to Configuration > Storage > Schedule Settings >
Capture to set the capture schedule.
Steps:
1. Select the file type from the dropdown list. Continuous, Motion, Alarm, Motion | Alarm, Motion &
Alarm, Line Crossing, Intrusion Detection, and Scene Change Detection are selectable.
2. Select the start time and end time.
3. Click Search to display a list of results.
4. Check off desired snapshots and click Download to download the selected images.
NOTE: Up to 4000 images can be available in the search index simultaneously.
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC

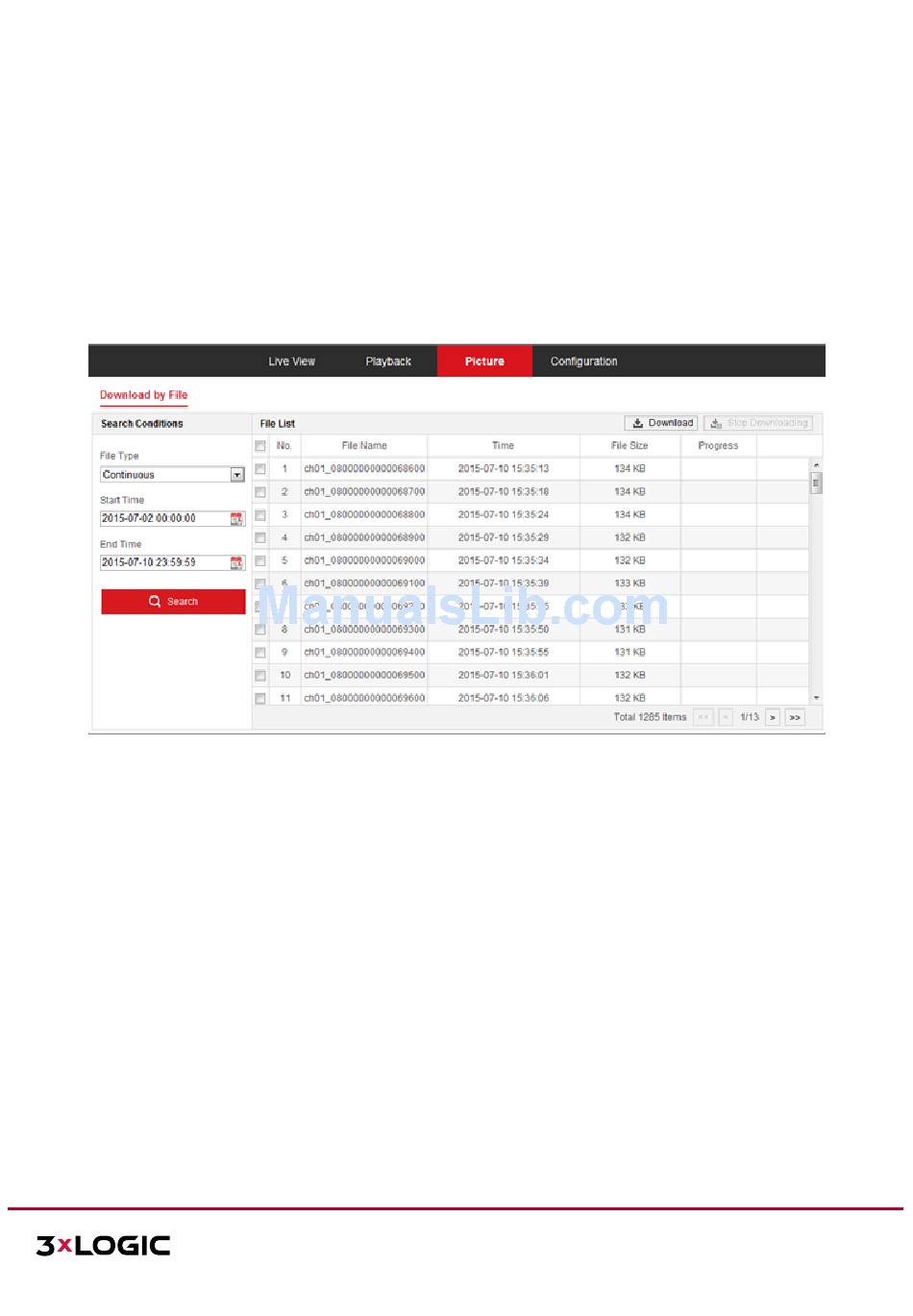

Picture Search Interface
Figure 16-1
