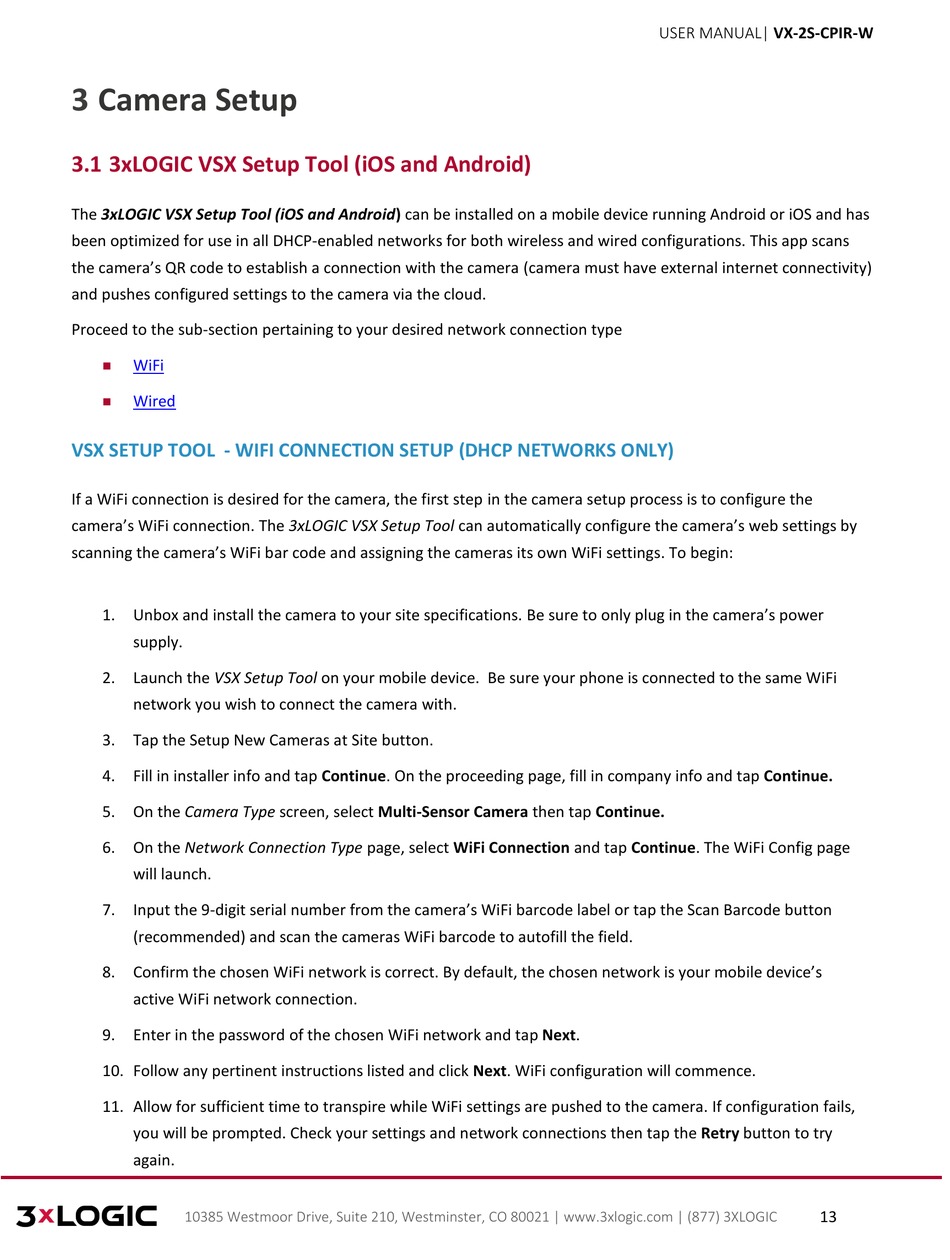

Camera Setup

3.1 3xLOGIC VSX Setup Tool (iOS and Android)
The 3xLOGIC VSX Setup Tool (iOS and Android) can be installed on a mobile device running Android or iOS and has
been optimized for use in all DHCP-enabled networks for both wireless and wired configurations. This app scans
the camera's QR code to establish a connection with the camera (camera must have external internet connectivity)
and pushes configured settings to the camera via the cloud.
Proceed to the sub-section pertaining to your desired network connection type
WiFi

Wired


VSX SETUP TOOL - WIFI CONNECTION SETUP (DHCP NETWORKS ONLY)

If a WiFi connection is desired for the camera, the first step in the camera setup process is to configure the
camera's WiFi connection. The 3xLOGIC VSX Setup Tool can automatically configure the camera's web settings by
scanning the camera's WiFi bar code and assigning the cameras its own WiFi settings. To begin:
1. Unbox and install the camera to your site specifications. Be sure to only plug in the camera's power
supply.
2. Launch the VSX Setup Tool on your mobile device. Be sure your phone is connected to the same WiFi
network you wish to connect the camera with.
3. Tap the Setup New Cameras at Site button.
4. Fill in installer info and tap Continue. On the proceeding page, fill in company info and tap Continue.
5. On the Camera Type screen, select Multi-Sensor Camera then tap Continue.
6. On the Network Connection Type page, select WiFi Connection and tap Continue. The WiFi Config page
will launch.
7. Input the 9-digit serial number from the camera's WiFi barcode label or tap the Scan Barcode button
(recommended) and scan the cameras WiFi barcode to autofill the field.
8. Confirm the chosen WiFi network is correct. By default, the chosen network is your mobile device's
active WiFi network connection.
9. Enter in the password of the chosen WiFi network and tap Next.
10. Follow any pertinent instructions listed and click Next. WiFi configuration will commence.
11. Allow for sufficient time to transpire while WiFi settings are pushed to the camera. If configuration fails,
you will be prompted. Check your settings and network connections then tap the Retry button to try
again.
