3.18.1 M-SCAN

The EB200 contains 1000 definable memory locations. Every memory location contains the essential
receiver parameters such as frequency, modulation method, bandwidth, squelch, antenna number,
attenuation and AFC. In the operation mode Memory Scan the stored and activated channels are
scanned in a periodical way on occupancy . On the busy channels, the ones with a signal being higher
than the current squelch threshold, the search run continues for a definable time. The effective squelch
threshold can generally be set by the squelch potentiometer or loaded during the search run from every
memory location.

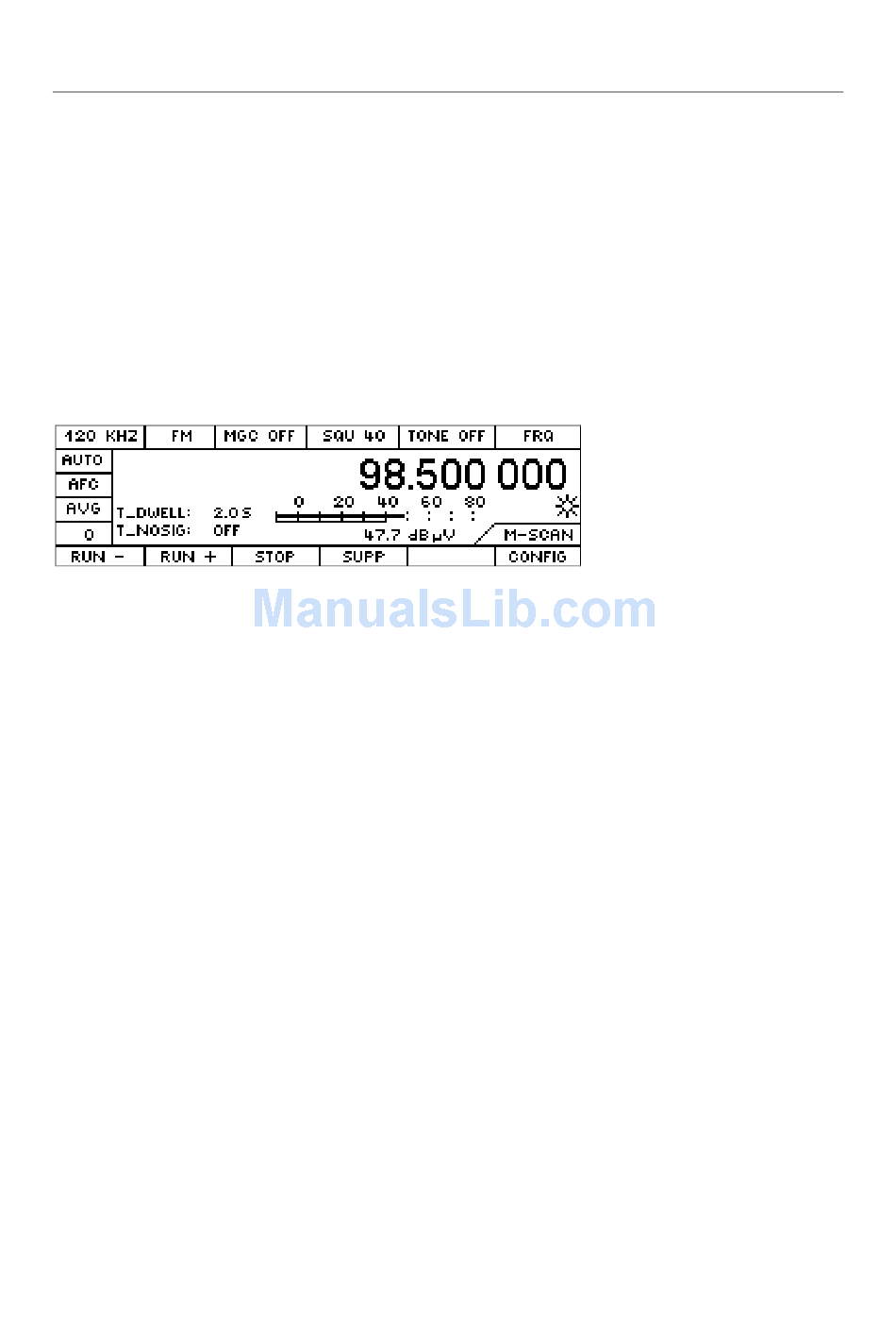

This menu is obtained by pressing the M-SCAN softkey in the MAIN menu.
Softkeys
RUN-: Scan starts from current memory location, decreasing location numbers
RUN+: Scan starts from current memory location, increasing location numbers
Note:
If the current RUN key is in inverse video this tells you that an M-SCAN is being performed.
If the RUN key is pressed and it is in inverse for only a short time then no memory location was set for
this operation.
STOP: stops scan
SUPP: memory location with MEM number is suppressed or skipped
CONFIG: selects the M-SCAN CONFIG configuration menu
